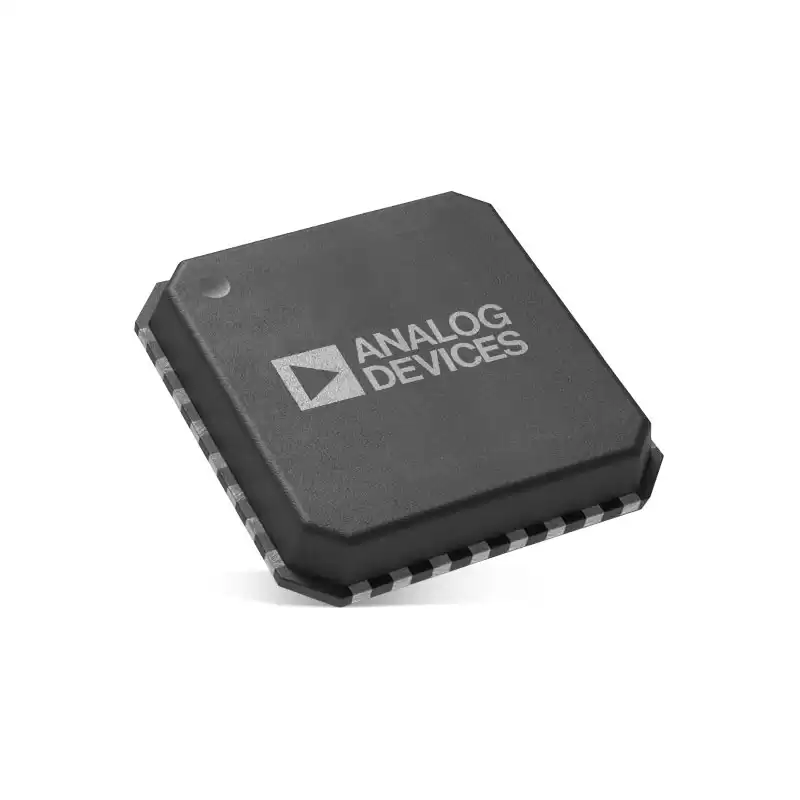

HMC611LP4 ADI RF Detector
Parameter
| Manufacturer |
Analog Devices Inc. |
| Product Category |
RF Detector |
| Series |
HMC611G |
| Mounting Style |
SMD/SMT |
| Package / Case |
QFN-24 |
Maximum Operating Temperature
|
+ 85 C
|
Minimum Operating Temperature
|
- 40 C
|
Packaging
|
Cut Tape
|
Product Type
|
RF Detector
|
Package Quantity
|
500 pcs
|
Subcategory
|
Wireless & RF Integrated Circuits
|
Unit Weight
|
0.032741 oz
|
Introduction
The HMC611LP4 chip offers a fixed gain of 15 dB, making it suitable for amplifying signals in the frequency range from DC to 6 GHz. It provides excellent linearity, low noise figure, and high output power, ensuring precise signal amplification and improved system performance.
This chip features a differential input and single-ended output configuration, allowing for easy integration into RF and microwave systems. It operates with a single positive power supply, typically ranging from 5V to 15V, providing flexibility in system design.
The HMC611LP4 chip incorporates internal bias circuitry, eliminating the need for external components, and simplifying the overall circuit design. It also offers protection features such as ESD (Electrostatic Discharge) protection, ensuring the reliability and robustness of the device.
With its compact LP4 package and industry-standard pinout, the HMC611LP4 chip facilitates ease of integration into various system designs. It is suitable for applications such as wireless infrastructure, test and measurement equipment, radar systems, and communications systems.
Application
The HMC611LP4 chip is widely used in various industries for high-performance signal amplification in RF and microwave applications. It finds applications in wireless infrastructure, test and measurement equipment, radar systems, and communications systems. With its fixed gain of 15 dB and frequency range from DC to 6 GHz, the chip enables precise and efficient amplification of signals. It offers excellent linearity, low noise figure, and high output power, ensuring enhanced system performance. The HMC611LP4 chip's compact LP4 package and industry-standard pinout facilitate easy integration into diverse system designs. Its internal bias circuitry and protection features contribute to its reliability and robustness. It is a trusted solution for industries seeking high-performance signal amplification in demanding RF and microwave applications.
