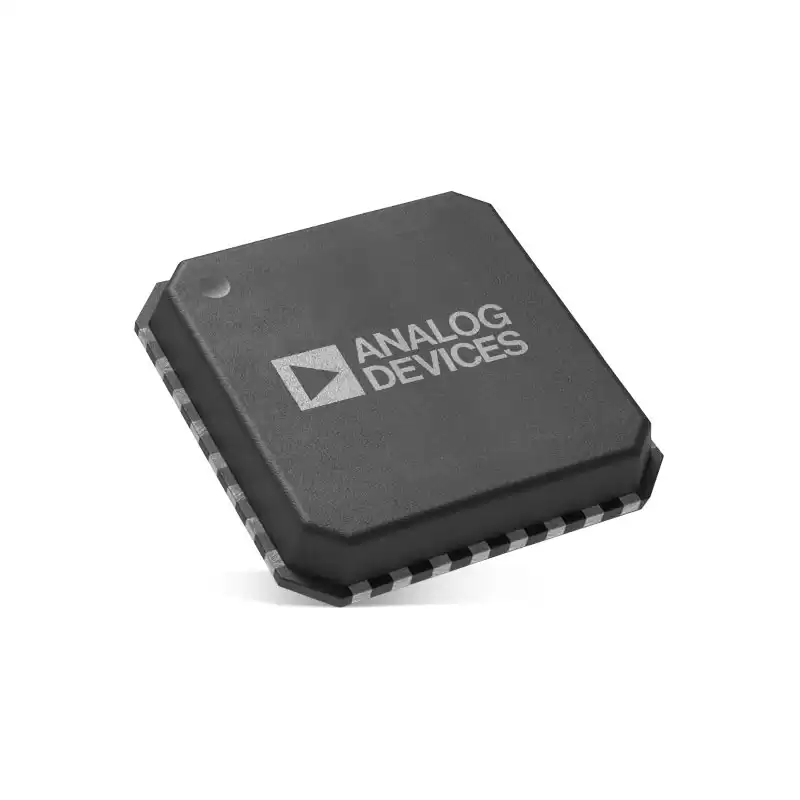

HMC952ALP5GE ADI RF Amplifier
Parameter
| Manufacturer |
Analog Devices Inc. |
| Product Category |
RF Amplifier |
| Series |
HMC952 |
| Mounting Style |
SMD/SMT |
| Operating Frequency |
8 GHz to 14 GHz |
Minimum Operating Temperature
|
-55 C
|
Maximum Operating Temperature
|
+85 C
|
Package Quantity
|
500 pcs
|
Subcategory
|
Wireless & RF Integrated Circuits
|
Unit Weight
|
0.002173 oz
|
Introduction
The HMC952ALP5GE chip offers a wide frequency range and precise frequency synthesis capabilities. It provides low phase noise and excellent frequency stability, making it suitable for applications that require high-quality signal generation.
This chip features an integrated voltage-controlled oscillator (VCO), a phase-locked loop (PLL), and a programmable divider. It allows for frequency synthesis with fine resolution and fast settling time. The chip also includes various output dividers, enabling flexible output frequency options.
The HMC952ALP5GE chip operates with a single positive power supply, typically ranging from 3.3V to 5V. It incorporates internal bias circuitry and requires minimal external components, simplifying the overall circuit design.
Application
The HMC952ALP5GE chip is widely used in various industries for precise frequency synthesis in RF and microwave applications. It finds applications in wireless infrastructure, test and measurement equipment, radar systems, and communications systems. With its low phase noise, excellent frequency stability, and fine resolution frequency synthesis capabilities, the chip enables high-quality signal generation. Its integrated VCO, PLL, and programmable divider provide flexibility and fast settling time. The HMC952ALP5GE chip operates with a single power supply, simplifying system design. Its compact LP5GE package and industry-standard pinout facilitate easy integration into diverse system designs. It is a trusted solution for industries seeking precise frequency synthesis in demanding RF and microwave applications.
