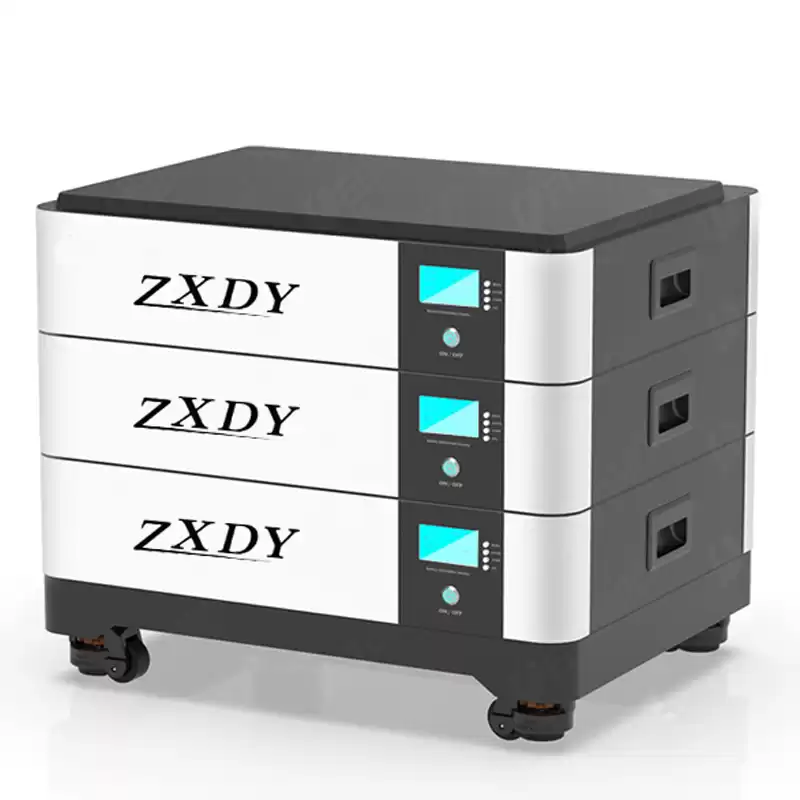

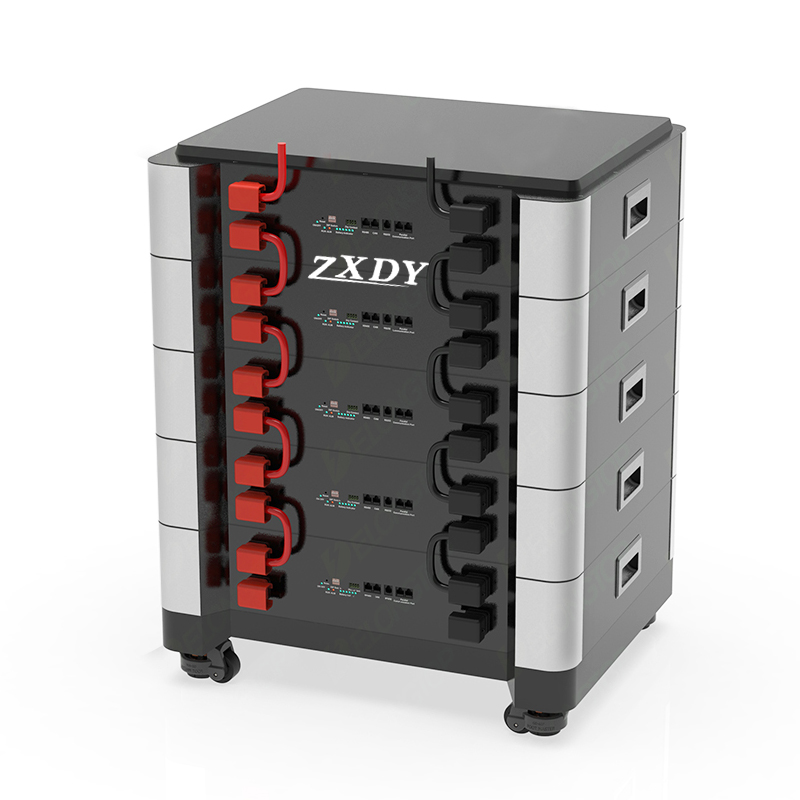

Home energy storage 15kwh 20kwh 30kwh battery off grid power storage system
Our household energy storage battery system has multiple BMS functions, allowing better control and monitoring of the expandable battery pack; BMS is compatible with growatt, goodwill, luxpower, Deye, victron and student
|
Product model
|
LFP48-600
|
|
Product specification
|
48 V 600Ah
|
|
Nominal voltage
|
48 V
|
|
Nominal capacity
|
600 Ah
|
|
Cell type
|
LFP
|
|
Battery energy (KWH)
|
28.8kwh
|
|
Max charge current
|
100A
|
|
BMS
|
Built-in BMS
|
|
Max discharge current
|
200 A
|
|
Display
|
LCD(Optional)
|
|
Communication interface
|
RS485、RS232、CAN(Optional)
|
|
Cycle life
|
≥6000 times(80%DOD)
|
|
Operation Voltage
|
(-20～60)℃
|
|
Charge Voltage
|
54.7V
|
|
Colour
|
White/Black and white(Optional)
|
|
Dimensions
|
(650x510x1120)mm
|
|
Weight
|
≈250 kg
|
|
Installation method
|
Floor type
|

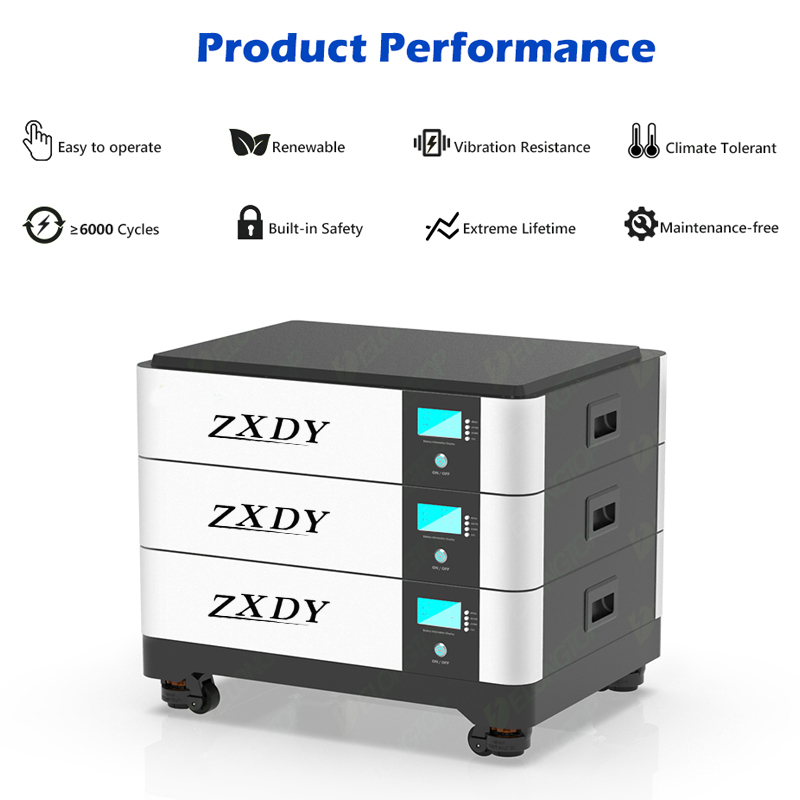

characteristic:
● 48V lithium battery module
● up to 6000 cycles
● it has the function of over charging and over discharging protection
● it has overcurrent and short-circuit protection functions
● it has the function of over temperature protection
● application of off grid solar power generation system
● excellent standby self consumption
● built in intelligent BMS to ensure that the battery is always in the best state

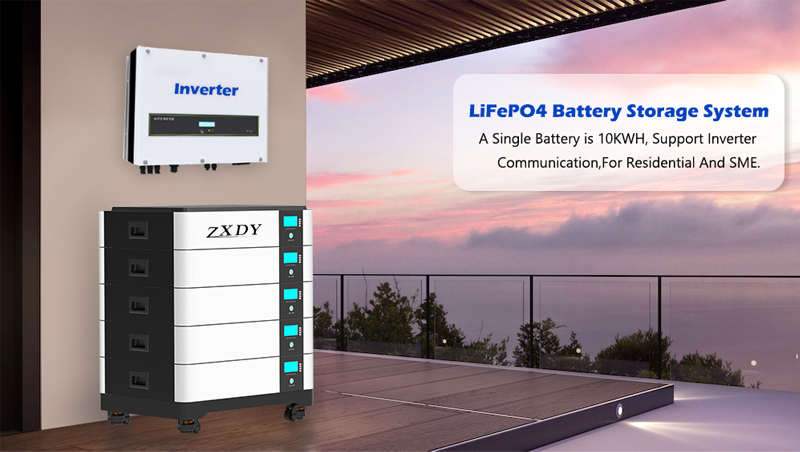

Lifepo4 Battery Storage System

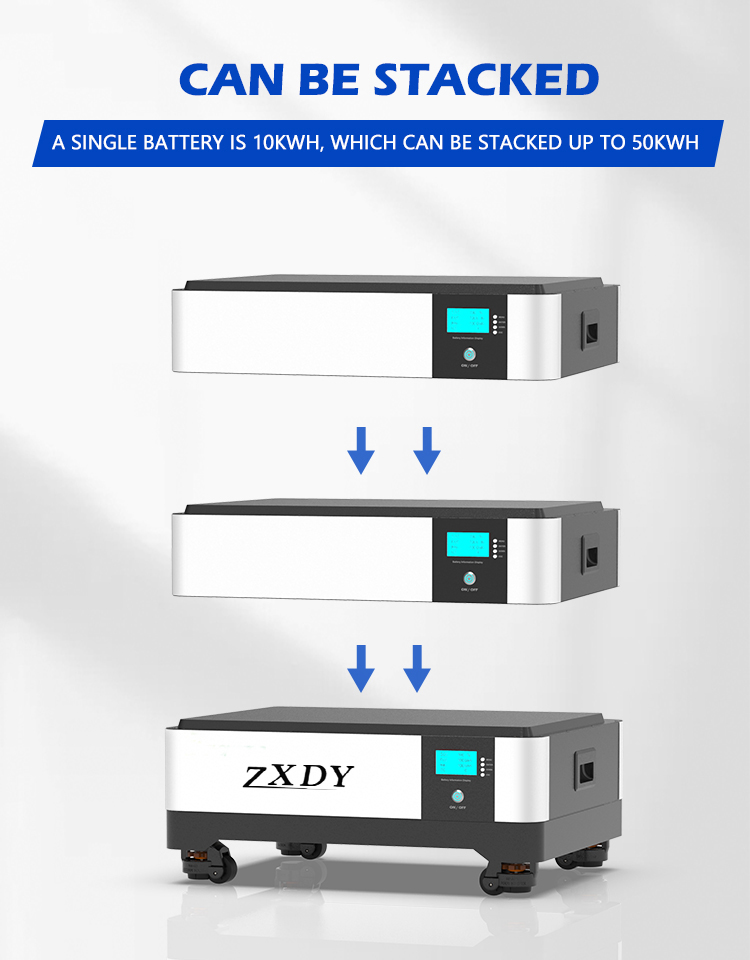

A Single Battery is 10KWH, Support InverterCommunication. For Residential And sme

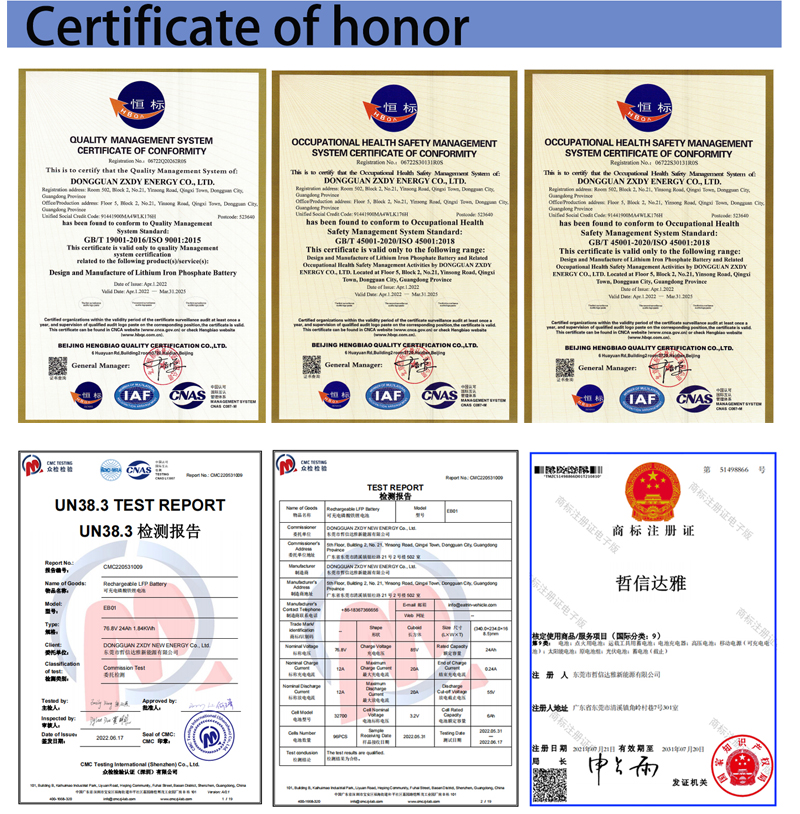

In order to provide more efficient and cost-effective lifepo4 ess home energy storage system to meet customers' growing power demand and high quality requirements, we have passed the following certification:
1. GB / T 45001-2020 / ISO 45001 06722s30131r0s 2018 occupational health and safety management system.
2. GB / T 24001-2016 / ISO 14001r 2015 environmental management system 06722e20137r0s.
3. GB / T 19001-2016 / ISO 90012015 quality management system 06722q20262r0s.
4. UN38.3 rechargeable lithium iron phosphate battery cmc220531009.
5. MSDS rechargeable lithium iron phosphate battery cmc220531009m01.
6. Dangerous goods transportation certificate: rechargeable lithium iron phosphate battery seksz202206265622wx83001.
