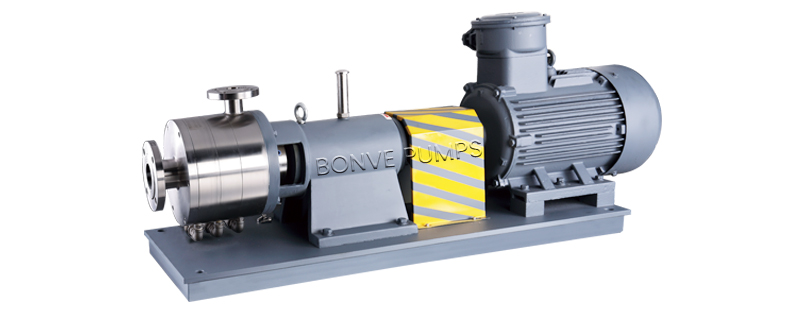

EMULSIFYING AND HOMOGENIZING SHEAR PUMP
Product introduction
Bonve emulsifying and homogenizing shear pump is an efficient
type machine with mixing, dispersion, breaking, dissolution, refinery,
homogenization, emulsifying and pumping. The machine can greatly simplify the
traditional productions and upgrade the production efficiency and product
quality.
It is widely used in petrochemical, refinery chemistry,
consumer chemicals, biology pharmaceutics, foods processing, paper-making,
environmental protection, pain and so on.
Application for
tomato ketchup
Tomato ketchup is a dipping sauce made by mixing concentrated
tomato paste with water, sugar, vinegar, salt and other seasonings. Which
requires the homogenizer is capable of dispersing powdered ingredients into
water to form an agglomerate-free product and dispersing the tomato paste.
Where a Bonve homogenizer is used, not only the high shear mixing action will
improve pre-mix quality and consistency, but also a homogenous mixture is
rapidly obtained.
Working Principle

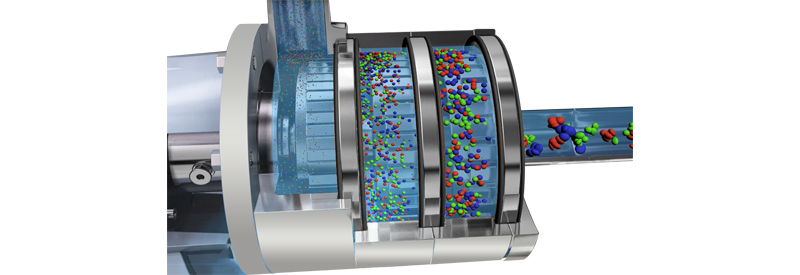

The main parts are stators and rotors. At centrifugal and fluid
forces created by high running of the rotors, the stators exercise on the
materials with strong power shearing, centrifugal pressing, breaking, fluid
friction, turbulent. The processed materials (solid, fluid and gas phase) are
quickly refined, homogenized, dis-aggregated and emulsified. The repeat of this
process can result in stable and high-quality products.
Product line: FHM1 and FHM3 series
Bonve emulsifying and homogenizing shear pumps are mainly
devided into 2 series based on different numbers of rotor and stator, working
types. (The pump with 2-stage rotor and stage can be made too)

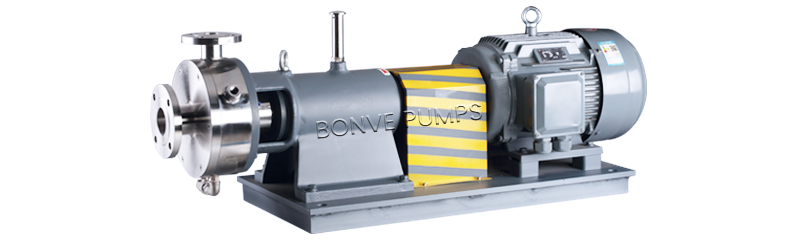

FHM1 series with
single stage rotor and stator
FHM1 series is equipped with one set multi-layer stator and
rotor. Required to be used in the cyclic processing of medium and small batch
production. For short distance transmission, homogeneous and emulsion.

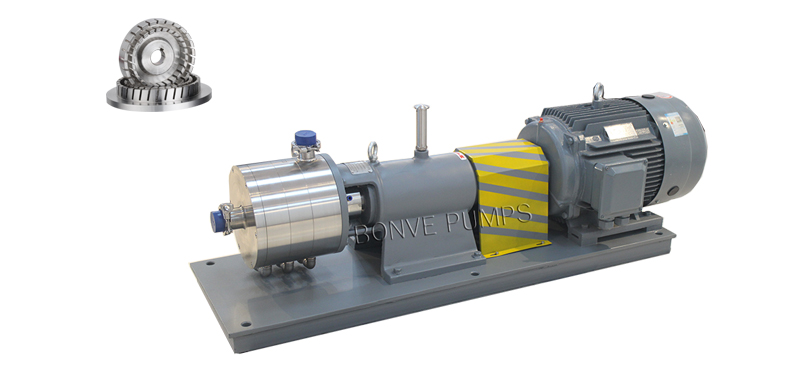

FHM3 series with three stage rotors and stators
FHM3 series is an extension of the FHM1 series. The working
chamber is composed of three-stage rotor and stator. For applications that
require greater and quicker homogenizing and emulsifying, FHM3 is used. It can
be used in the cyclic processing of medium and large-scale production.
Main technical parameters: FHM1
|
Model
|
Electrical Power
(kW)
|
Rotation Speed
(r/min)
|
Capacity
(m3/h)
|
Discharge pressure
(Mpa)
|
Diameter of inlet/outlet
|
|
FHM1/165
|
7.5/11
|
2900
|
0-10
|
0.15
|
DN50/40
|
|
FHM1/185
|
11/15
|
2900
|
0-15
|
0.15
|
DN65/50
|
|
FHM1/200
|
15/18.5
|
2900
|
0-20
|
0.15
|
DN80/65
|
|
FHM1/220
|
22/30
|
2900
|
0-30
|
0.15
|
DN80/65
|
|
FHM1/240
|
30/37
|
2900
|
0-50
|
0.20
|
DN100/80
|
|
FHM1/260
|
37/45
|
2900
|
0-60
|
0.20
|
DN125/100
|
|
FHM1/300
|
45/75
|
2900
|
0-80
|
0.25
|
DN125/100
|
Remarks:
1. Above dates are tested by water. For product with poor
liquidity or require a higher discharge pressure, Bonve lobe pump is advised to
be installed before the homogenizer for transferring.
2. Port size can be changed as needed. Flange connection as
starndard, clamp and thread as optional.
3. Motor matched is normal type with 3ph/380V/50Hz as standard.
4. MOC: SS316 as standard, SS304, 316L and others as
optional. 150°C (302°F) anti-heat seal.
5. Bonve reserves the right to change specifications without
prior notification.
Main technical parameters: FHM3
|
Model
|
Electrical Power
(Kw)
|
Rotation Speed
(r/min)
|
Flow rate
(m3/h)
|
Discharge
pressure
(Mpa)
|
Diameter of
inlet/outlet
|
|
FHM3/165
|
18.5
|
2900
|
0-10
|
0.30
|
DN50/40
|
|
FHM3/185
|
30
|
2900
|
0-20
|
0.30
|
DN65/50
|
|
FHM3/200
|
45
|
2900
|
0-30
|
0.30
|
DN80/65
|
|
FHM3/220
|
55
|
2900
|
0-40
|
0.30
|
DN80/65
|
|
FHM3/240
|
90
|
2900
|
0-60
|
0.30
|
DN100/80
|
|
FHM3/260
|
132
|
2900
|
0-100
|
0.30
|
DN125/100
|
|
FHM3/300
|
160
|
1400
|
0-120
|
0.30
|
DN150/125
|
Remarks:
1. Above dates are tested by water. For product with poor
liquidity or require a higher discharge pressure, Bonve lobe pump is advised to
be installed before the homogenizer for transferring.
2. Port size can be changed as needed. Flange connection as
starndard, clamp and thread as optional.
3. Motor matched is Siemens, ABB or equivalent brand. Normal
type with 3ph/380V/50Hz as standard.
4. MOC: SS316 as standard, SS304, 316L and others as
optional. 150°C (302°F) anti-heat seal.
5. Bonve reserves the right to change specifications without
prior notification.
Applications
Working process
For various processes, different equipment is used to match and
optimize the combination, so that the system
achieves the best working effect. The common process flow
diagram is as follows:
Selection Guideline
|
Your
industry/application
|
|
|
Processed medium’s name
|
|
|
Medium’s feature
|
Sanitary ( ) Corrosive ( ) Poisonous ( )
|
|
Medium’s proportion
|
Liquid % ____ Density____ Viscosity____ PH value____
Solid % ____ Solid size ___
|
|
Processing requirement
|
Mixing dissolving ( ) Dispersed
suspension ( )
Emulsification ( ) Homogeneity ( )
Reaction ( ) Powder liquid mixing ( )
|
|
Working type
|
Continuous circulation
work ( ) Continuous non-circulation work ( )
Batch type ( )
|
|
Working temperature
|
|
|
Particle size
|
Before processing
_______
After processing ________
|
|
Handling capacity required
|
|
|
Delivery head/pressure required
|
|
|
Vessel’s dimension
|
|
|
Existing pipe size and connection type
|
|
|
The existing process equipment and the
existing problems
|
|
