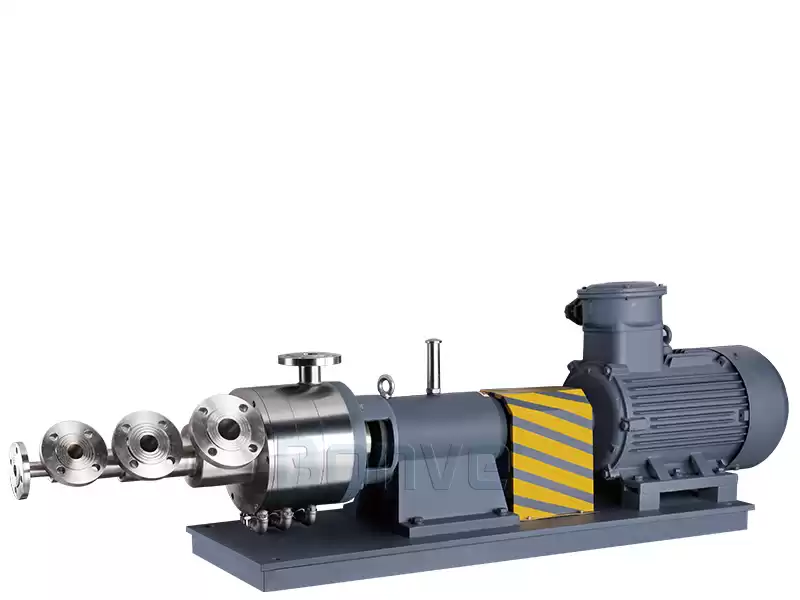

Homogenizer Mixing Pump for Soap Neutralization
In the soap base production process, liquid caustic soda, fatty acid, and water need to be fully mixed, dispersed, and homogenized. The traditional process is realized by high-speed stirring and circulation, which takes a long time and does not have a good effect. Bonve offers its FHM/C series homogenizer mixing pump for soap neutralization. Acid, alkali, and water enter the pump cavity from their respective nozzles at the same time according to the ratio, realizing online mixing and homogenization. Bonve homogenizer mixing pump is an efficient type machine with mixing, dispersion, breaking, dissolution, refinery, homogenization, emulsifying and pumping. The machine can greatly simplify the traditional productions and upgrade the production efficiency and product quality.
How homogenizer mixing pump works?

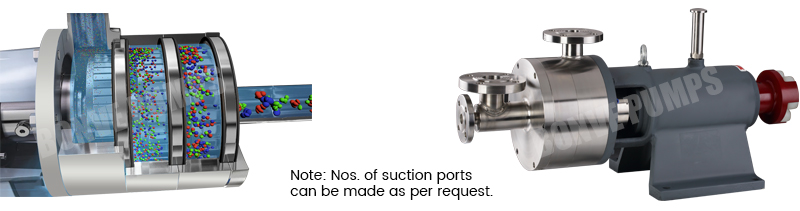

FHM-C consists of multi-pipe compound chambers and mixing chamber. The mixing chamber can be single-stage, two-stage or three-stage. Each chamber comprises 2-5 layers of stators and rotors. The gear clearance of each layer stator and rotor is from wide to slender, suck different raw material to compound and homogenize instantaneously according to rate requirement.
Working principle
The main parts are stators and rotors. At centrifugal and fluid forces created by high running of the rotors, the stators exercise on the materials with strong power shearing, centrifugal pressing, breaking, fluid friction, turbulent. The processed materials (solid, fluid and gas phase) are quickly refined, homogenized, dis-aggregated and emulsified. The repeat of this process can result in stable and high-quality products.
Main technical parameters
FHM1/C series has one stage rotor and stator
|
Model
|
Electrical Power
(kW)
|
Rotation Speed
(r/min)
|
Capacity
(m3/h)
|
Discharge pressure
(Mpa)
|
Diameter of inlet/outlet
|
|
FHM1/C/165
|
7.5/11
|
2900
|
0-10
|
0.15
|
DN50/40
|
|
FHM1/C/185
|
11/15
|
2900
|
0-15
|
0.15
|
DN65/50
|
|
FHM1/C/200
|
15/18.5
|
2900
|
0-20
|
0.15
|
DN80/65
|
|
FHM1/C/220
|
22/30
|
2900
|
0-30
|
0.15
|
DN80/65
|
|
FHM1/C/240
|
30/37
|
2900
|
0-50
|
0.20
|
DN100/80
|
|
FHM1/C/260
|
37/45
|
2900
|
0-60
|
0.20
|
DN125/100
|
|
FHM1/C/300
|
45/75
|
2900
|
0-80
|
0.25
|
DN125/100
|
FHM3/C series has stage stage rotors and stators
|
Model
|
Electrical Power
(Kw)
|
Rotation Speed
(r/min)
|
Flow rate
(m3/h)
|
Discharge pressure
(Mpa)
|
Diameter of inlet/outlet
|
|
FHM3/C/165
|
18.5
|
2900
|
0-10
|
0.30
|
DN50/40
|
|
FHM3/C/185
|
30
|
2900
|
0-20
|
0.30
|
DN65/50
|
|
FHM3/C/200
|
45
|
2900
|
0-30
|
0.30
|
DN80/65
|
|
FHM3/C/220
|
55
|
2900
|
0-40
|
0.30
|
DN80/65
|
|
FHM3/C/240
|
90
|
2900
|
0-60
|
0.30
|
DN100/80
|
|
FHM3/C/260
|
132
|
2900
|
0-100
|
0.30
|
DN125/100
|
|
FHM3/C/300
|
160
|
1400
|
0-120
|
0.30
|
DN150/125
|
Remarks:
1. Above dates are tested by water. For product with poor liquidity or require a higher discharge pressure, Bonve lobe pump is advised to be installed before the homogenizer for transferring.
2. Port size can be changed as needed. Flange connection as starndard, clamp and thread as optional.
3. Motor matched is Siemens, ABB or equivalent brand. Normal type with 3ph/380V/50Hz as standard.
4. MOC: SS316 as standard, SS304, 316L and others as optional. 150°C (302°F) anti-heat seal.
5. Bonve reserves the right to change specifications without prior notification.

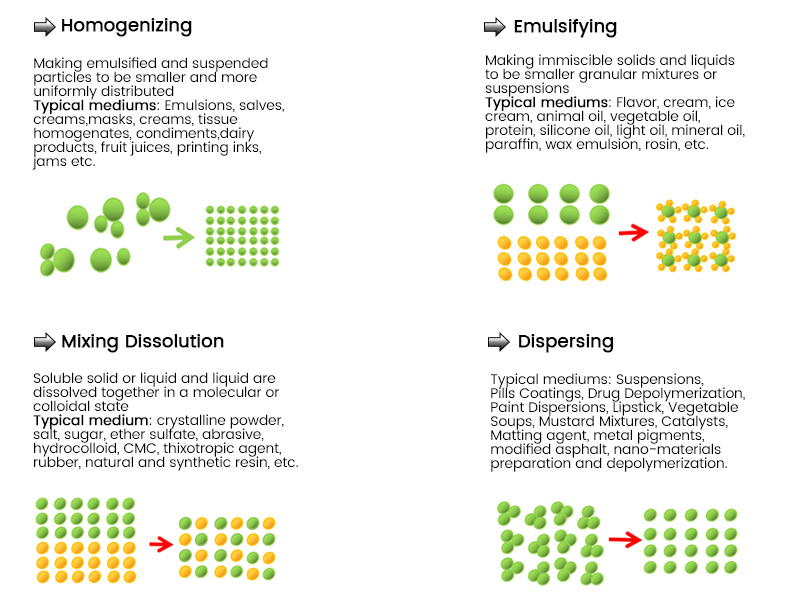

Applications
Working process
For various processes, different equipment is used to match and optimize the combination, so that the system achieves the best working effect. The common process flow diagram is as follows:
Selection Guideline
Medium’s proportion
|
Liquid % ____ Density____ Viscosity____ PH value____
Liquid % ____ Density____ Viscosity____ PH value____
Liquid % ____ Density____ Viscosity____ PH value____
Liquid % ____ Density____ Viscosity____ PH value____
Mixture: ____ Density____ Viscosity____ PH value____
|
|
Working temperature
|
|
|
Particle size
|
Before processing _______
After processing _______
|
|
Handling capacity required
|
|
|
Delivery head/pressure required
|
|
|
The existing process equipment and the existing problems
|
|
