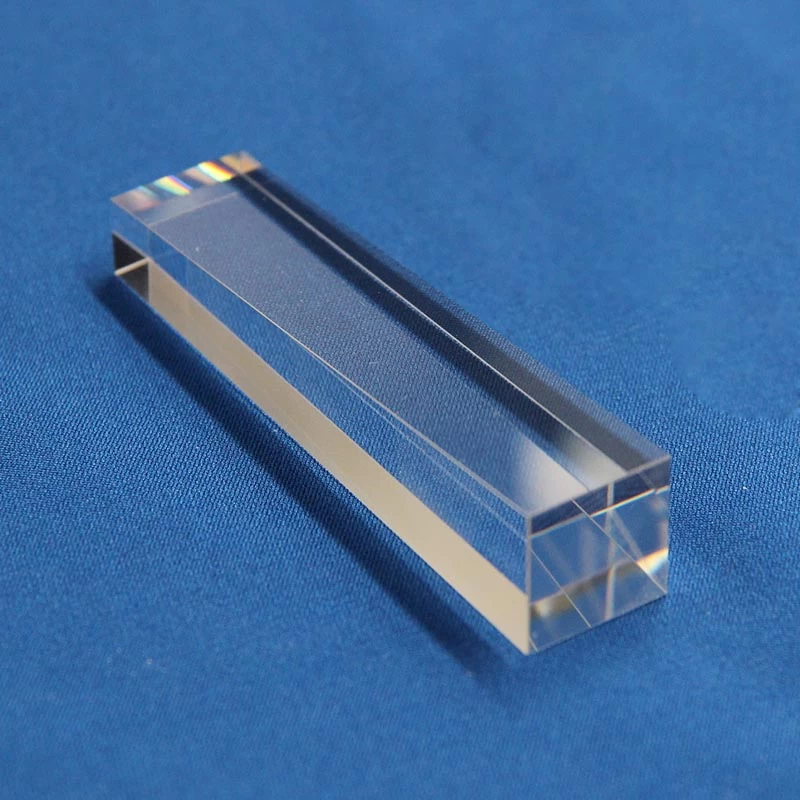

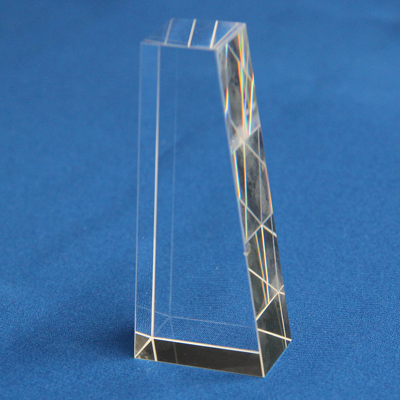

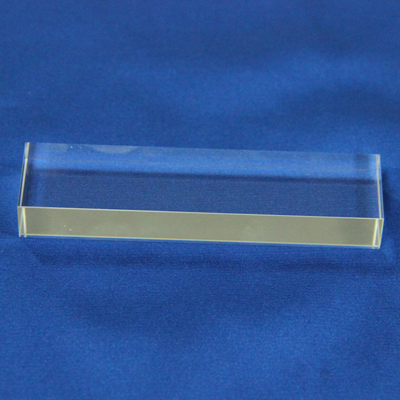

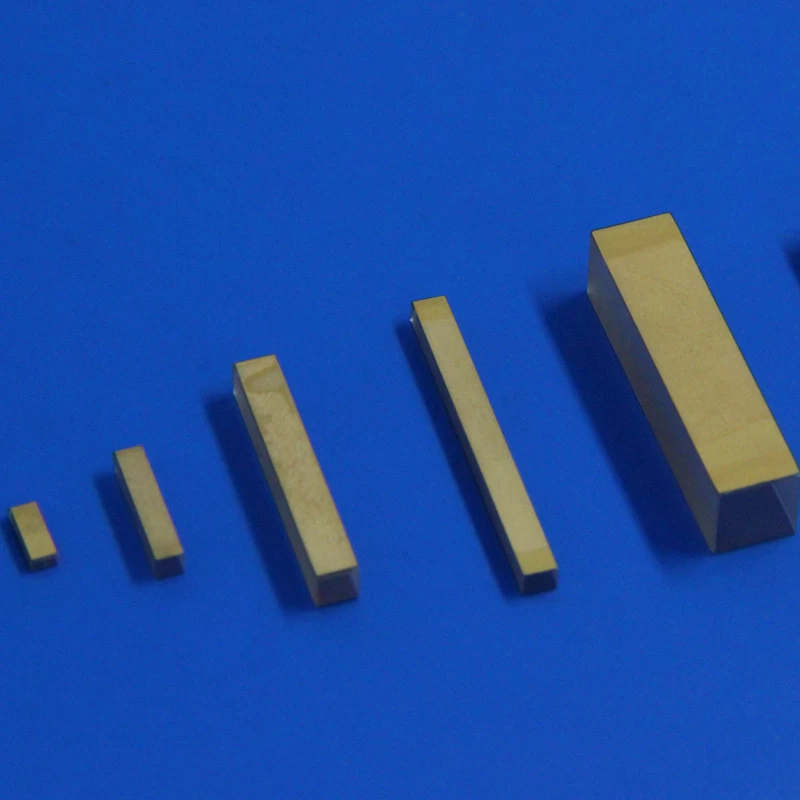

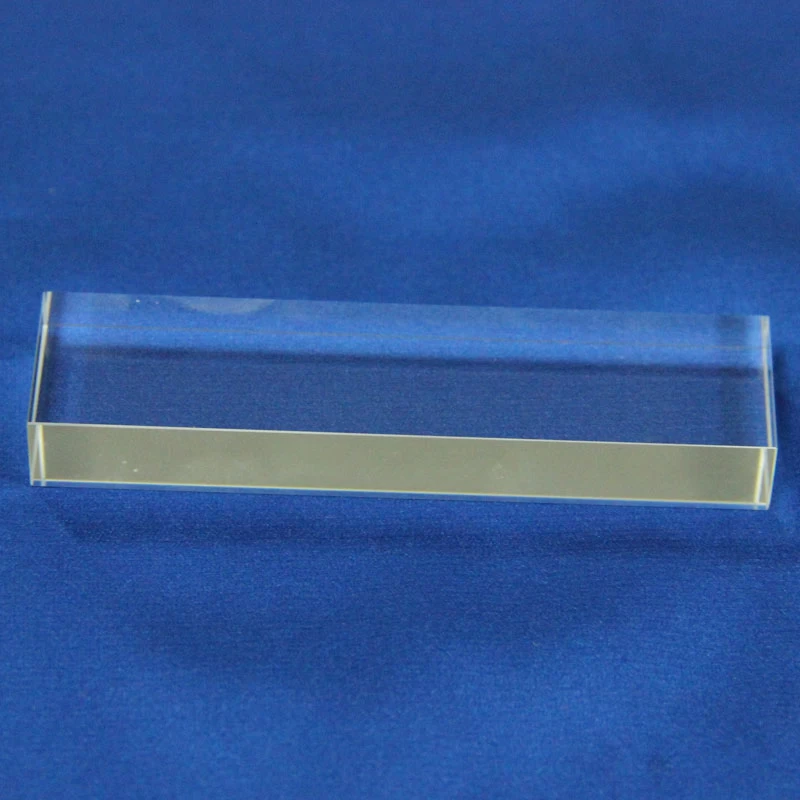

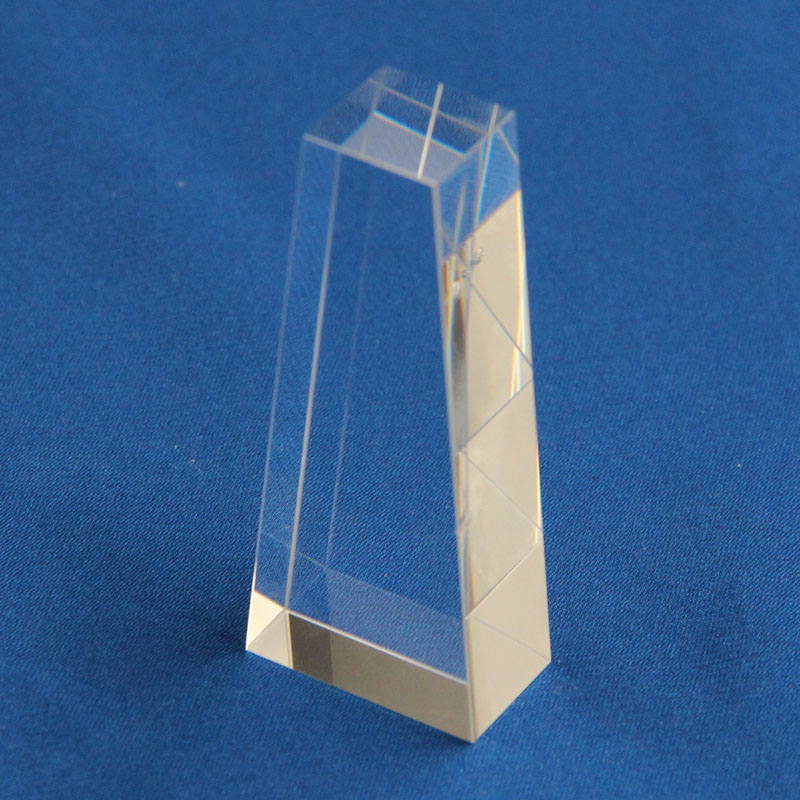

Homogenizing Rods Tapered Prism and Light Pipe and IPL Light Guide
Light Pipes also known as Homogenizing Rods, are Optical Components designed for any application that requires homogenized light.
WTS offer customized Tapred Prisms, Light Pipe, Homogenizing Rods, IPL Light Guide etc products.Different size, coating requirement are available
|
Specifications:
|
|
|
Material:
|
N-BK7; UV Fused Silica; other optical glass
|
|
Dimension Tolerance:
|
+0.0, -0.2mm
|
|
Surface quality:
|
60-40 S/D
|
|
Surface flatness:
|
λ/2 @ 632.8nm
|
|
Angle Tolerance:
|
±3 arc min
|
|
Clear Aperture:
|
>85% of dimension
|
|
Bevel:
|
<0.25mm×45
|
|
Coating:
|
Dielectric Coated, AR coated, HR coated, Ag, Au, Al coated etc.
|
