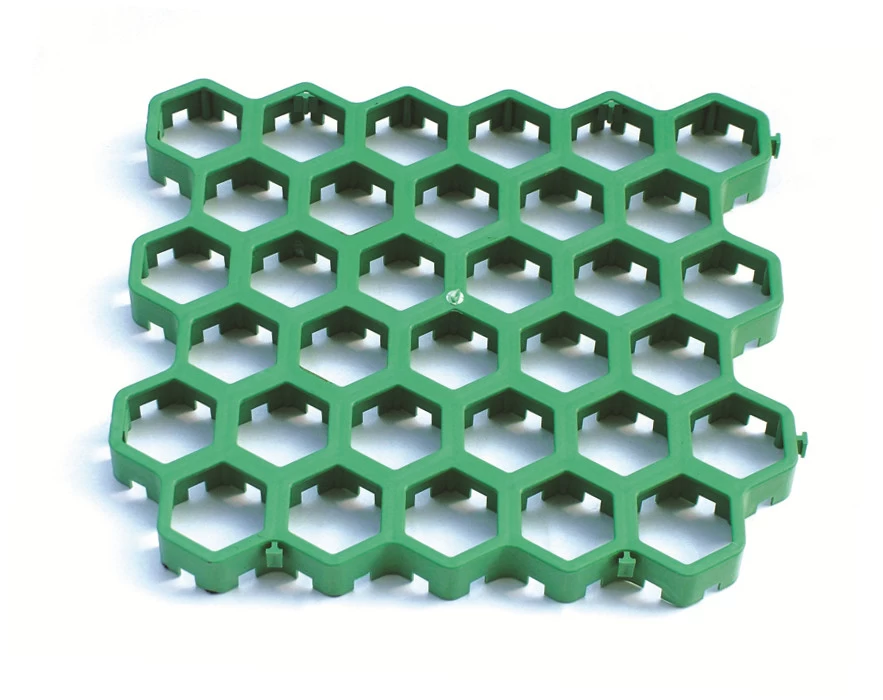

Honeycomb Plastic Grass Grid for City Greening

Honeycomb Plastic Grass Grid for City Greening is made from 100% pure and recycled materials to help keep our environment safe. Plastic Grass Grid Systems are the most commonly use type of grid systems and they are mainly used for grass paver applications. Welcome to contact sales from leiyuan for more details.


  • MaterialHDPE
  • ColorGreen
  • Size385x438x38/50/70mm
  • Total Volume0.05CBM/sqm
  • Press Strength170ton/sqm

Honeycomb Plastic Grass Grid for City Greening Specification:

Item No.

MZ-438

MZ-450

MW-438

MW-450

Size

465x535x38mm

465x535x50mm

465x535x38mm

465x535x50mm




Apply Place

pedestrian areas;

 on verges;

 footpaths;

 access roads;
 emergency access lanes;
 car parks;
 vehicle hardstandings;

 Gravel Road(light vehicle);
 pedestrian areas;
 on verges;

 Gravel Road;
 access roads;
 emergency access lanes;
 car parks;
 vehicle hardstandings;

Pressure Strength

 1176KN/sqm(120ton/sqm)

 1764KN/sqm(180ton/sqm)

 1584KN/sqm(160ton/sqm)

 1964KN/sqm(200ton/sqm)

Weight

 3.65kg/sqm

 4.55kg/sqm

 4.05kg/sqm

 5.5kg/sqm

Material

 HDPE(high-density polyethylene)

 HDPE(high-density polyethylene)

 HDPE(high-density polyethylene)

 HDPE(high-density polyethylene)

Durability

 durability of at least 8 years in neutral ground of 4 < pH < 9

 durability of at least 8 years in neutral ground of 4 < pH < 9

 durability of at least 8 years in neutral ground of 4 < pH < 9

 durability of at least 8 years in neutral ground of 4 < pH < 9

Working Temterature

 Apply in temperature of -40 to 90

 Apply in temperature of -40 to 90

 Apply in temperature of -40 to 90

 Apply in temperature of -40 to 90

Anti HCL

 According to GB4218-1984, 30%x24h, no visible change

 According to GB4218-1984, 30%x24h, no visible change

 According to GB4218-1984, 30%x24h, no visible change

 According to GB4218-1984, 30%x24h, no visible change

Anti NaOH

 According to GB4218-1984, 40%x24h, no visible change

 According to GB4218-1984, 40%x24h, no visible change

 According to GB4218-1984, 40%x24h, no visible change

 According to GB4218-1984, 40%x24h, no visible change

Thermal Aging

 According to GB/T 7141-1999, 70ICx24h, no visible change

 According to GB/T 7141-1999, 70ICx24h, no visible change

 According to GB/T 7141-1999, 70ICx24h, no visible change

 According to GB/T 7141-1999, 70ICx24h, no visible change

Anti UV

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

 According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified

Package

 Bundle, 8pcs=2sqm=1bundle

 Bundle, 8pcs=2sqm=1bundle

 Bundle, 8pcs=2sqm=1bundle

 Bundle, 8pcs=2sqm=1bundle

Loading Capacity

940sqm=1x20ft container
1910sqm=1x40ft container
2160sqm=1x40HC container

700sqm=1x20ft container

1420sqm=1x40ft container

1628sqm=1x40HC container

940sqm=1x20ft container
1910sqm=1x40ft container
2160sqm=1x40HC container

700sqm=1x20ft container

1420sqm=1x40ft container

1628sqm=1x40HC container



Honeycomb Plastic Grass Grid Application:

  • Grass driveways and grass shoulder

  • Overflow grass car parking lot

  • Fire truck access paths/ fire lanes

  • Handicap access routes

  • Golf buggy/trolley paths

  • Emergency vehicle access roads through fields

  • Modern factory building

  • Noble living communities

  • Truck maintenance and equipment yards

  • Construction entrance soil stabilization

Feature and Benefits:

1). Manufactured from 100% recycled plastics, eco-friendly grass grids

2). Fast and easy to install, maintenance with low cost

3). Perfect greening, provides more than 95% grass area

4). Permeability drainage performance, high water culvert

5). Allows grass grid to grow with easy and binds firmly

6). Anti-UV, resistance to acid and alkali corrosion, anti-wear and pressure

7). High compressive strength and durable, the plastic grass grids is permanent and long lasting

8). Grass grids has an open cell structure allowing unrestricted healthy grass root growth

9). Flag plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change

 Introduction About Honeycomb Plastic Grass Grid:

Honeycomb Plastic Grass Grid is one of the the most commonly used type of grid system today. Plastic grass grid is made from 100% recycled materials to help increase our environment's safety. They are mainly used for not only paver applications but also used to protect driveways and prevent erosion. Plastic Grass Grid can be customized in size requirements to suit the needs of your application. At the same time, they are also very flexible and allow underlying soil to breathe.

Honeycomb grass grid is best solution for grid system, the plastic system is lightweight and easy to install. And the grids can be sit directly on top of the system to provide structure and support. This system is also allows grass to growth through the grids.

Grass Driveways Pavers Instruction:




Leiyuan Plastic Grass Grid: High Strength, Long Life Service !
