The LLMUX IOP module supports up to 64 channels of temperature inputs. Low level inputs use the Honeywell PMIO LLMUX FTA. Each FTA supports 16 channels. Two types of LLMUX FTA are supported. One provides 16 RTD inputs. The other provides 16 TC or MV inputs. Any combination of FTAs may be used to provide the mix of TC, mV or RTD points required.
|
|
|

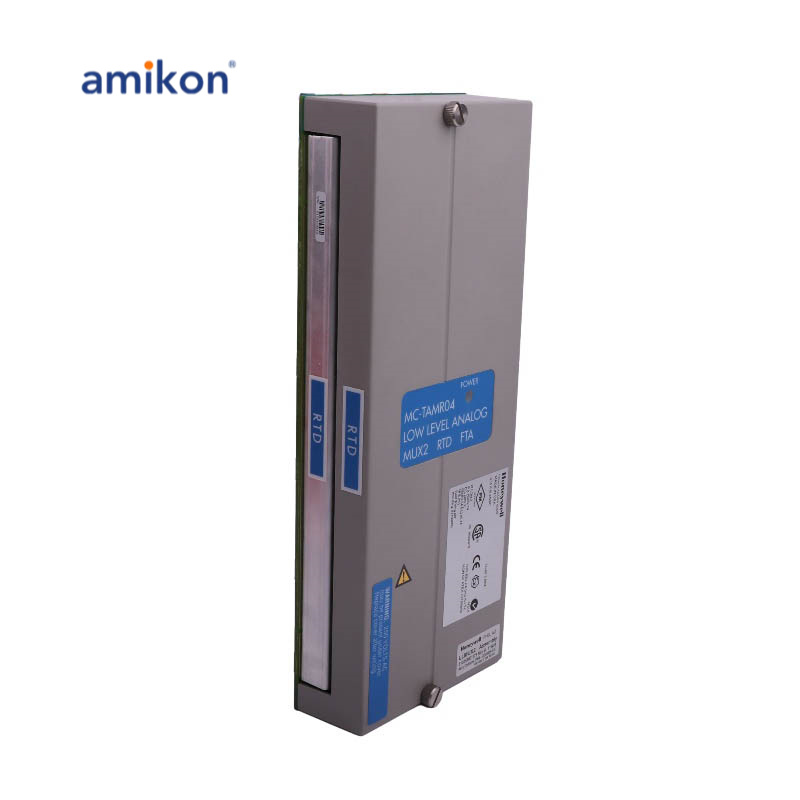

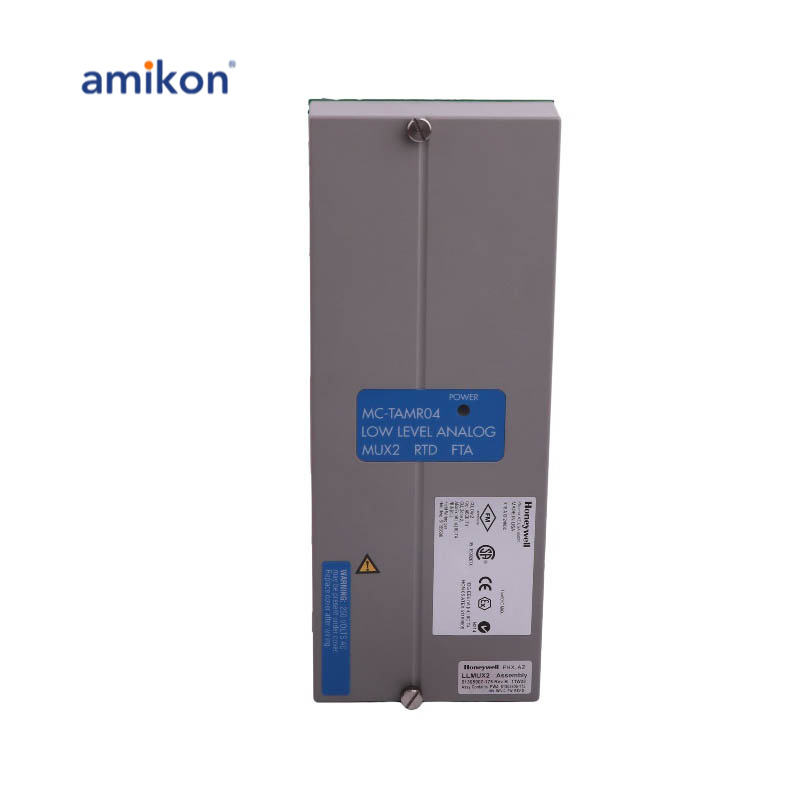

MC-TAMR04 51305907-175 Data sheet
|
The Temperature Input LLMUX supports the existing solid state PMIO LLMUX FTA. The PMIO LLMUX FTA supports RTD and Thermocouple (TC) inputs.
|
|
The Temperature variable is collected from all points at a 1 second rate. The 1 second update includes a configurable check for Open Thermocouple Detection (OTD) (see below) before propagation of the temperature variable.
|
|
TC and RTD operation Remote cold junction capability 1 Second PV scanning with OTD protection.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
