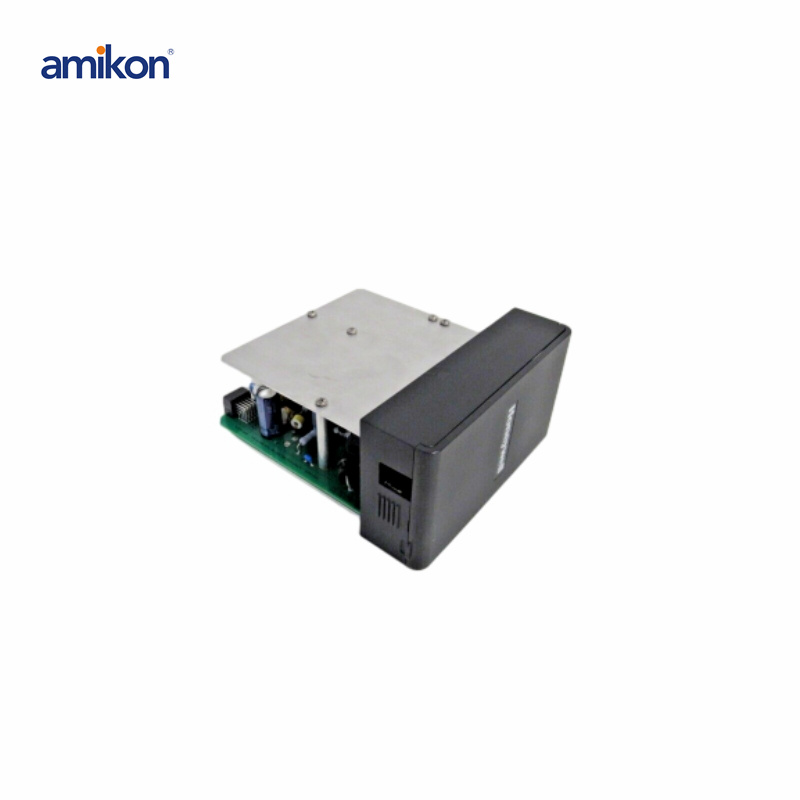

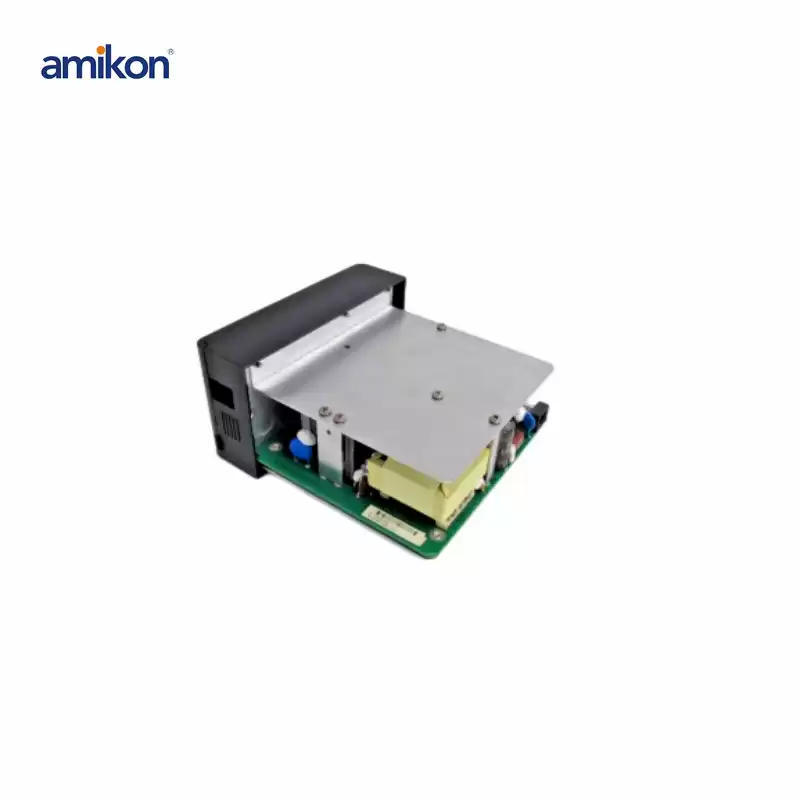

Honeywell 900P24-0601 I/O Modules
1.The Redundant Switch Module resides in a ControlEdge HC900 Redundant controller rack and interfaces with both CPUs of a redundant system and indicates which CPU is functioning as the Lead controller and which is the Reserve.
2.A key switch on the module sets the mode of both the Lead and Reserve controllers, guaranteeing
synchronization of CPUs.
3.A momentary contact position of the key switch allows the user to switch the Lead control function from CPU-A to CPU-B or vice versa.
4.The RSM module supports insertion and removal under power.
Contact Information!
Discuss pricing and delivery time with a sales representative
+86 189 6519 6563
sales17@amikon.cn
+86-189 6519 6563
Product Details
|
Module Number
|
900P24-0601
|
|
Dimension
|
144 x 145 x 35 mm
|
|
Weight
|
2104g
|
|
Item
|
4 I/O slot Rack1,2
|
|
Lead/Reserve indication
|
Green arrow LEDs
|
|
Mode Switch
|
Removable key ( 2 keys supplied)
|
|
Power Supply Loading
|
5V; 22mA max
|
