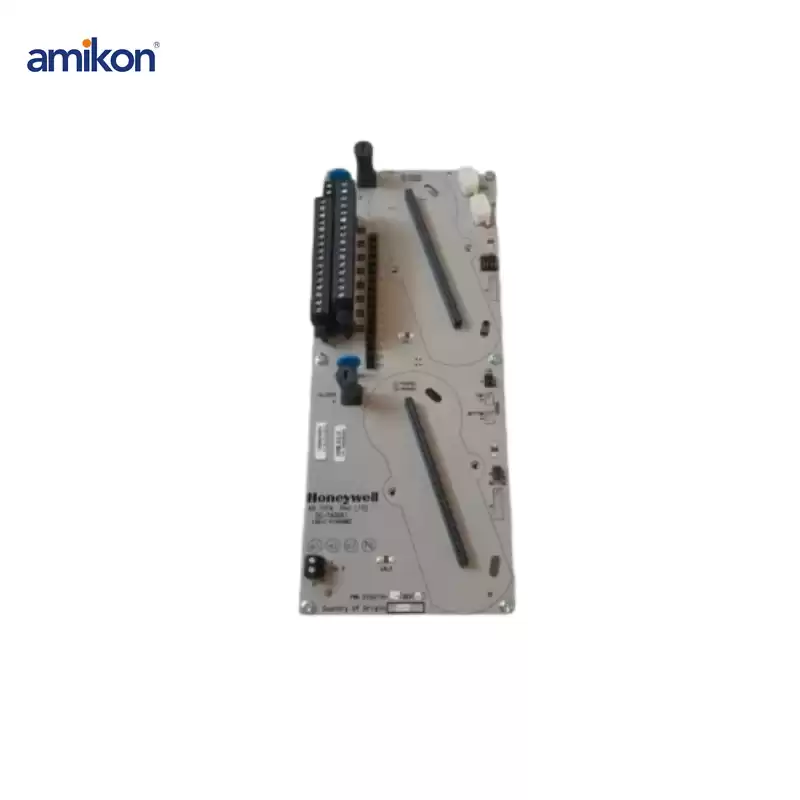

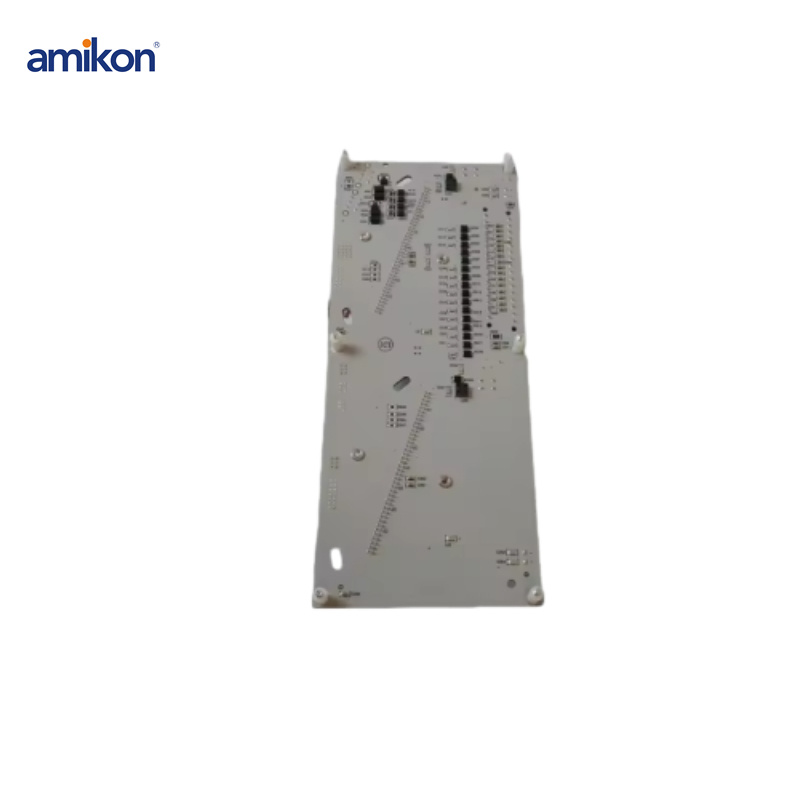

Honeywell  FC-BSN-1608 Safe Namur Sensor Converter

New and original & Fast Deliyery & In Stock


  • Brand/ManufaturerHONEYWELL
  • Country of OriginUSA
  • Weight0.5kg
  • Dimensions144 x 145 x 35 mm
  • Warranty PeriodOne Year Warranty
  • Payment Term100% Advance Payment T/T Bank Wire Transfer

Honeywell  FC-BSN-1608 Safe Namur Sensor Converter


Brand: Honeywell

Condition100% New Original

Payment Terms: T/T

Minimum Order Quantity: 1pc

Weight: 0.5kg

Dimensions: 144 x 145 x 35 mm

Product Description: Honeywell  FC-BSN-1608 Safe Namur Sensor Converter



The FC-BSN-1608 digital input module has sixteen channels for either loopmonitored loops or status signals derived from proximity switches, as set inDIN 19234 (NAMUR).

The module also supports monitoring of earth faults thatoccur within these sixteen loops.

The FC-BSN-1608 module can be used in applications up to SIL 3, in compliancewith 1EC 61508.
The power for the connected field devices is supplied by an on-board DC/DCconverter common to all sixteen channels.LEDs on the front of the module indicate the status of the channel, loop andmodule diagnostics.

The input of proximity switch signals to the FC-BSN-1608 module needs to beconverted to a level that is suitable for the FC-BSN-1608 module. To enable thisconversion, you need to place the signal converter module FC-BSN-1608 programming connector Px on the back of the IO backplane in the IO chassis.



Self-test

The self-test of the module, which is controlled by the SM Controller, includes:

Functional tests of the various trip levels applied

Channel independence
Monitoring of supply voltage to input devicesEarth connection
Used supply voltages

Technical Specifications:

  • Digital Input Channels: 16
  • Digital Output Channels: 8
  • Input Type: Isolated and non-isolated
  • Operating Voltage: 24 VDC
  • Isolation: 1500 VDC channel-to-channel and channel-to-ground
  • Input Signal Voltage Range: 0-30 VDC
  • Input Impedance: >10k ohms
  • Output Type: Transistor (open collector)
  • Output Current: 0.5A per channel
  • Response Time: Input - 1ms, Output - 2ms
  • Operating Temperature: -20°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Humidity: 5% to 95% non-condensing
  • Dimensions: 144 x 145 x 35 mm
  • Weight: 0.5 kg
