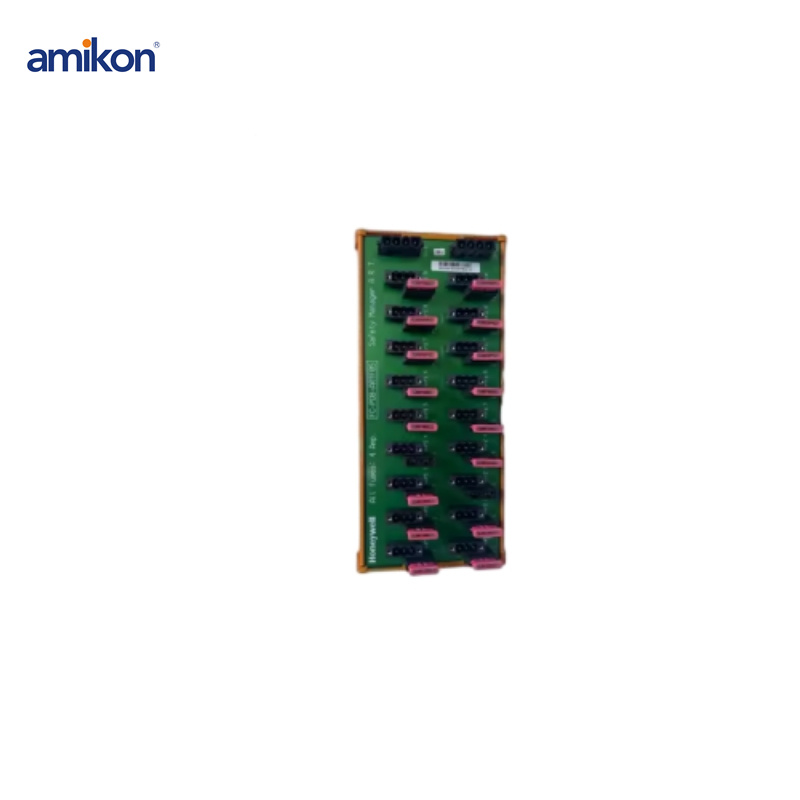

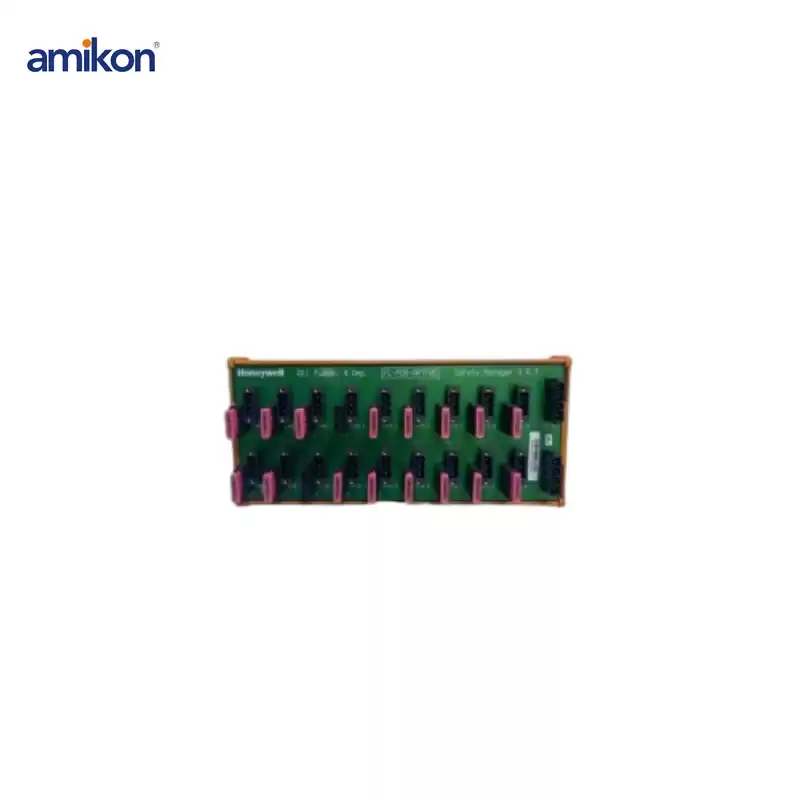

Honeywell FC-PDB-ARTF05 Analog Output Module
Brand: Honeywell
Condition: 100% New Original
Payment Terms: T/T
Minimum Order Quantity: 1pc
Weight: 0.5kg
Dimensions: 144 x 145 x 35 mm
Product Description: Honeywell FC-PDB-ARTF05 Analog Output Module
The FC-PDB-ARTF05 digital input module has sixteen channels for either loopmonitored loops or status signals derived from proximity switches, as set inDIN 19234 (NAMUR).
The module also supports monitoring of earth faults thatoccur within these sixteen loops.
The FC-PDB-ARTF05 module can be used in applications up to SIL 3, in compliancewith 1EC 61508.
The power for the connected field devices is supplied by an on-board DC/DCconverter common to all sixteen channels.LEDs on the front of the module indicate the status of the channel, loop andmodule diagnostics.
The input of proximity switch signals to the FC-PDB-ARTF05 module needs to beconverted to a level that is suitable for the FC-PDB-ARTF05 module. To enable thisconversion, you need to place the signal converter module FC-PDB-ARTF05 programming connector Px on the back of the IO backplane in the IO chassis.
Self-test
The self-test of the module, which is controlled by the SM Controller, includes:
Functional tests of the various trip levels applied
Channel independence
Monitoring of supply voltage to input devicesEarth connection
Used supply voltages
Technical Specifications:
-
Digital Input Channels: 16
-
Digital Output Channels: 8
-
Input Type: Isolated and non-isolated
-
Operating Voltage: 24 VDC
-
Isolation: 1500 VDC channel-to-channel and channel-to-ground
-
Input Signal Voltage Range: 0-30 VDC
-
Input Impedance: >10k ohms
-
Output Type: Transistor (open collector)
-
Output Current: 0.5A per channel
-
Response Time: Input - 1ms, Output - 2ms
-
Operating Temperature: -20°C to +70°C
-
Storage Temperature: -40°C to +85°C
-
Humidity: 5% to 95% non-condensing
-
Dimensions: 144 x 145 x 35 mm
-
Weight: 0.5 kg
