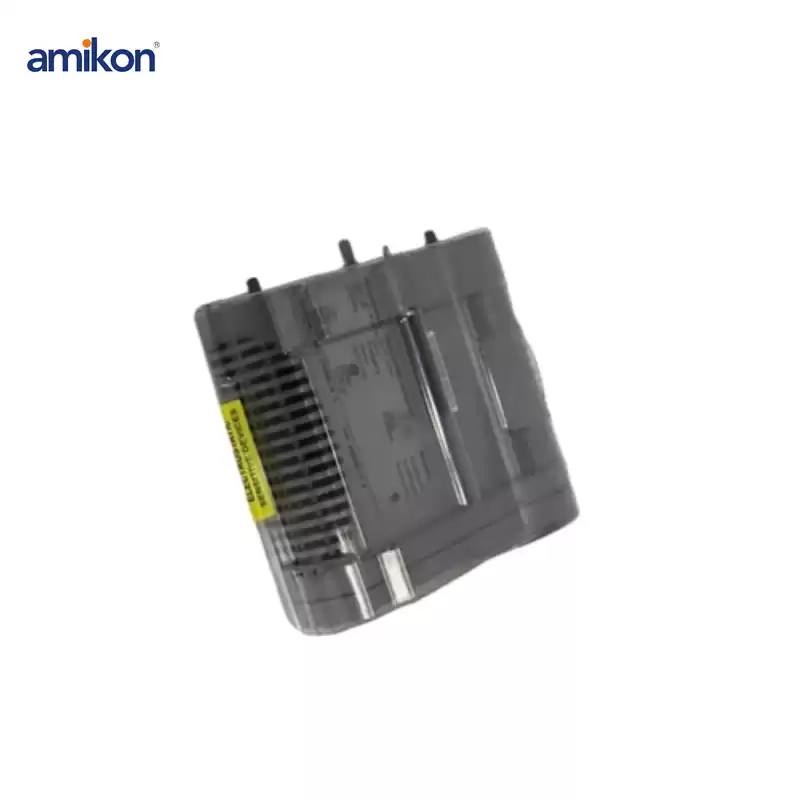

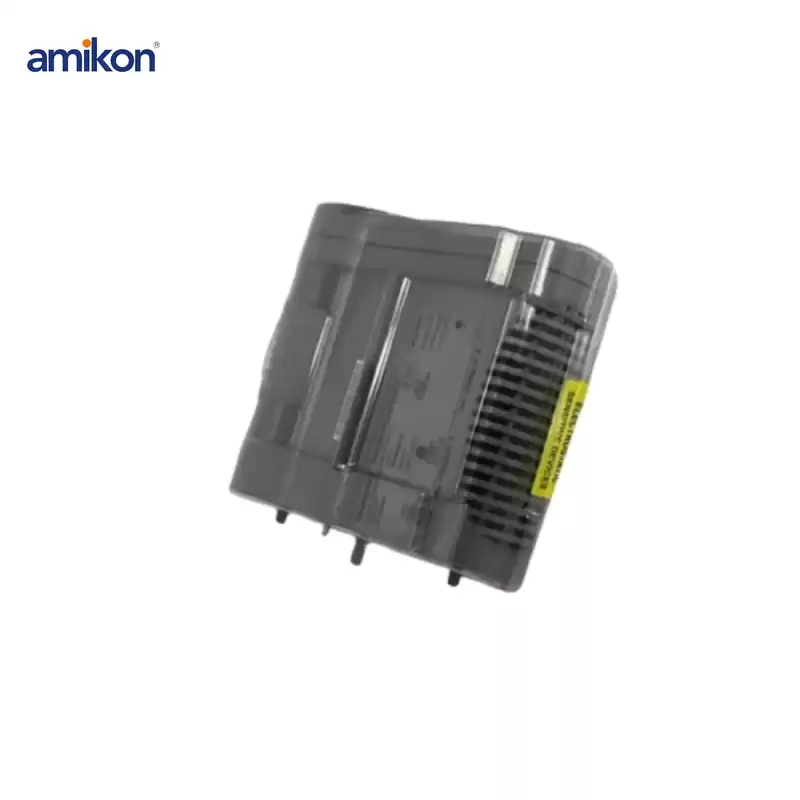

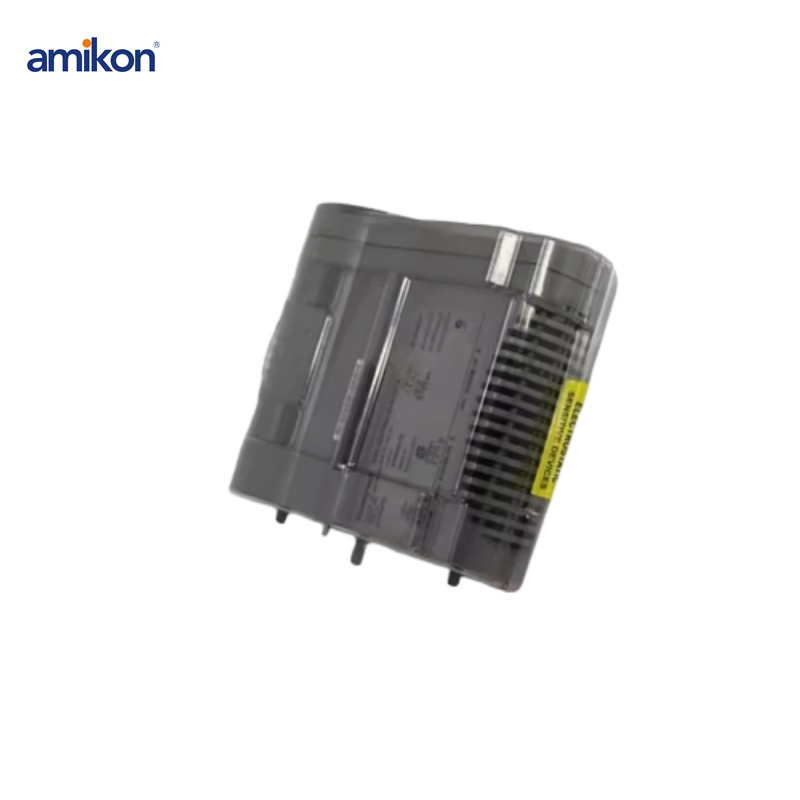

Honeywell FS-BCU-0032 Battery Control Unit
Brand: Honeywell
Condition: 100% New Original
Payment Terms: T/T
Minimum Order Quantity: 1pc
Weight: 0.5kg
Dimensions: 144 x 145 x 35 mm
Product Description: Honeywell FS-BCU-0032 Battery Control Unit
The FS-BCU-0032 digital input module has sixteen channels for either loopmonitored loops or status signals derived from proximity switches, as set inDIN 19234 (NAMUR).
The module also supports monitoring of earth faults thatoccur within these sixteen loops.
The FS-BCU-0032 module can be used in applications up to SIL 3, in compliancewith 1EC 61508.
The power for the connected field devices is supplied by an on-board DC/DCconverter common to all sixteen channels.LEDs on the front of the module indicate the status of the channel, loop andmodule diagnostics.
The input of proximity switch signals to the FS-BCU-0032 module needs to beconverted to a level that is suitable for the FS-BCU-0032 module. To enable thisconversion, you need to place the signal converter module FS-BCU-0032 programming connector Px on the back of the IO backplane in the IO chassis.
Self-test
The self-test of the module, which is controlled by the SM Controller, includes:
Functional tests of the various trip levels applied
Channel independence
Monitoring of supply voltage to input devicesEarth connection
Used supply voltages
Technical Specifications:
-
Digital Input Channels: 16
-
Digital Output Channels: 8
-
Input Type: Isolated and non-isolated
-
Operating Voltage: 24 VDC
-
Isolation: 1500 VDC channel-to-channel and channel-to-ground
-
Input Signal Voltage Range: 0-30 VDC
-
Input Impedance: >10k ohms
-
Output Type: Transistor (open collector)
-
Output Current: 0.5A per channel
-
Response Time: Input - 1ms, Output - 2ms
-
Operating Temperature: -20°C to +70°C
-
Storage Temperature: -40°C to +85°C
-
Humidity: 5% to 95% non-condensing
-
Dimensions: 144 x 145 x 35 mm
-
Weight: 0.5 kg
