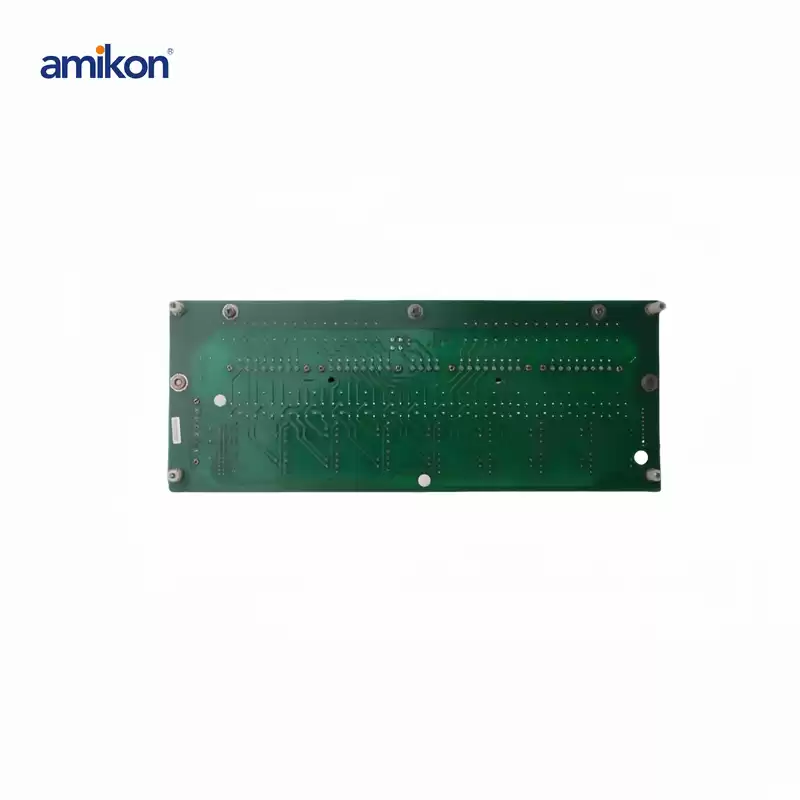

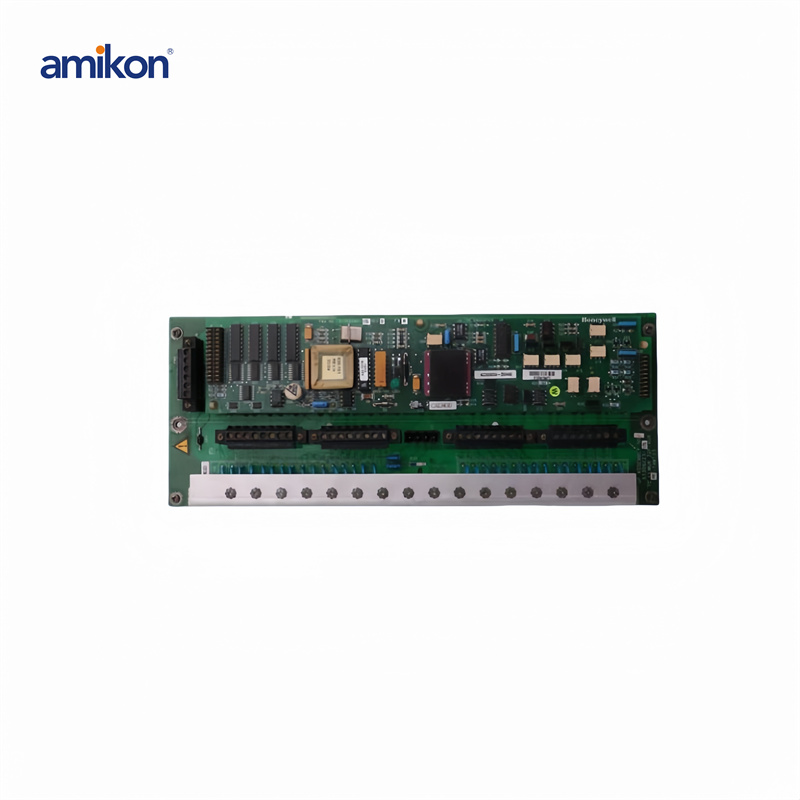

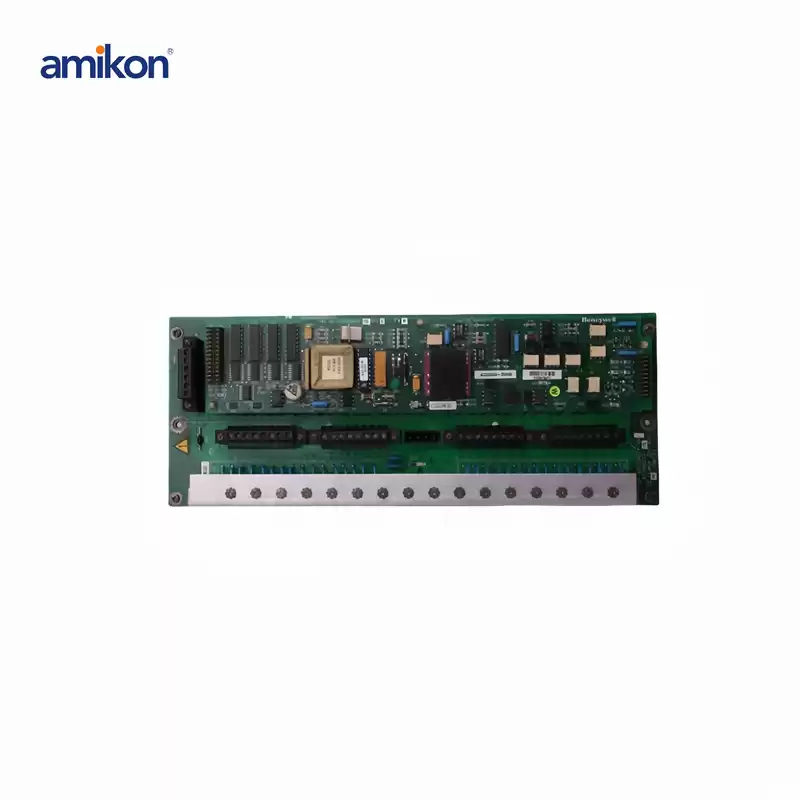

Honeywell FS-CPCHAS-0003 CHASSIS FOR CONTROL PROCESSOR
Brand: Honeywell
Condition: 100% New Original
Payment Terms: T/T
Minimum Order Quantity: 1pc
Weight: 0.5kg
Dimensions: 144 x 145 x 35 mm
Product Description: FS-CPCHAS-0003 CHASSIS FOR CONTROL PROCESSOR
Self-test
The self-test of the module, which is controlled by the SM Controller, includes:
Functional tests of the various trip levels applied
Channel independence
Monitoring of supply voltage to input devicesEarth connection
Used supply voltages
Technical Specifications:
-
Digital Input Channels: 16
-
Digital Output Channels: 8
-
Input Type: Isolated and non-isolated
-
Operating Voltage: 24 VDC
-
Isolation: 1500 VDC channel-to-channel and channel-to-ground
-
Input Signal Voltage Range: 0-30 VDC
-
Input Impedance: >10k ohms
-
Output Type: Transistor (open collector)
-
Output Current: 0.5A per channel
-
Response Time: Input - 1ms, Output - 2ms
-
Operating Temperature: -20°C to +70°C
-
Storage Temperature: -40°C to +85°C
-
Humidity: 5% to 95% non-condensing
-
Dimensions: 144 x 145 x 35 mm
-
Weight: 0.5 kg
