About product :
|
Brand
|
Honeywell
|
|
Part Number
|
05701-A-0302
|
|
Product Type
|
Single Channel Control Card Catalytic
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

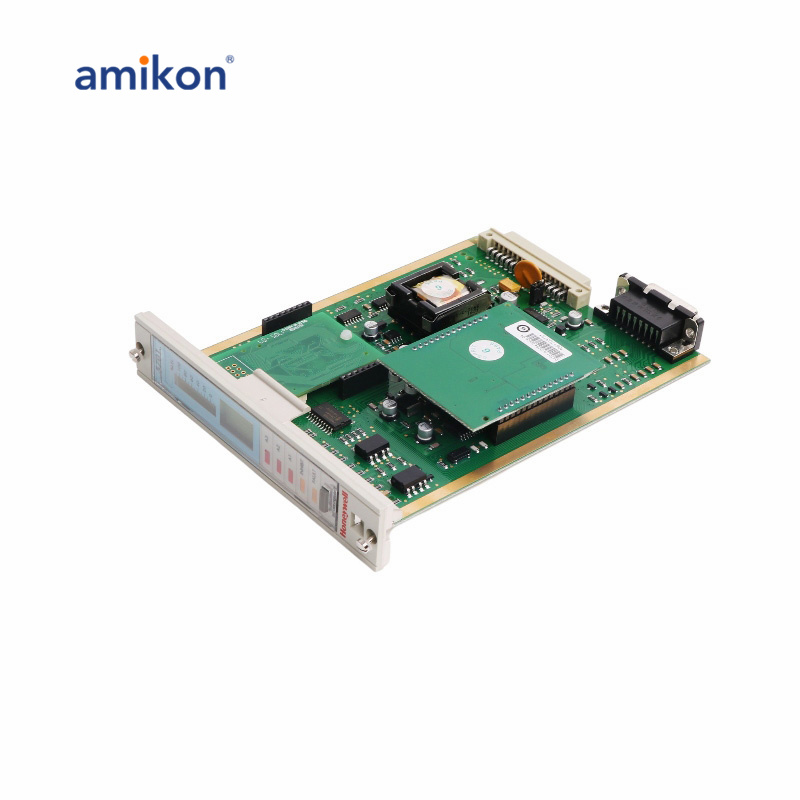

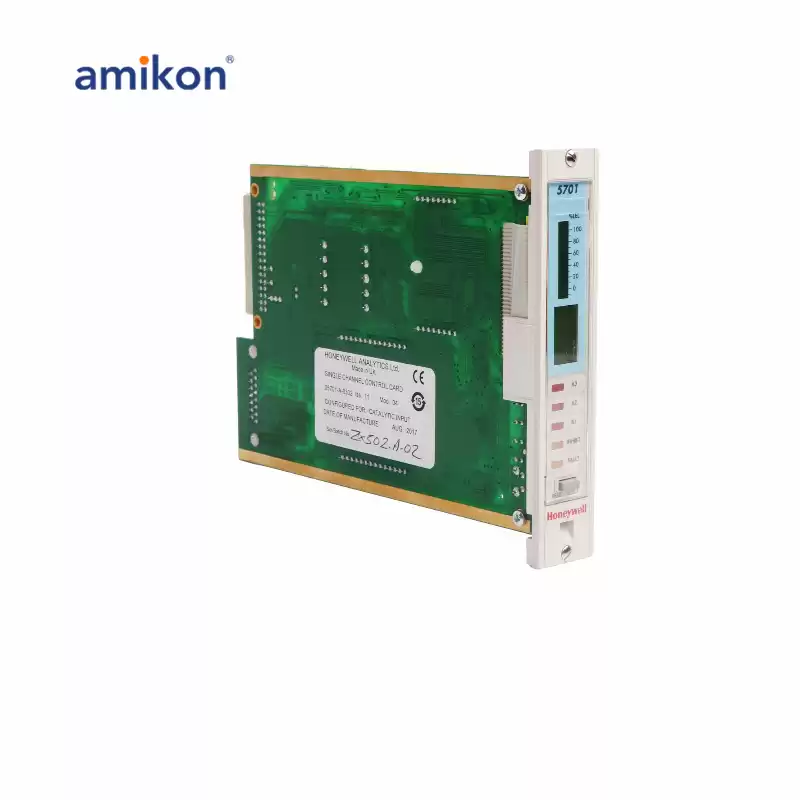

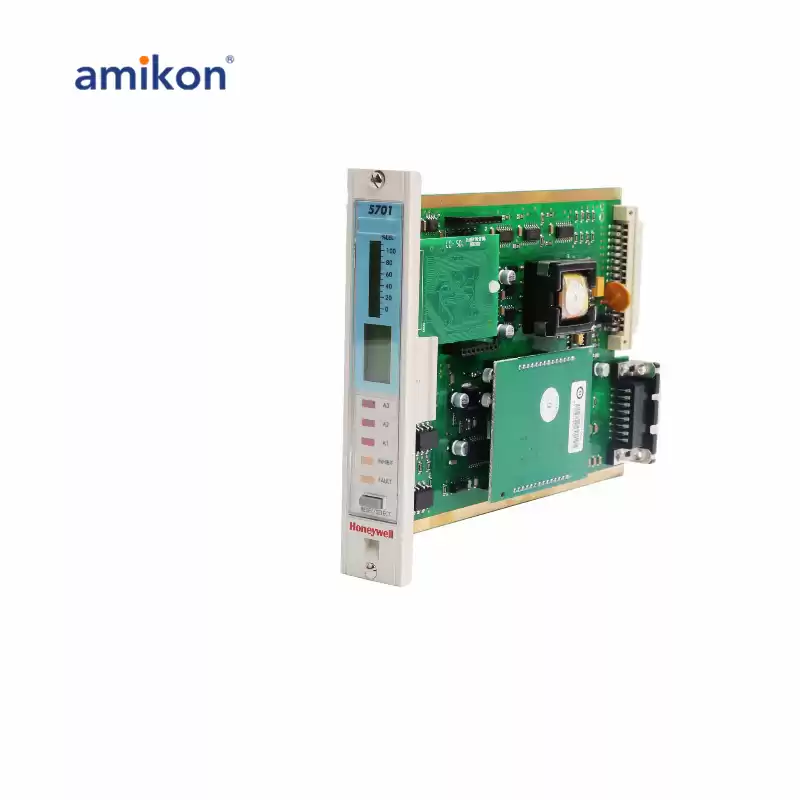

The 05701-A-0302 is a Single Channel Control Card designed to provide control, display, and alarm functionality for a connected gas detector. The operation of the control card is microprocessor-controlled, allowing it to be fully configurable for a wide range of gas detectors and application requirements. The front panel display shows the gas reading and channel status, while LEDs are used to indicate alarm conditions. Additionally, a push-button is provided to reset alarms and select the card for use with the Engineering Card.
FAQ:
1. How is the card installed?
The 05701-A-0302 is typically mounted in the appropriate control panel or system, with connections made to the gas detector and associated components. Ensure that the system is properly powered and wired for optimal operation.
2. What happens if an alarm is triggered?
When an alarm is triggered, the LED indicators on the front panel will light up, alerting operators to the issue. The push-button can then be used to reset the alarm after addressing the cause.
3. What is the purpose of the Engineering Card connection?
The Engineering Card allows users to configure and troubleshoot the 05701-A-0302 control card. It provides additional diagnostic tools and system information for maintenance or setup.
