About product :
|
Brand
|
Honeywell
|
|
Part Number
|
05704-A-0121
|
|
Product Type
|
Relay Interface Card
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

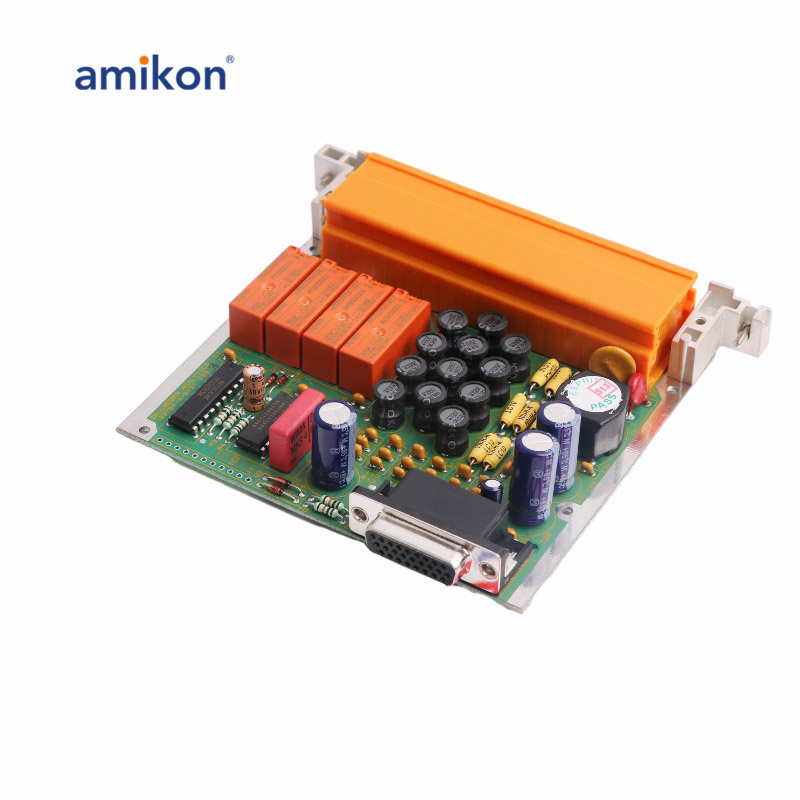

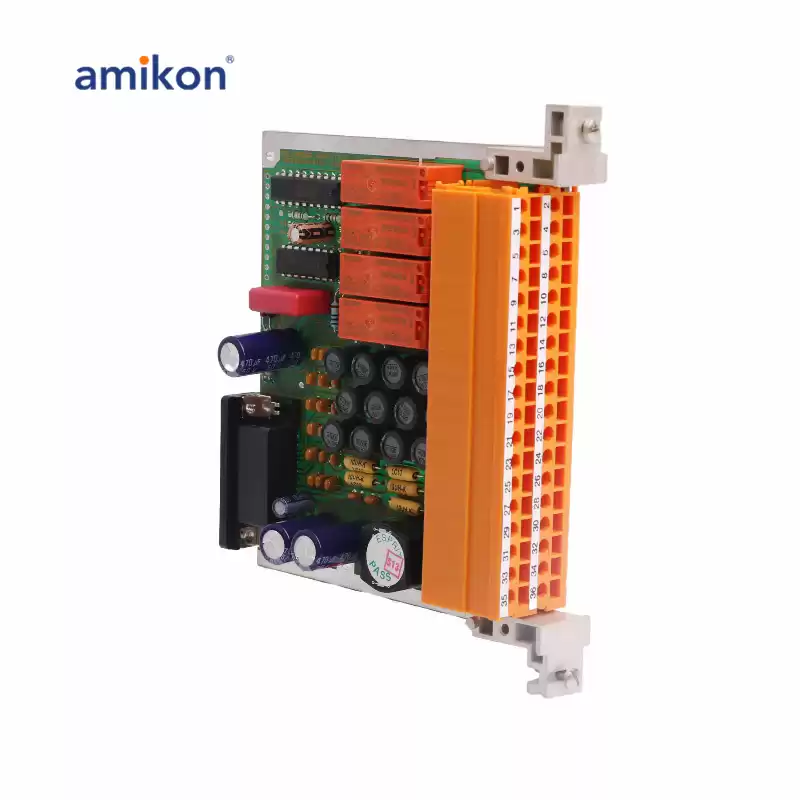

The 05704-A-0121 is a Quad Relay Interface Card that serves as the interface between a Four Channel Control Card and the field wiring. An optional Expansion Relay Card can be factory-fitted to the Quad Relay Interface Card, and the resulting assembly is referred to as the Relay Interface Assembly.
This assembly expands the standard four relays available on the Quad Relay Interface Card to 16 relays. These relays can be configured for different alarm levels (A1, A2, A3), fault, or inhibit conditions, and can be set up as individual alarms or master alarms. Additionally, the card provides connections for power, remote inputs, and analog outputs.
|
Manufacturer
|
HONEYWELL
|
|
Part Number
|
05704-A-0121
|
|
Product Type
|
Quad Relay Interface Card
|
|
Connections
|
Provides connections between the four sensors and the control card
|
|
Power
|
1.7W (maximum), 1W (typical)
|
|
Relays
|
4 x SPCO (Single Pole Change Over)
|
|
Relay Operation
|
Selectable: Latching/Non-Latching, Energised/De-Energised
|
|
Relay Contact Rating
|
5A at 110V/250V AC (non-inductive)
|
|
5A at 32V DC (non-inductive)
|
