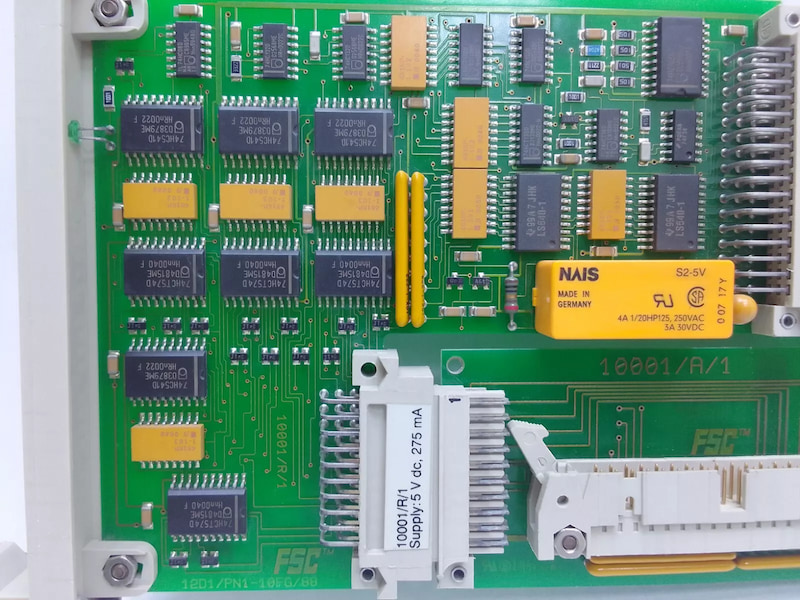

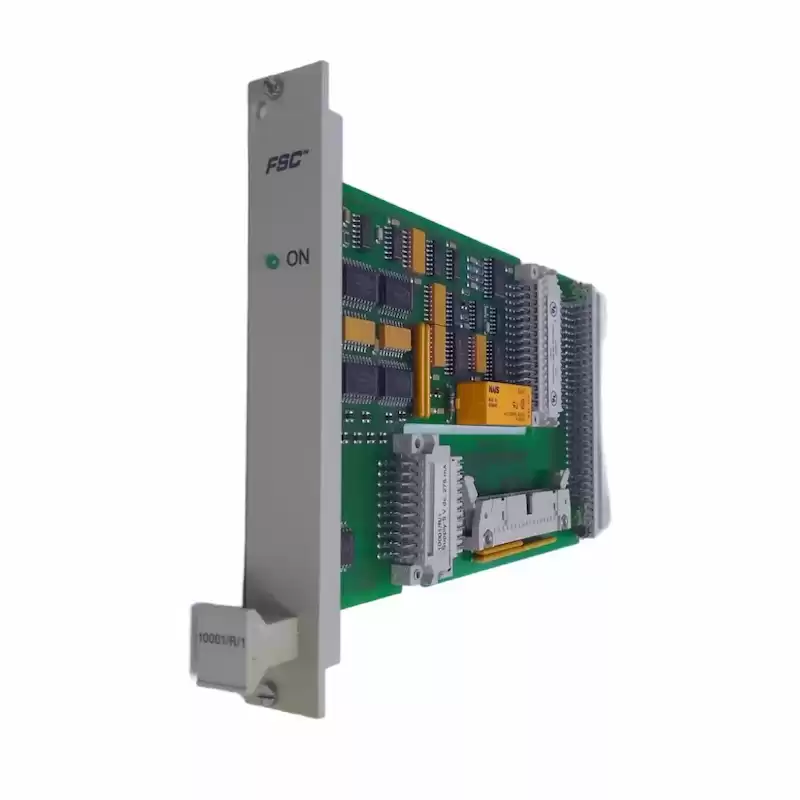

10001/R/1 Vertical bus driver (VBD)
The Central Part (CP) of the FSC system is connected to the I/O level via the vertical bus driver (VBD) modules, which are located in the Central Part rack. A maximum of 14 vertical bus drivers can be installed per Central Part. Each vertical bus driver can support up to 10 horizontal bus driver (HBD) modules.
The maximum distance between a vertical bus driver and any I/O rack on the vertical bus is 5 m (16.4 ft).
The 10001/R/1 modules consist of two parts:
• electronic part (mainboard), and
• wiring part (10001/A/1).
The bolts on the 96-pin connector are used to secure the 10001/A/1 part of the VBD to the 19-inch rack. This allows exchange of the electronic part of the VBD without disconnecting the vertical bus flat cable.
Technical Specifications
| Manufacturer |
Honeywell |
| Part Number |
10001/R/1 |
| Ordering Information |
10001/R/1 |
| Product Catalog |
FSC system |
| Description |
Vertical Bus Driver |
| Voltage |
5 Vdc |
| Current |
275 mA |
| Dimensions |
20.3 mm x 15.2 mm x 2.5 mm |
| Weight |
0.2 kg |
