About product :
|
Brand
|
Honeywell
|
|
Part Number
|
10005/1/1
|
|
Product Type
|
Watch Dog Module
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

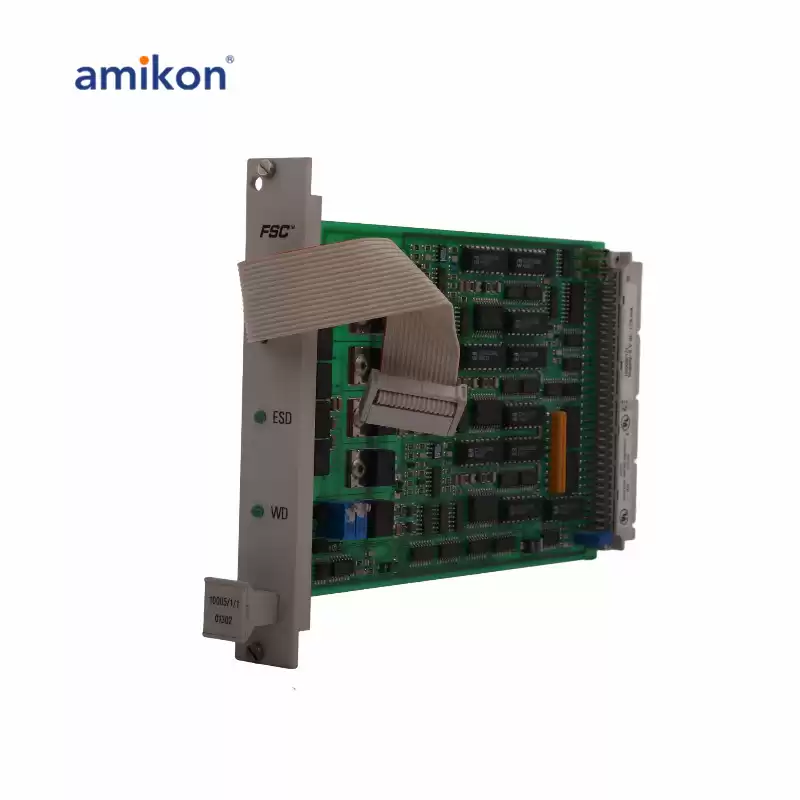

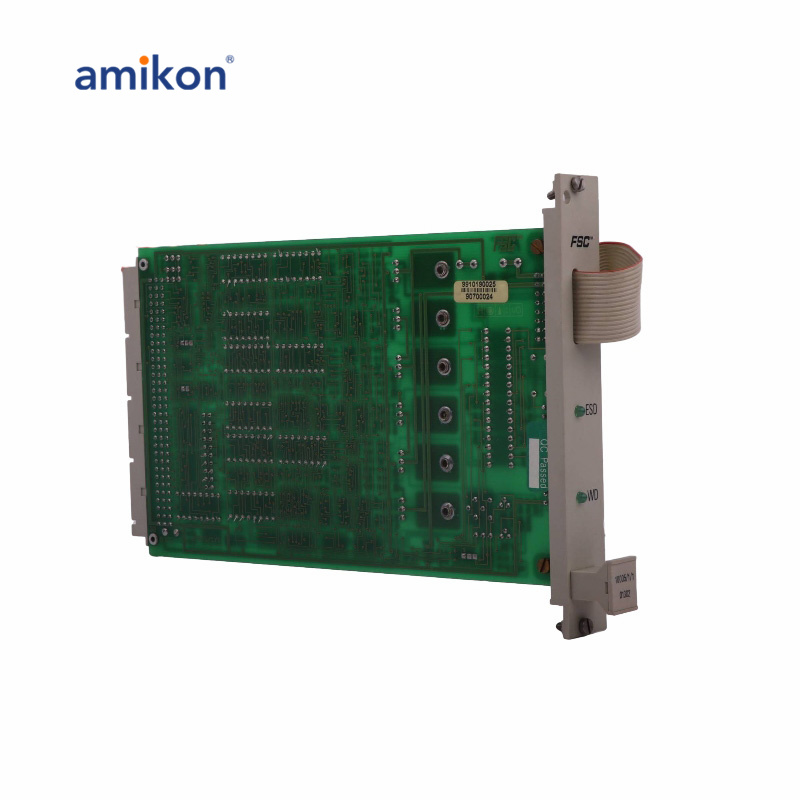

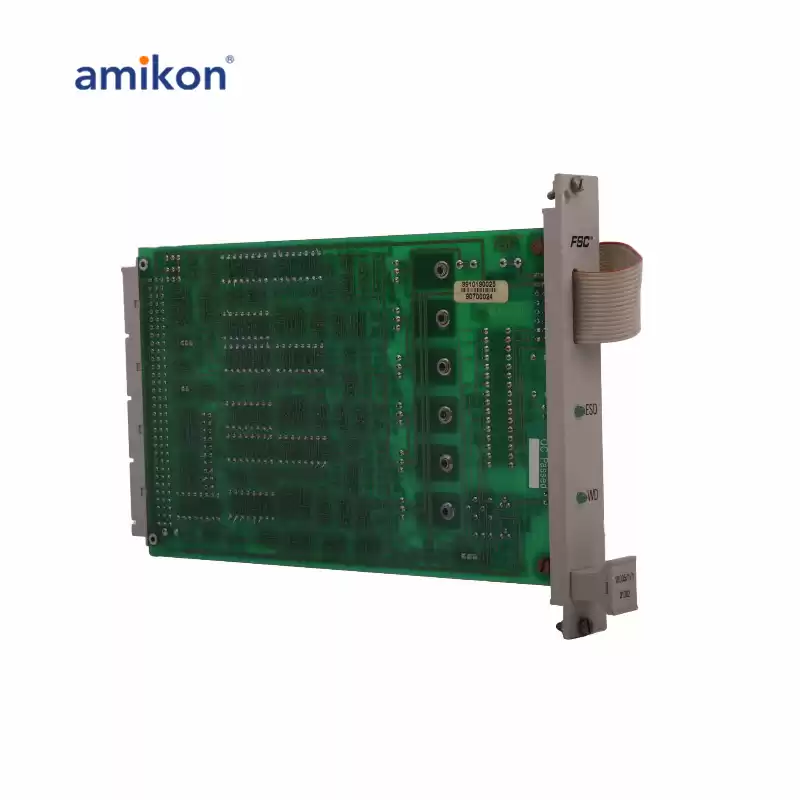

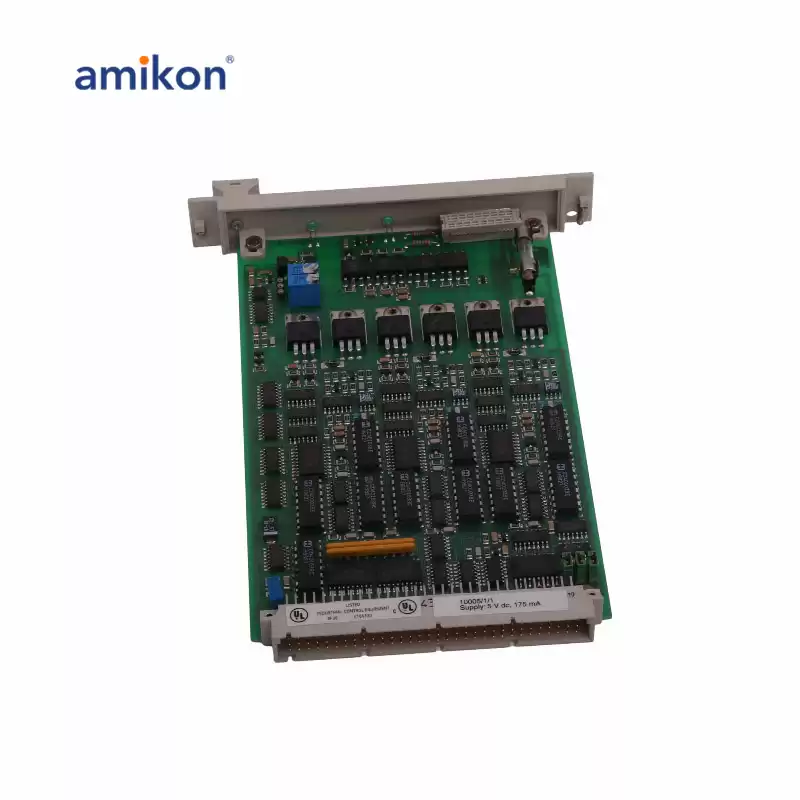

The 10005/1/1 Watchdog Module is a critical component designed to monitor and ensure the proper execution of processor programs in safety systems. It provides 5 Vdc output with a maximum current of 900 mA (protected by a 1A fuse). For systems requiring higher current due to multiple output modules, a Watchdog Repeater (WDR, 10302/1/1) can be used to distribute the load across the WD and WDR. The module includes an ESD input, which operates independently of the processor, to de-energize the watchdog output as needed. This ESD input is 24 Vdc and galvanically isolated from the internal 5 Vdc supply. The 10005/1/1 ensures accurate program execution with a 2-out-of-3 voting system and monitors the 5 Vdc supply for overvoltage and undervoltage conditions within ±5%. This robust design guarantees reliable performance and safety in critical applications.
Manufacturers:
Honeywell
Model(s):
Honeywell FSC
Estimated Shipping Size:
Dimensions: 1.0" x 5.0" x 8.0"
(2.5 cm x 12.7 cm x 20.3 cm)
Weight: 0 lbs 6.1 oz (0.2kg )
FAQ:
1. What is the primary function of the 10005/1/1 Watchdog Module?
The 10005/1/1 Watchdog Module is designed to monitor the proper execution of processor programs in safety-critical systems. It helps detect if the processor is malfunctioning by ensuring that the program is being executed correctly and without errors.
2. What is the maximum output current of the Watchdog Module?
The 10005/1/1 Watchdog Module provides a maximum output current of 900 mA (with a 1A fuse) for the 5 Vdc supply. If the system requires higher current, additional components, like the Watchdog Repeater (WDR), are necessary.
