10005 1 1
|
|
Dimensions ：2cmx18cmx12.9cm
|
Weight: 0.15KG
|
Product Package：Original Package
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Full Description:Honeywell 10005/1/1CC WATCHDOG MOD 100% Brand New. 365 days warranty For detail pics,pls contact us with free
|
|

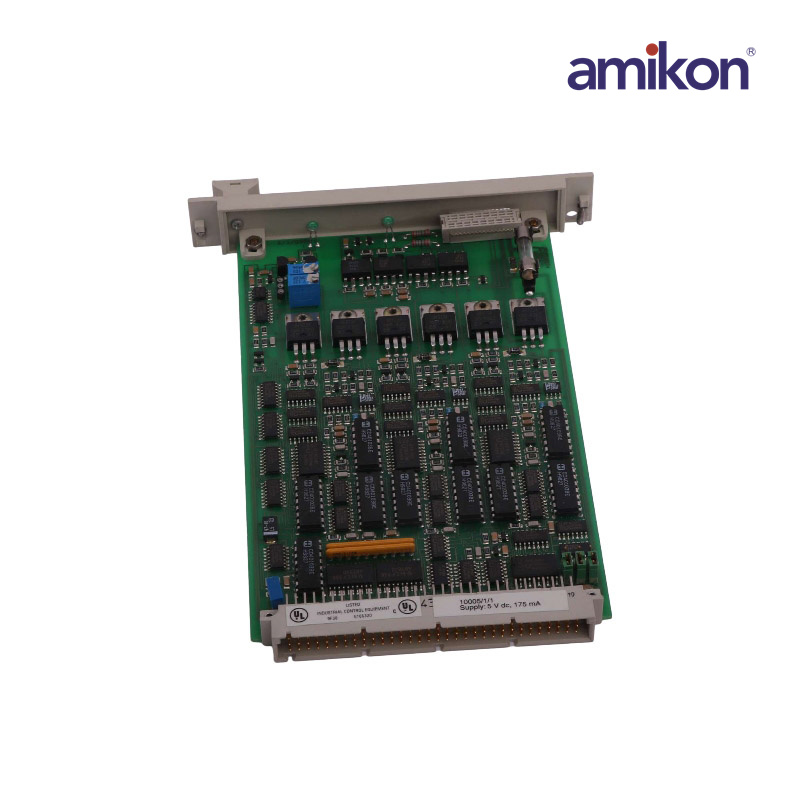

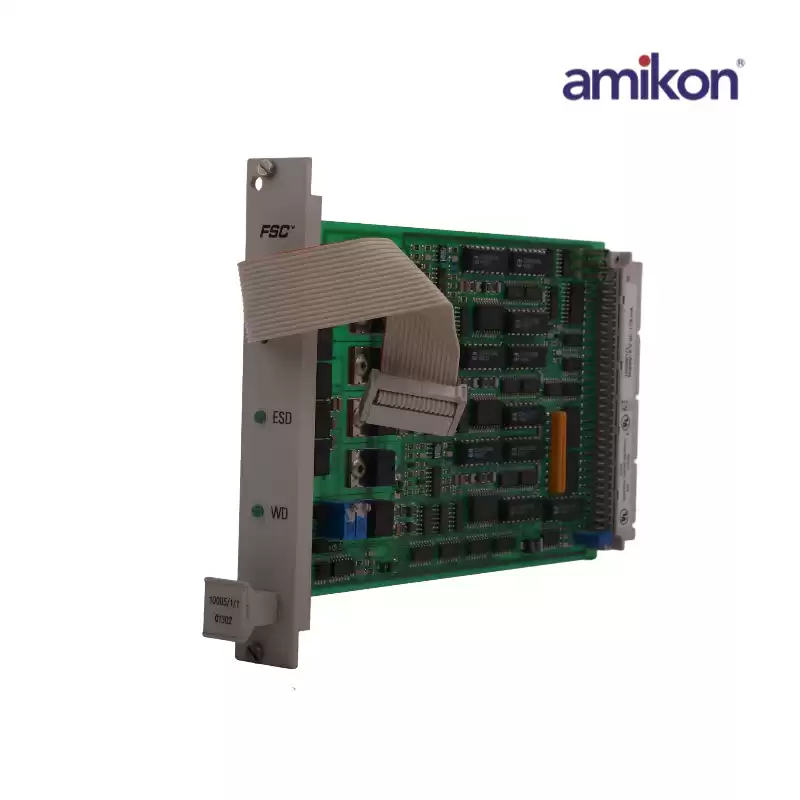

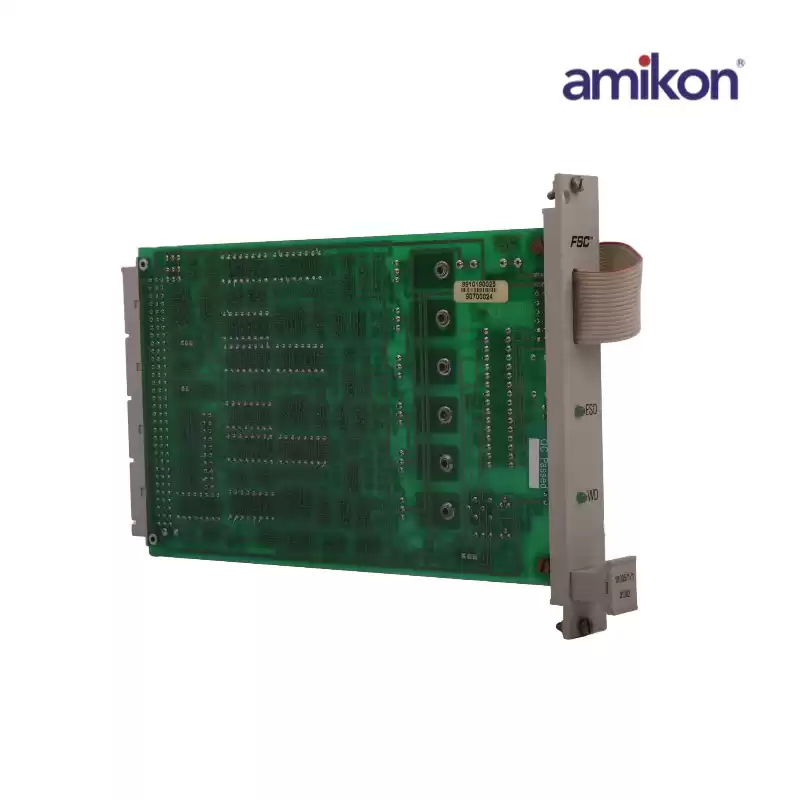

The 10005/1/1 is a WatchDog Module. The maximum WDG OUT output current is 900 mA (fuse 1A) 5 Vdc. If the number of output modules on the same 5 Vdc supply require a higher current (total of WD input currents of the output modules), then a watchdog repeater (WDR, 10302/1/1) must be used, and the load must be divided over the WD and the WDR.In order to be able to test the WD module for all functions, the WD module itself is a 2-out-of-3-voting system. Each section monitors the parameters described above.
ESD input to de-energize the watchdog output independently from the processor. This ESD input is 24 Vdc and galvanically isolated from the internal 5 Vdc.The application loop minimum execution time in order to detect if the processor is executing its program correctly and is not skipping program parts,5 Vdc voltage monitoring for overvoltage and undervoltage (5 Vdc ± 5 %).
|
