Technical Specifications for 10005/1/1
|
Manufacturer
|
Honeywell
|
|
Condition
|
100% New Original
|
|
Brand
|
Honeywell
|
Software versions
|
all
|
|
Part Number
|
10005/1/1
|
Power requirements
|
5 Vdc
|
|
Product Name
|
WatchDog Module
|
Reset input
|
24 Vdc 10 mA
|
|
Manufacture Year
|
2021
|
Space requirements
|
4 TE, 3 HE
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|
About 10005/1/1
|

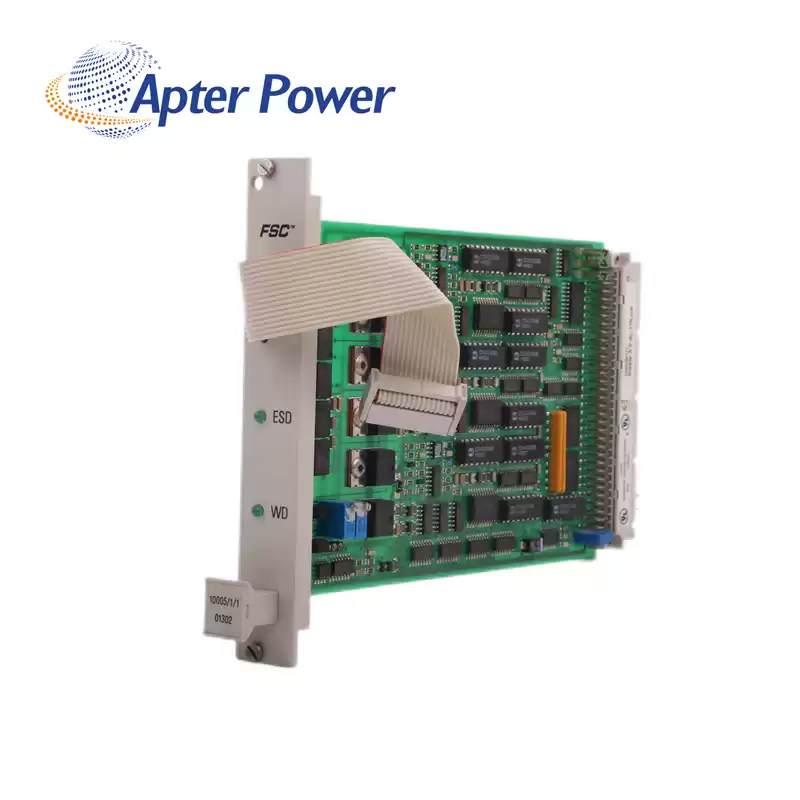

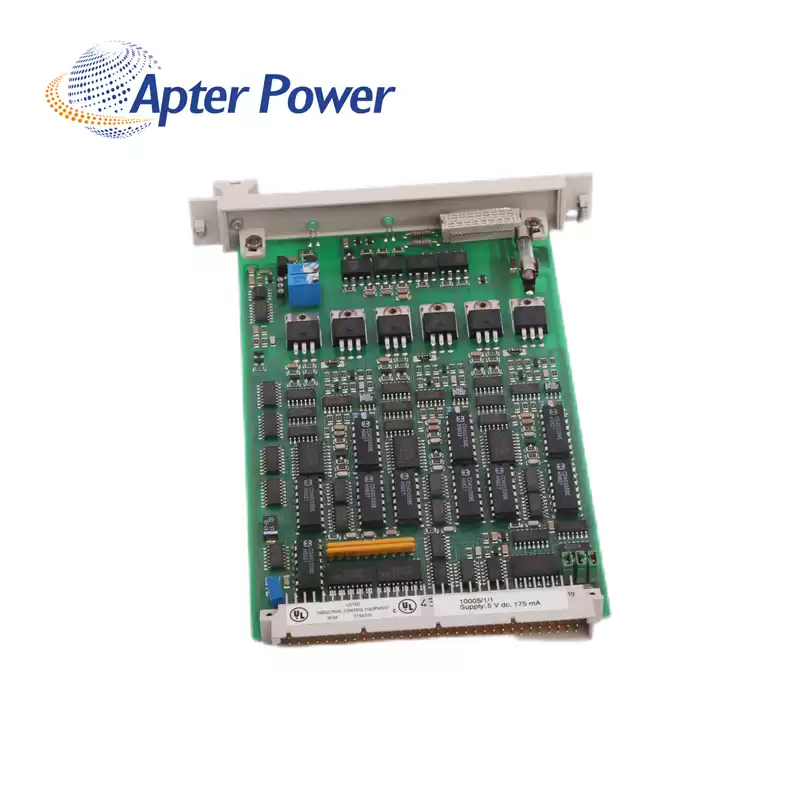

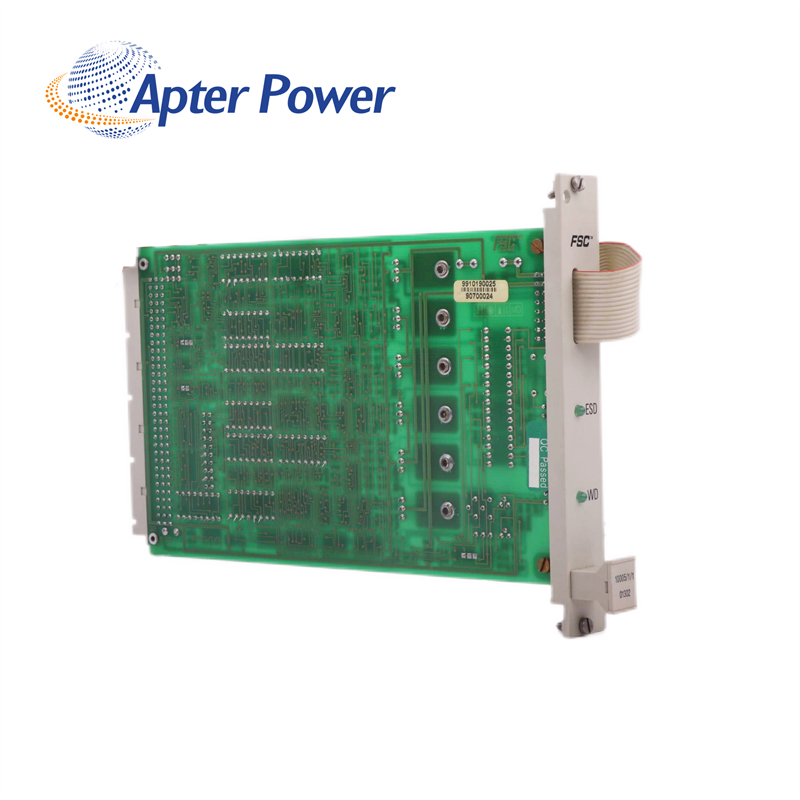

The 10005/1/1 is a WatchDog Module. The maximum WDG OUT output current is 900 mA (fuse 1A) 5 Vdc.
If the number of output modules on the same 5 Vdc supply require a
higher current (total of WD input currents of the output modules), then
a watchdog repeater (WDR, 10302/1/1) must be used, and the load
must be divided over the WD and the WDR.In order to be able to test the WD module for all functions, the WD
module itself is a 2-out-of-3-voting system. Each section monitors the
parameters described above.
ESD input to de-energize the watchdog output independently from
the processor. This ESD input is 24 Vdc and galvanically isolated
from the internal 5 Vdc.The application loop minimum execution time in order to detect if
the processor is executing its program correctly and is not skipping
program parts,5 Vdc voltage monitoring for overvoltage and undervoltage (5 Vdc
± 5 %).
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
