Category
|
Details
|
|
Manufacturer
|
Honeywell
|
|
Product No
|
10006/2/1
|
|
Product Type
|
3400310 Diagnostic and Battery Module (DBM)
|
|
Description
|

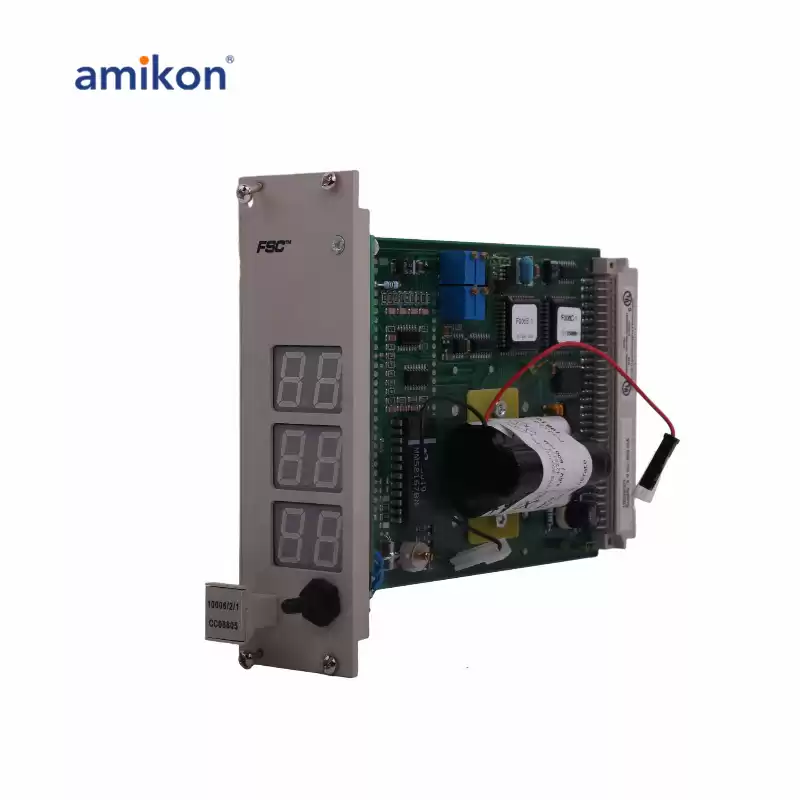

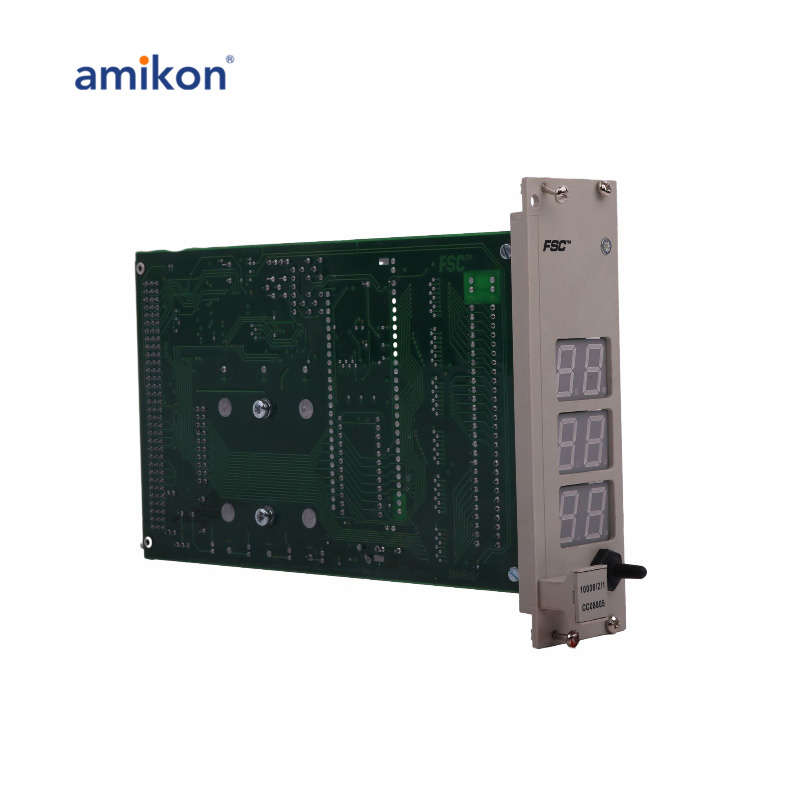

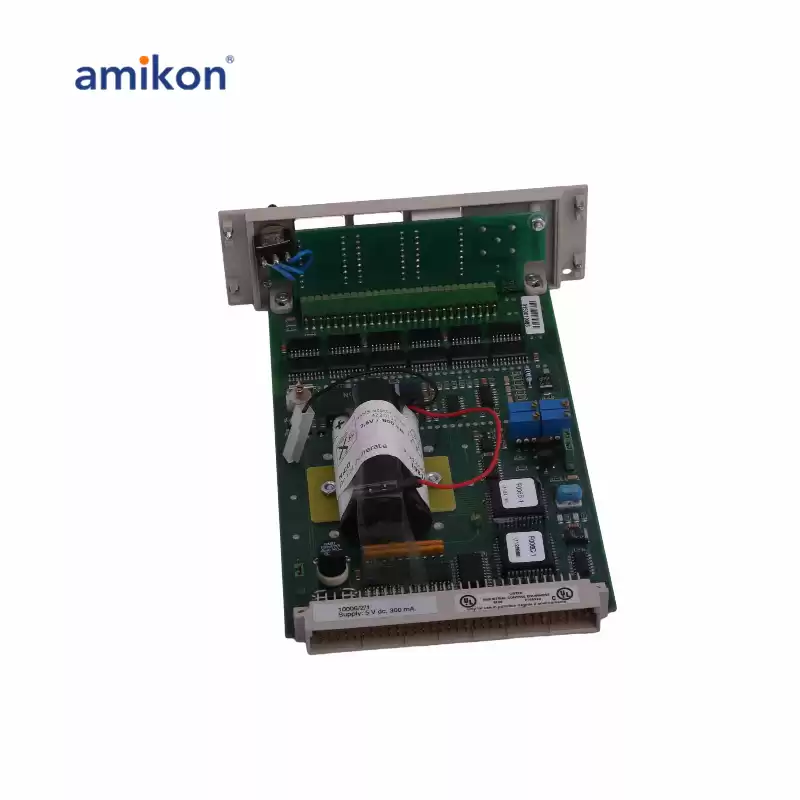

The diagnostic and battery module (DBM) 10006/2/1 provides a low-cost interface for diagnosing the FSC system
|
|
Type Number
|
10006/2/1 08801
|
|
Approvals
|
CE, TÜV, UL
|
|
Software Versions
|
≥ 2.90
|
|
Space Requirements
|
8 TE, 3 HE (= 8 HP, 3U)
|
|
Time Drift
|
< 1 sec/day
|
|
Power Requirements
|
5 Vdc 300 mA
|
|
Ripple Content
|
< 50 mV p-p
|
|
Back-up Capacity
|
0.5 Ah
|
|
Special Feature
|
Improved noise immunity for modules with suffix code 08801
|
|
Weight
|
0.24 Kg
|
The 10006/2/1 DBM module is a diagnostic and monitoring component for the FSC system, capable of displaying key system parameters. It provides real-time monitoring of temperature values measured by two independent sensors inside the Central Part, as well as the 5 Vdc power level and battery voltage. Configurable high and low alarm and trip points for temperature measurements can be set using the 'Configure FSC System' program. Additionally, the module features a real-time clock that displays the current date and time, which can also be accessed by the application program. The front panel displays diagnostic messages and fault information detected by the module's routines, ensuring efficient system maintenance and troubleshooting.
