The Central Part (CP) of the FSC system is connected to the I/O level via the vertical bus driver (VBD) modules, which are located in the Central Part rack. A maximum of 14 vertical bus drivers can be installed per Central Part. Each vertical bus driver can support up to 10 horizontal bus driver (HBD) modules.
|
|
|

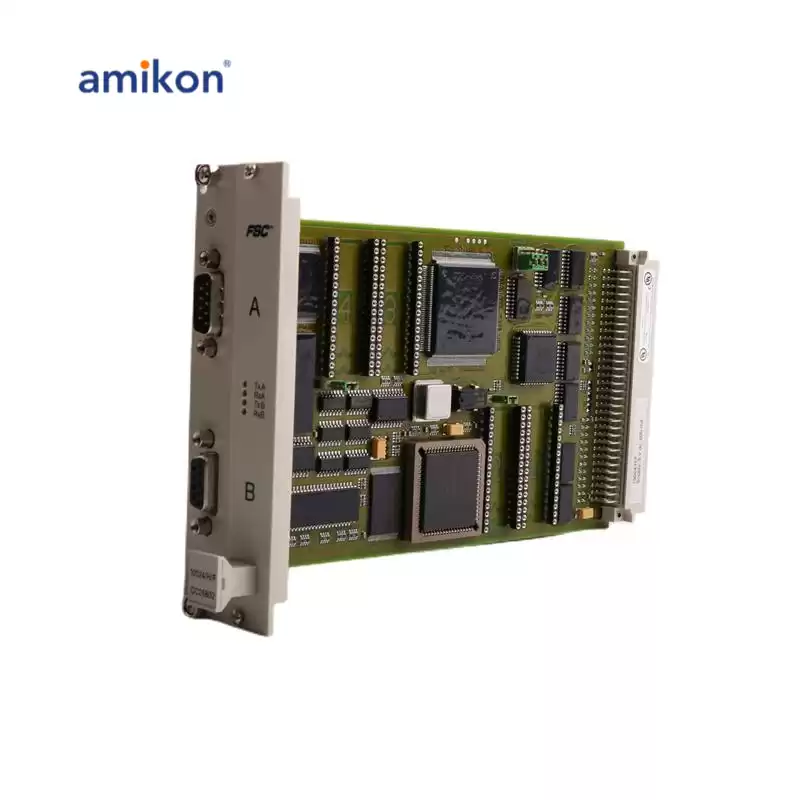

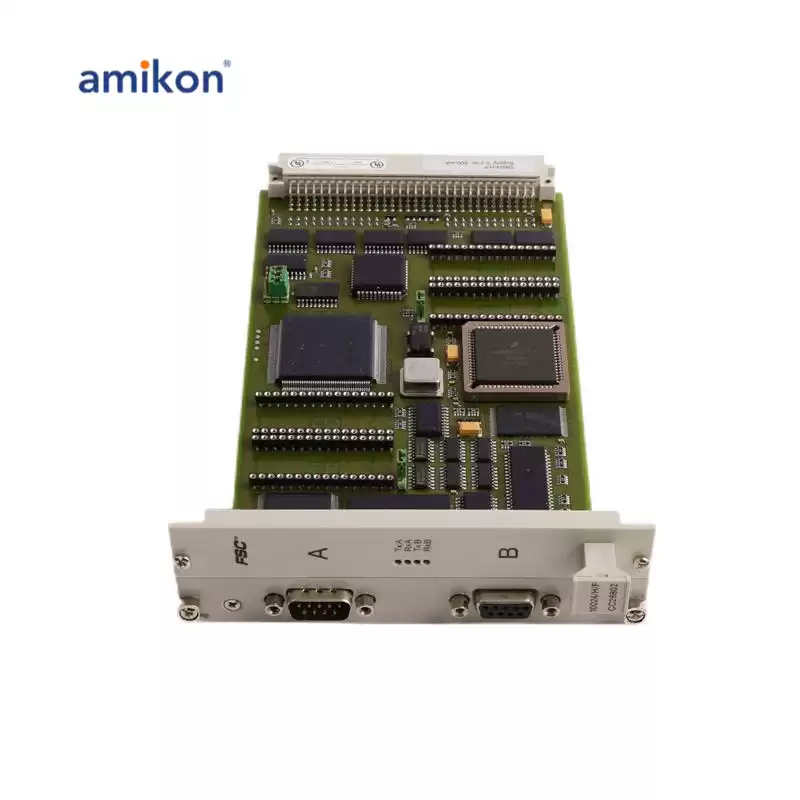

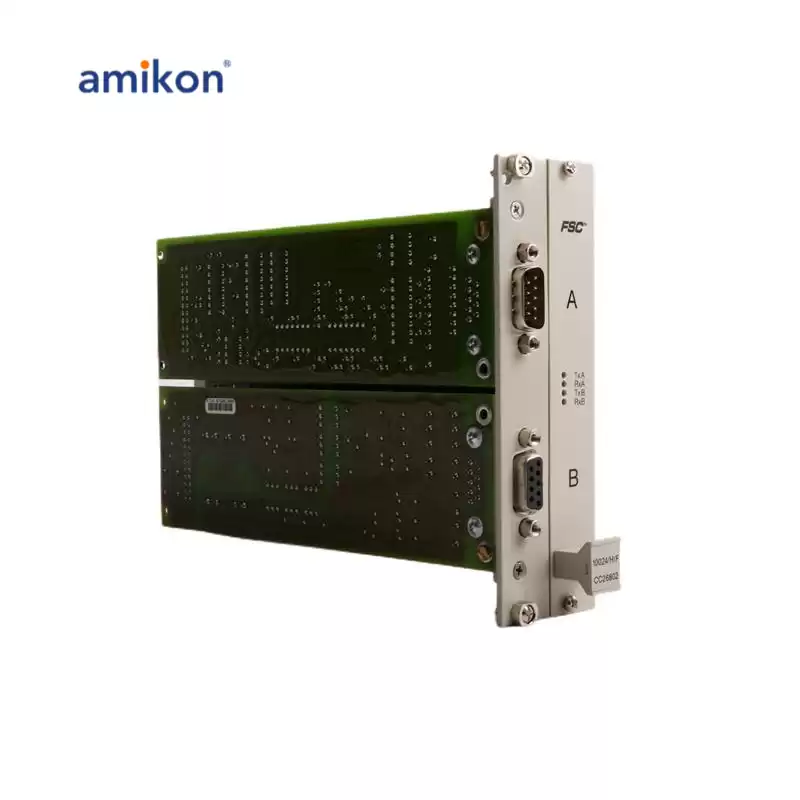

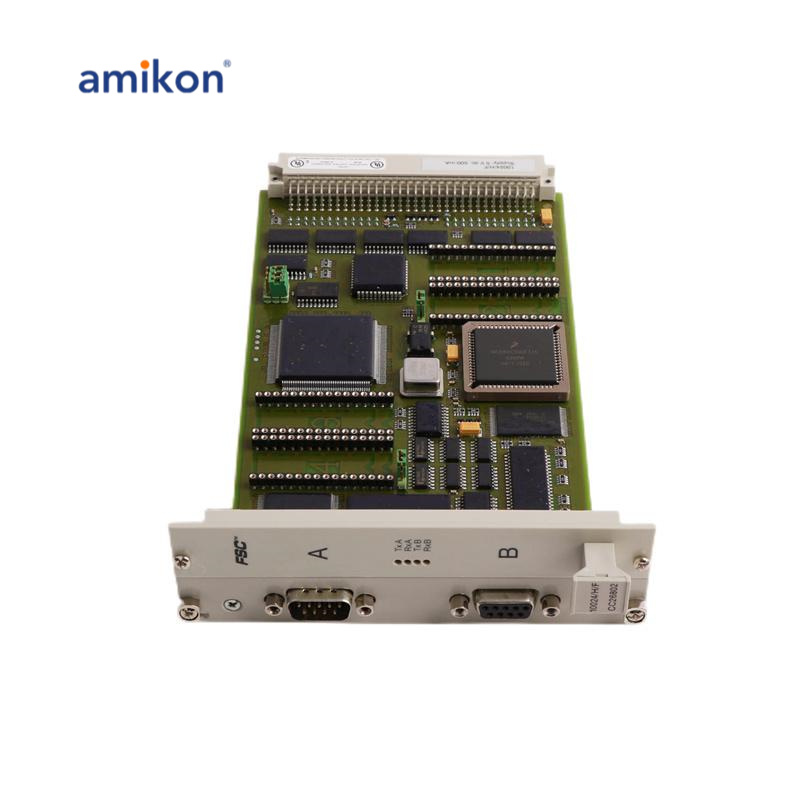

10024/H/F Data sheet
|
Supports up to 8 RS-232C communication channels Provides high-speed communication with a variety of devices. Configurable software Default selection that holds last state operation
|
|
Enhanced features compared to the 10024/I/F module: Support for programmable baud rates.Support for hardware handshaking Support for modem control signals.
|
|
The maximum distance between a vertical bus driver and any I/O rack on the vertical bus is 5 m (16.4 ft)
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
