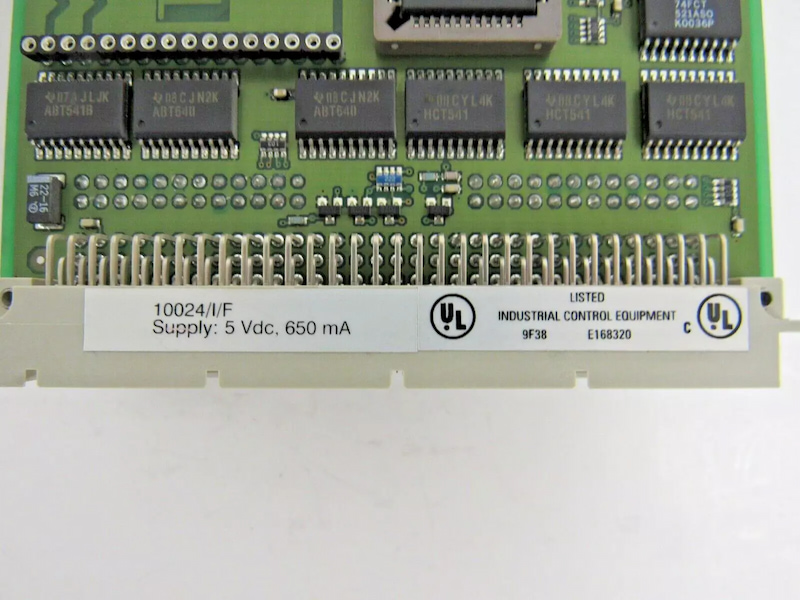

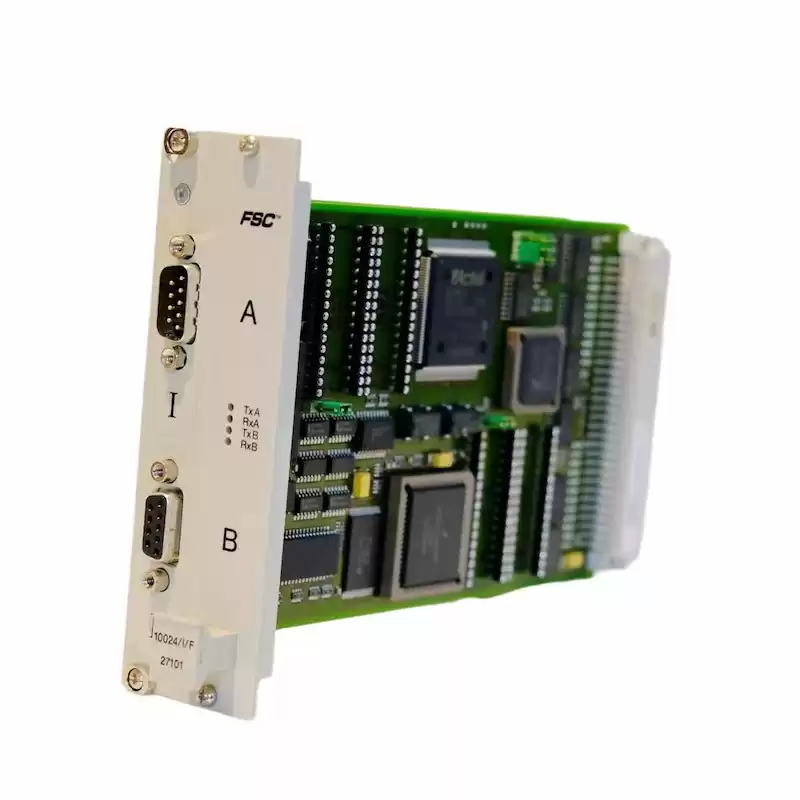

Honeywell 10024/I/F Enhanced Communication Module

Honeywell 10024/I/F Enhanced Communication Module

The Communication Module allows the FSC system to exchange information with other computer equipment via serial communication links. Each Central Part can accommodate up to four communication modules, providing a maximum of eight communication links per Central Part. Dedicated modules are available which provide communication capabilities with other systems:

• the FSC Safety Manager Module (FSC-SMM), which integrates the FSC system into the Universal Control Network

  (UCN) of Honeywell's TotalPlant Solution (TPS) system, and

• the PlantScape Ethernet interface module, which integrates the FSC system into Honeywell's PlantScape system.

All communication interfaces are galvanically or optically isolated. If the FSC configuration contains redundant Control Processors, the system supports redundant communication. Each Central Part then has its dedicated connection to the communication peer system.

Technical Specifications
