Honeywell 10100/2/1 Horizontal Bus Driver Module

The Honeywell 10100/2/1 is a horizontal bus driver module that is part of the Honeywell Experion PKS DCS system. Topteng Technology understands the importance of your needs and is committed to minimizing lead times.

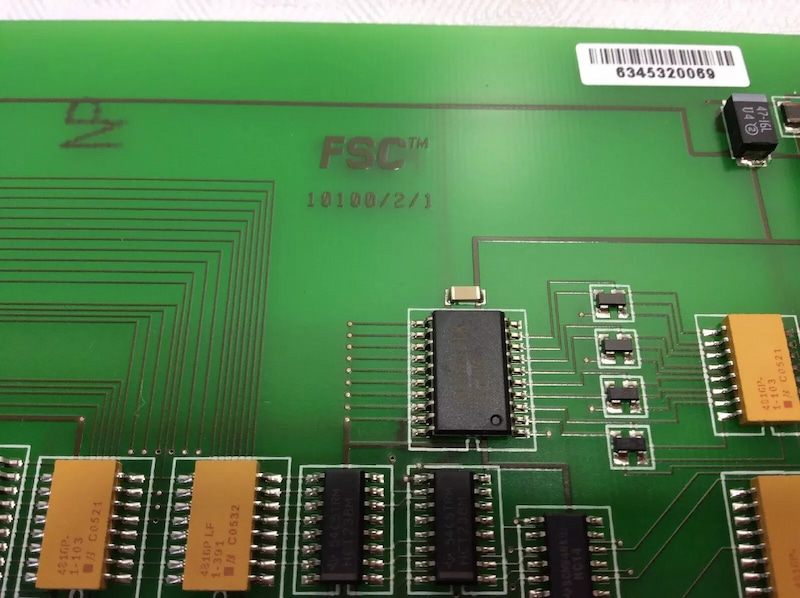

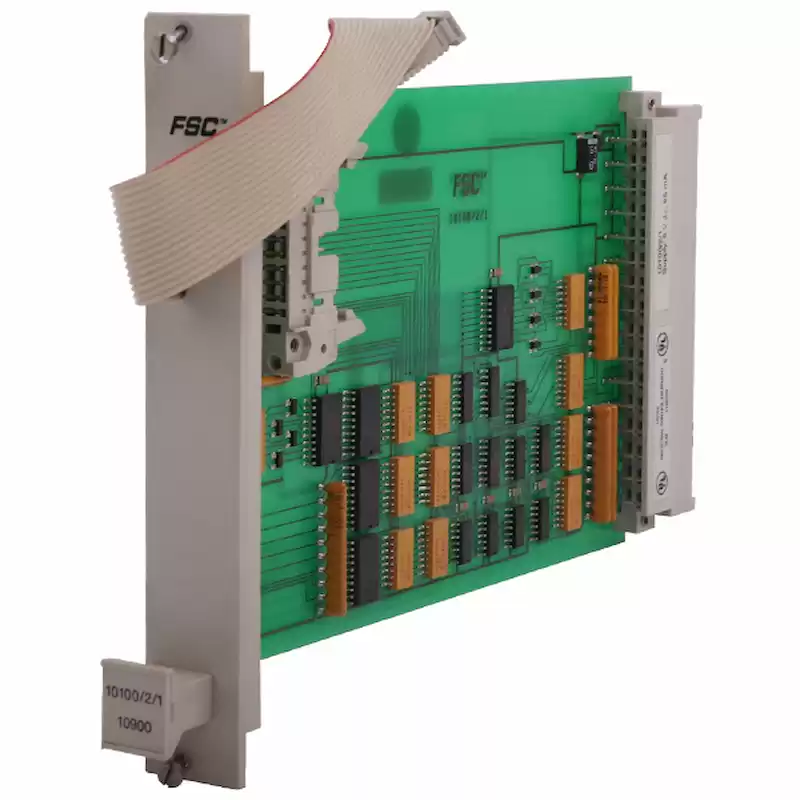

10100/2/1 Horizontal bus driver (HBD)



The horizontal bus driver (HBD) module is a basic module which is installed in the I/O racks.



The horizontal bus driver consists of two parts:



• electronic part (10100/2/1), and



• a A1, A21 or A22 flat cable.



The vertical bus flat cable between the Central Part and the I/O rack is connected to the HBD module via the back connector CN1.



The flat cable which extends from the front of the module connects the HBD module to the horizontal bus above the I/O rack.



The address selection lines of the I/O modules terminate on the back of the horizontal bus(es) via a flat cable on connector CN3.





The HBDs are used as follows:



− 10100/2/1 with flat cable A1 used for non-redundant I/O



− 10100/2/1 with flat cable A21 used for redundant I/O (one rack per HBD)



− 10100/2/1 with flat cable A22 used for redundant I/O (two racks per HBD)



The HBD may be replaced with the power switched on, but the Central Part will shut down if the HBD is safety-related.



Honeywell 10100/2/1

Technical Specifications

Manufacturer Honeywell
Part Number 10100/2/1
Ordering Information 10100/2/1
Product Catalog FSC system
Description Horizontal Bus Driver Module
Voltage 5 Vdc
Current 65 mA
Dimensions 20.3 mm x 15.2 mm x 2.5 mm
Weight 0.2 kg
