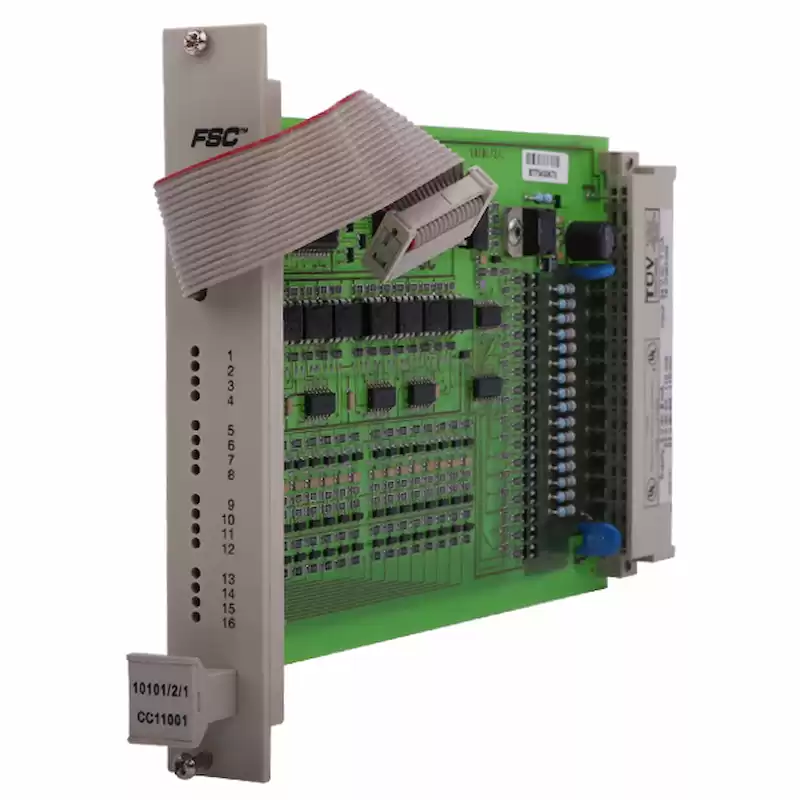

10101/2/1 Fail-safe digital input module
(24 Vdc, 16 channels)
The fail-safe digital input module 10101/2/1 has sixteen 24 Vdc digital input channels. The input stage of the module is of a 'fail-to-safe' nature. This means that a component failure results in a de-energized input signal to the processor, which is the safe condition in a normally energized system.
The remaining logic circuitry on the module is completely covered by the self-test functions of the system. Within the configured process safety time, the modules are tested for:
• ability to receive logic level '0' signals,
• ability to receive logic level '1' signals, and
• crosstalk between inputs.
Technical Specifications
| Manufacturer |
Honeywell |
| Part Number |
10101/2/1 |
| Ordering Information |
10101/2/1 |
| Product Catalog |
FSC system |
| Description |
Fail-Safe Digital Input Module |
| Voltage |
24 Vdc |
| Current |
110 mA |
| Dimensions |
20.3 mm x 15.2 mm x 2.5 mm |
| Weight |
0.2 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
