Technical Specifications for 10201/2/1
|
Manufacturer
|
Honeywell
|
|
Condition
|
100% New Original
|
|
Brand
|
Honeywell
|
Off current
|
< 0.1 mA
|
|
Part Number
|
10201/2/1
|
WDG input current
|
8 mA
|
|
Product Name
|
Digital Output Module
|
Software versions
|
≥ 3.00
|
|
Manufacture Year
|
2021
|
Maximum current
|
550 mA
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|
About 10201/2/1
|

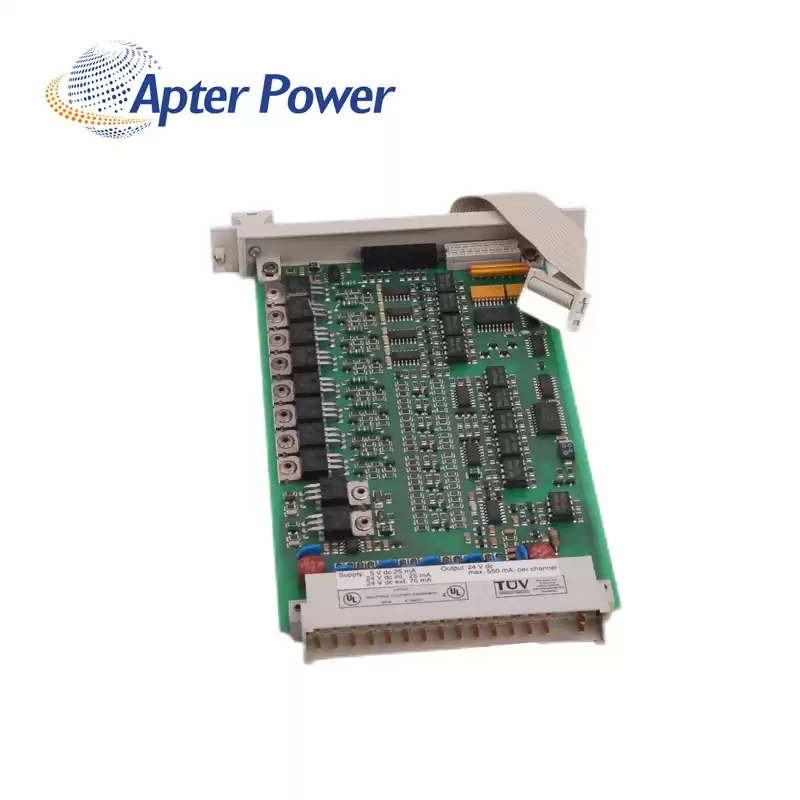

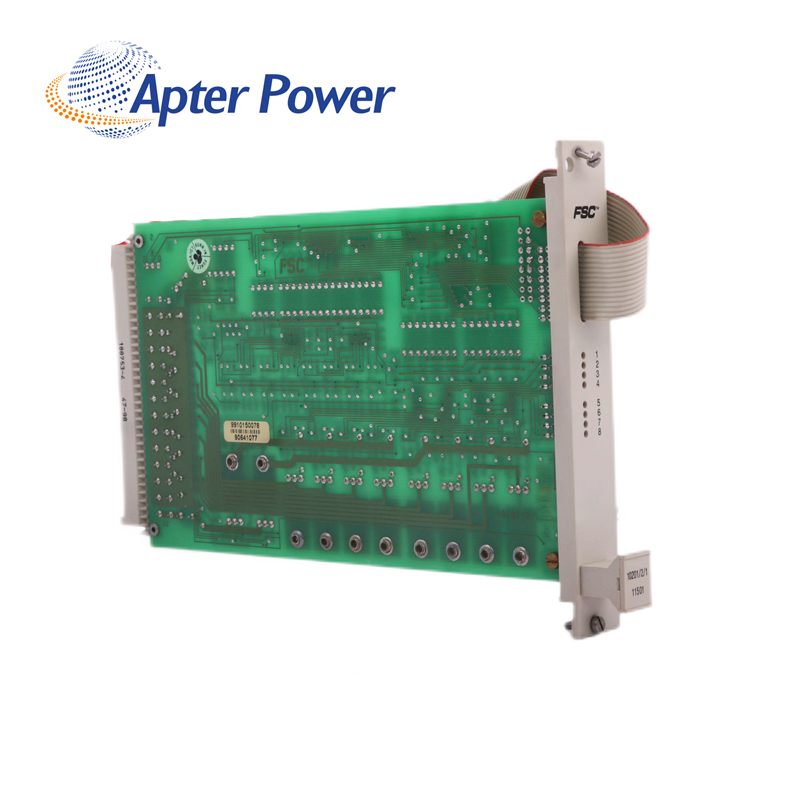

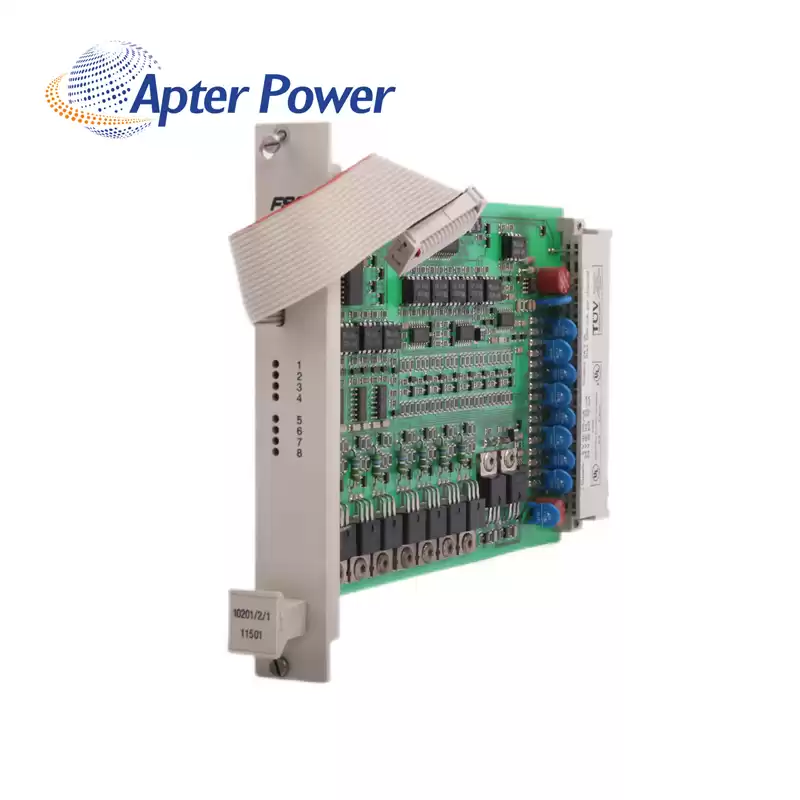

The fail-safe digital output module 10201/2/1 has eight 24 Vdc,
550 mA output channels to drive loads up to 13 W.
These loads may be resistive (e.g. lamps) or inductive (e.g. solenoids).
For inductive loads, a suppression diode is included on each output.
The outputs, including the suppression diodes, are fully tested and may
therefore be used for fail-safe applications.
The outputs are split into two groups of four outputs each. Each group
has its own secondary means of de-energization. This increases the
shutdown selectivity in case of a channel failure.
The secondary means of de-energization enables the watchdog and/or
the processor to de-energize the outputs, irrespective of the result of
the application function.
Within the configured process safety time, the outputs are tested for:
• ability to de-energize,
• ability to de-energize the group (via secondary means),
• crosstalk between outputs, and
• functioning of the suppression diodes.
|
