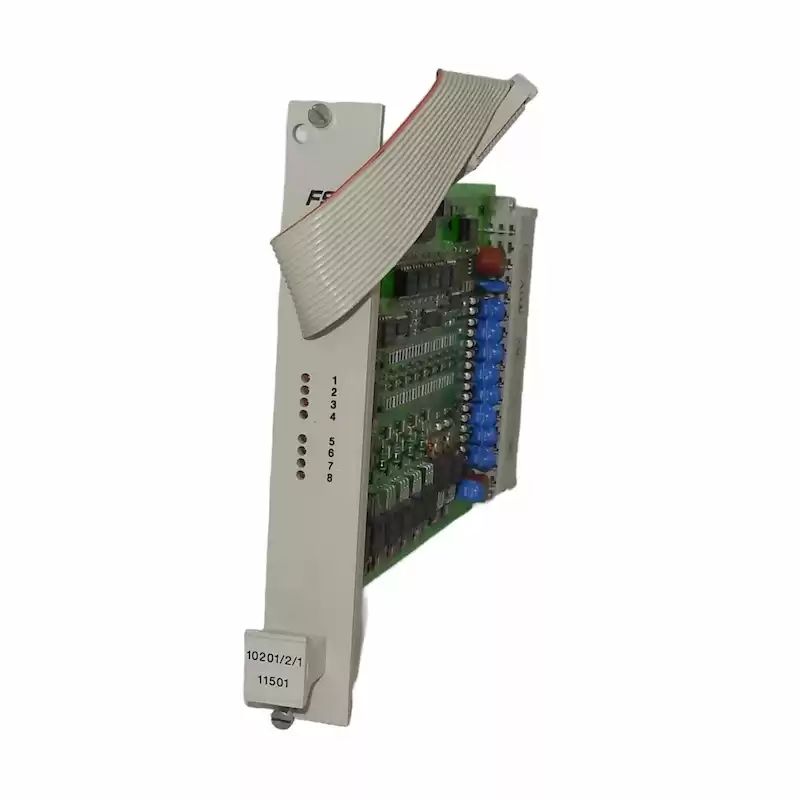

10201/2/1 Fail-safe digital output module
(24 Vdc, 0.55 A, 8 channels)
The fail-safe digital output module 10201/2/1 has eight 24 Vdc,550 mA output channels to drive loads up to 13 W. These loads may be resistive (e.g. lamps) or inductive (e.g. solenoids). For inductive loads, a suppression diode is included on each output. The outputs, including the suppression diodes, are fully tested and may therefore be used for fail-safe applications.
Within the configured process safety time, the outputs are tested for:
• ability to de-energize,
• ability to de-energize the group (via secondary means),
• crosstalk between outputs, and
• functioning of the suppression diodes.
The outputs are split into two groups of four outputs each. Each group has its own secondary means of de energization. This increases the shutdown selectivity in case of a channel failure. The secondary means of de-energization enables the watchdog and/or the processor to de-energize the outputs, irrespective of the result of the application function.
Technical Specifications
| Manufacturer |
Honeywell |
| Part Number |
10201/2/1 |
| Ordering Information |
10201/2/1 |
| Product Catalog |
FSC system |
| Description |
Fail-Safe Digital Output Module |
| Voltage |
24 Vdc |
| Current |
550 mA |
| Dimensions |
20.3 mm x 15.2 mm x 2.5 mm |
| Weight |
0.2 kg |
