Manufacturer/Brand：Honeywell
|
Product Package：Serial Interface
|
|
Part Number：10201/2/1 FC-SDO-0824
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Dimensions ：2cmx19cmx12.9cm
|
Weight:：0.15kg
|
|

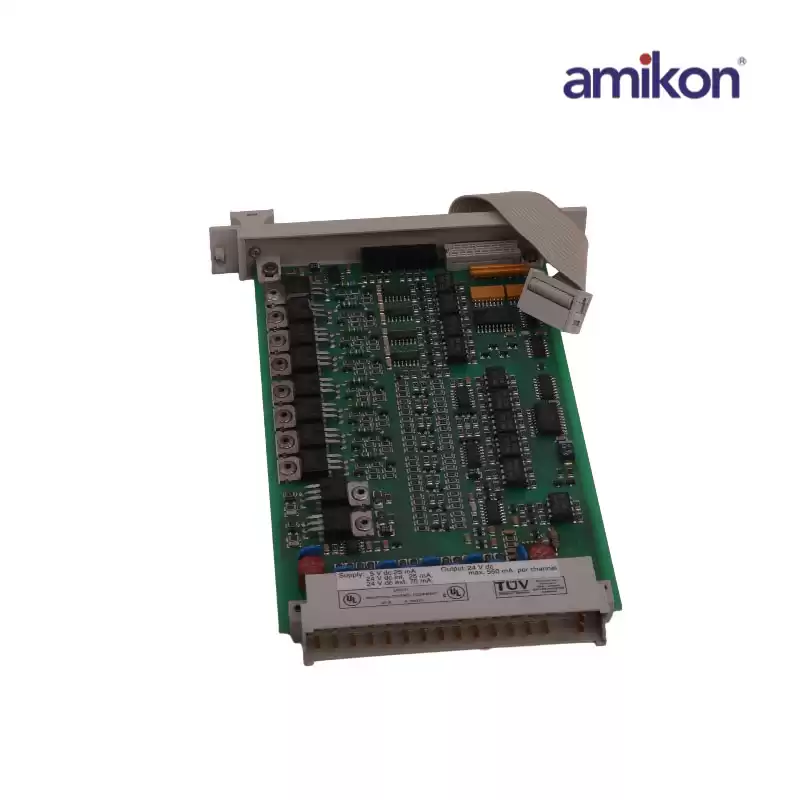

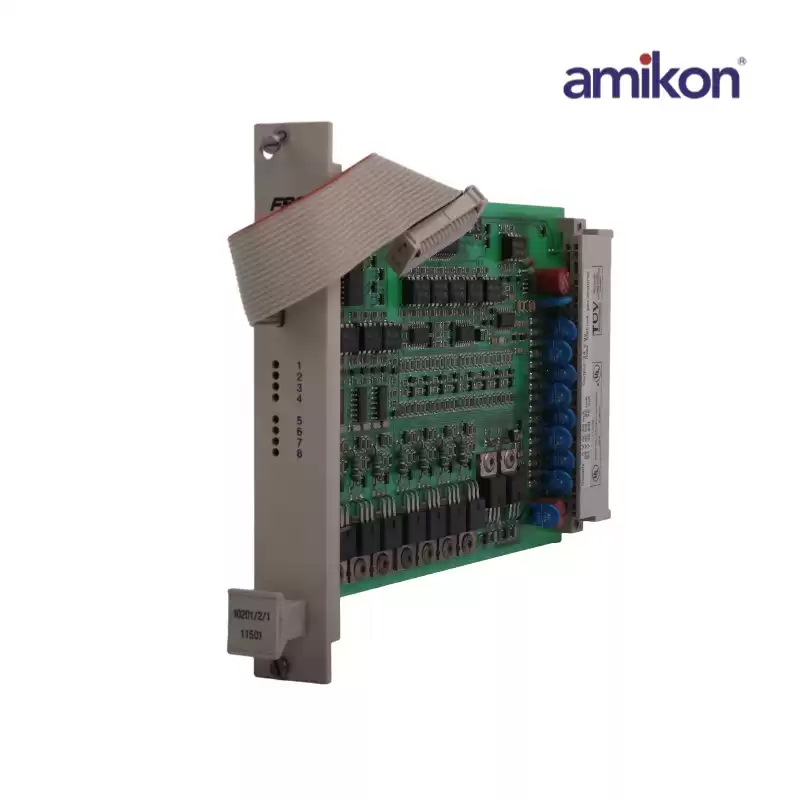

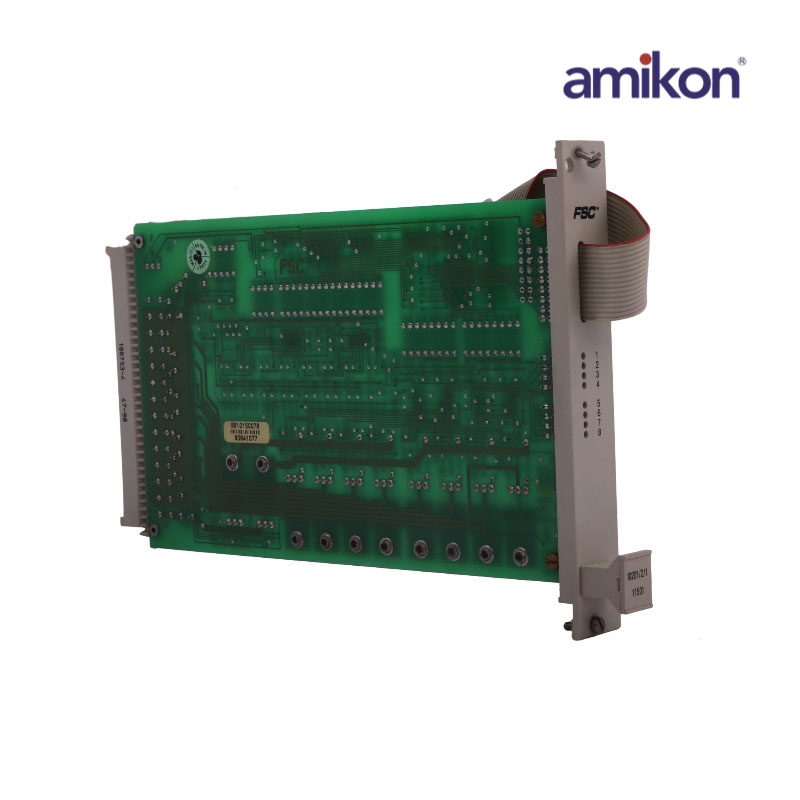

The fail-safe digital output module 10201/2/1 FC-SDO-0824 has eight 24 Vdc, 550 mA output channels to drive loads up to 13 W. These loads may be resistive (e.g. lamps) or inductive (e.g. solenoids). For inductive loads, a suppression diode is included on each output. The outputs, including the suppression diodes, are fully tested and may therefore be used for fail-safe applications.
The outputs are split into two groups of four outputs each. Each group has its own secondary means of de-energization. This increases the shutdown selectivity in case of a channel failure. The secondary means of de-energization enables the watchdog and/or the processor to de-energize the outputs, irrespective of the result of the application function.
|
