Manufacturer/Brand：Honeywell
|
Product Package：Serial Interface
|
|
Part Number：10209 2 1
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Dimensions ：2.5cmx12.7cmx17.8cm
|
Weight:：0.2KG
|
|

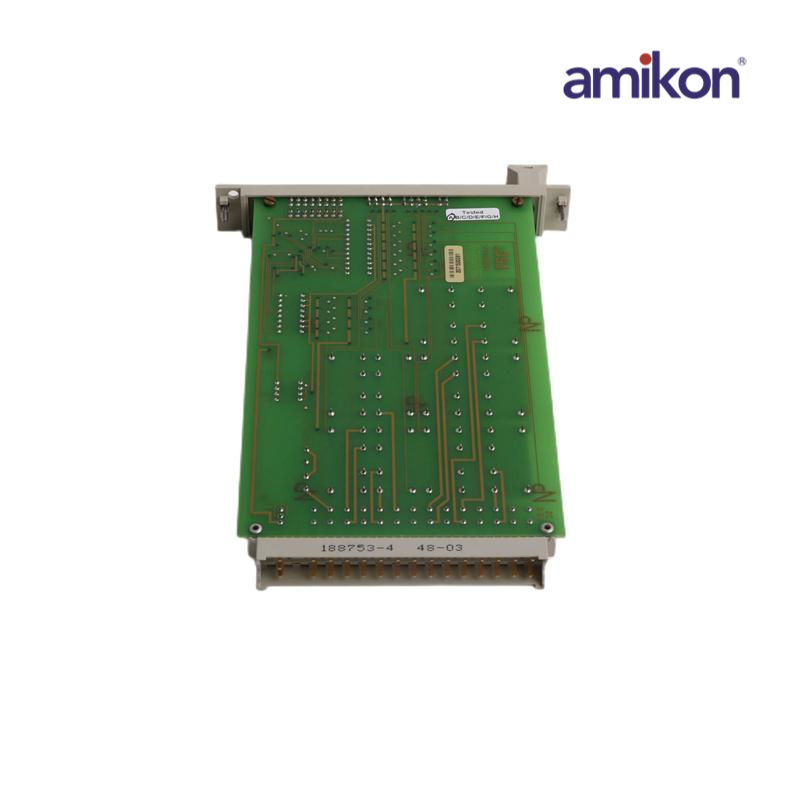

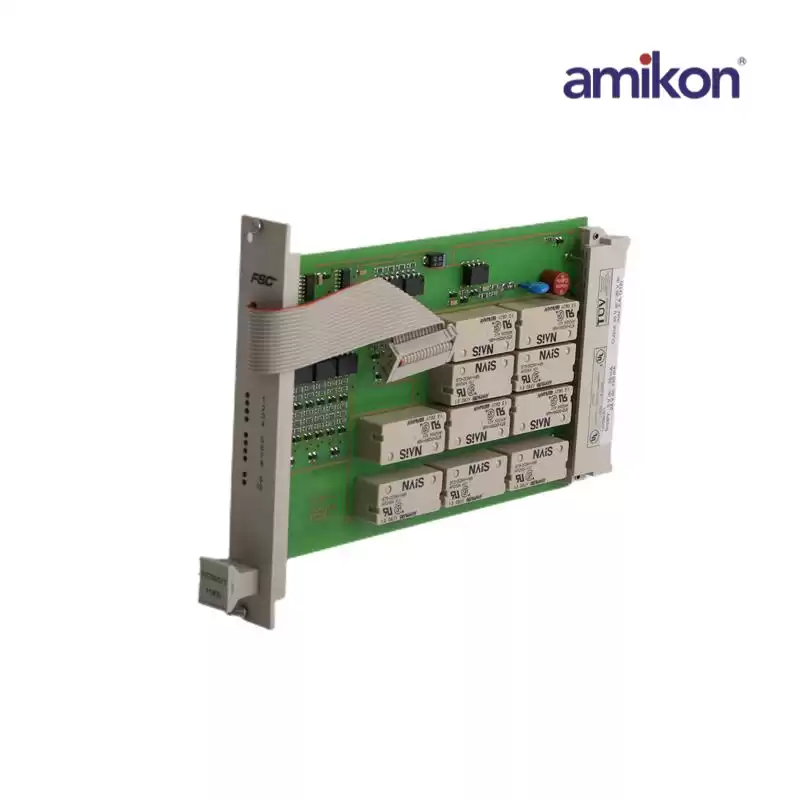

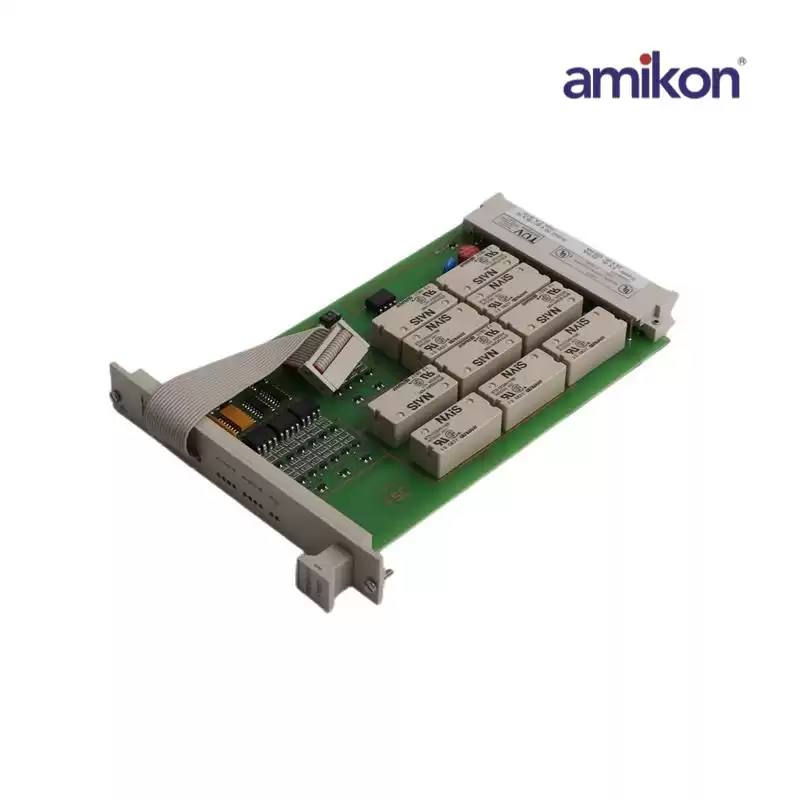

The relay output module 10209/2/1 has ten potential-free relay contact output channels to drive loads up to 70 W. These loads may be resistive (e.g. lamps) or inductive (e.g. solenoids). For inductive loads, a suppression diode must be mounted externally.
The outputs are not tested and may therefore not be used for fail-safe applications.The outputs are also controlled by the watchdog. This means that the relays de-energize if the system shuts down and the watchdog switches off.The maximum voltage on the relay contacts may be 36 Vdc to meet IEC 1010.
|
