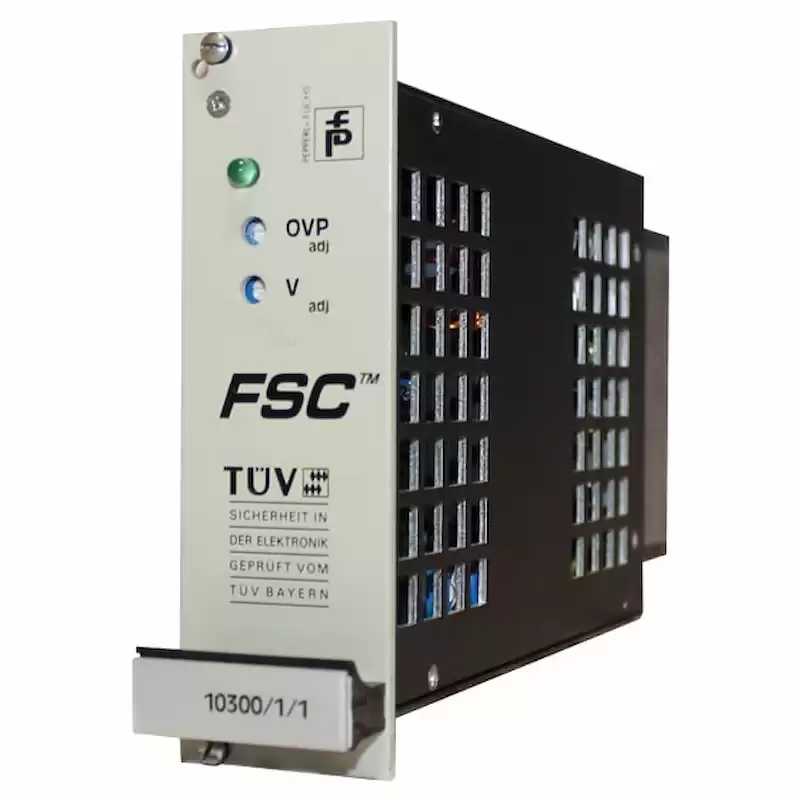

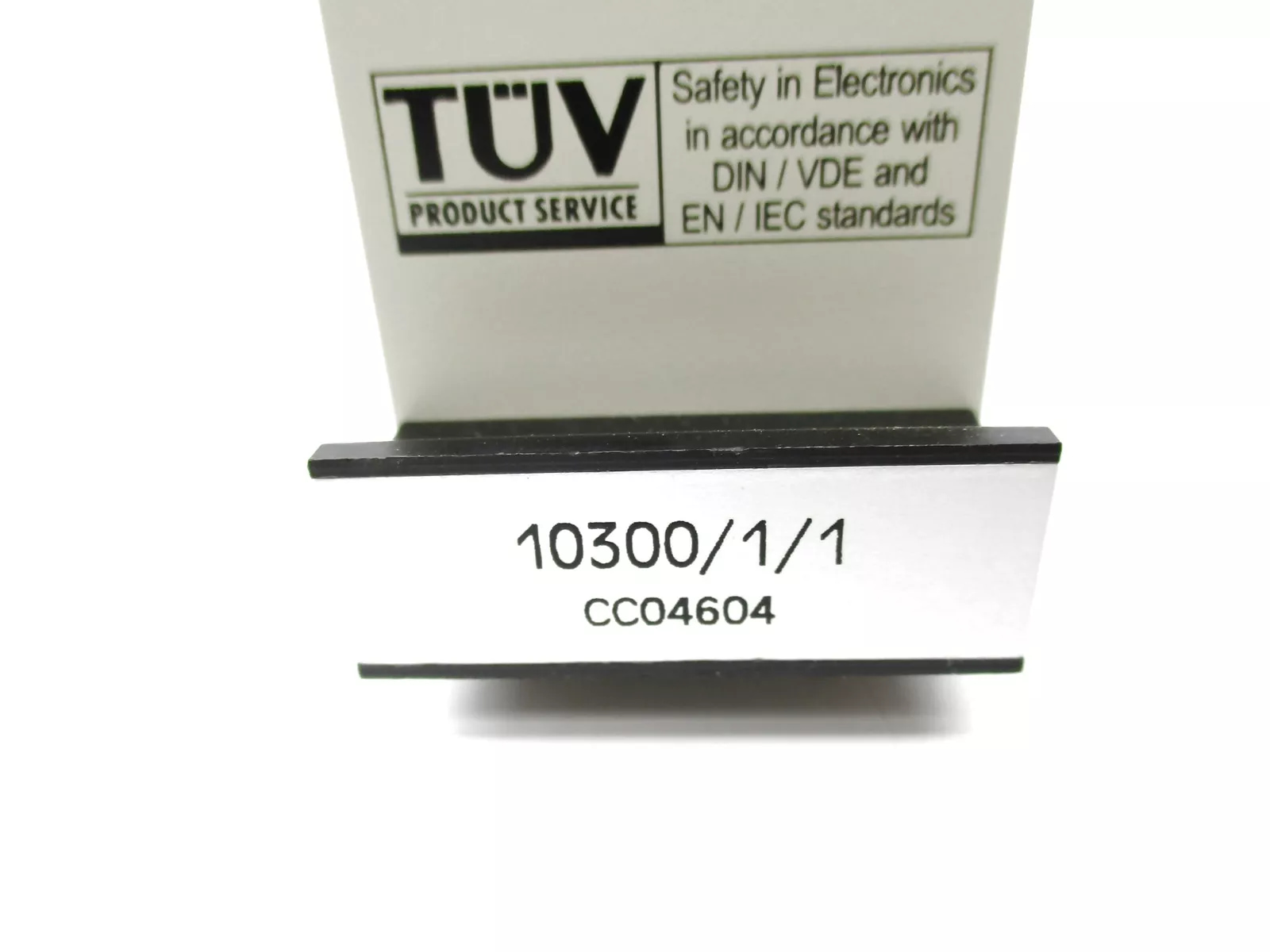

10300/1/1 24 Vdc to 5 Vdc/12 A converter
The supply voltage of the FSC system is 24 Vdc, which can be powered from the plant's 24 Vdc supply system with battery back-up. The FSC system uses an internal 5 Vdc to power the FSC modules. The 10300/1/1 DC/DC converter provides the internal 5 Vdc with galvanic isolation between the two supply voltages.
As the limits on the 5 Vdc power supply are very tight (± 5%), this module must be placed closely to the system bus (e.g. 12-SBUS). Use the sense wires correctly and use short wires of proper wire diameter to minimize voltage drop over the wiring. The minimum wire diameters for 'SUPPLY 5 VDC' and 'GND 5 VDC' to the system bus of the Central Part are as follows:
• up to 8 A: 2.5 mm² (AWG 14)
• up to 12 A: 6 mm² (AWG 10)
Technical Specifications
| Manufacturer |
Honeywell |
| Part Number |
10300/1/1 |
| Ordering Information |
10300/1/1 |
| Product Catalog |
FSC system |
| Description |
Converter Module |
| Voltage |
24 Vdc |
| Current |
12 A |
| Dimensions |
20.3 mm x 15.2 mm x 2.5 mm |
| Weight |
0.2 kg |
