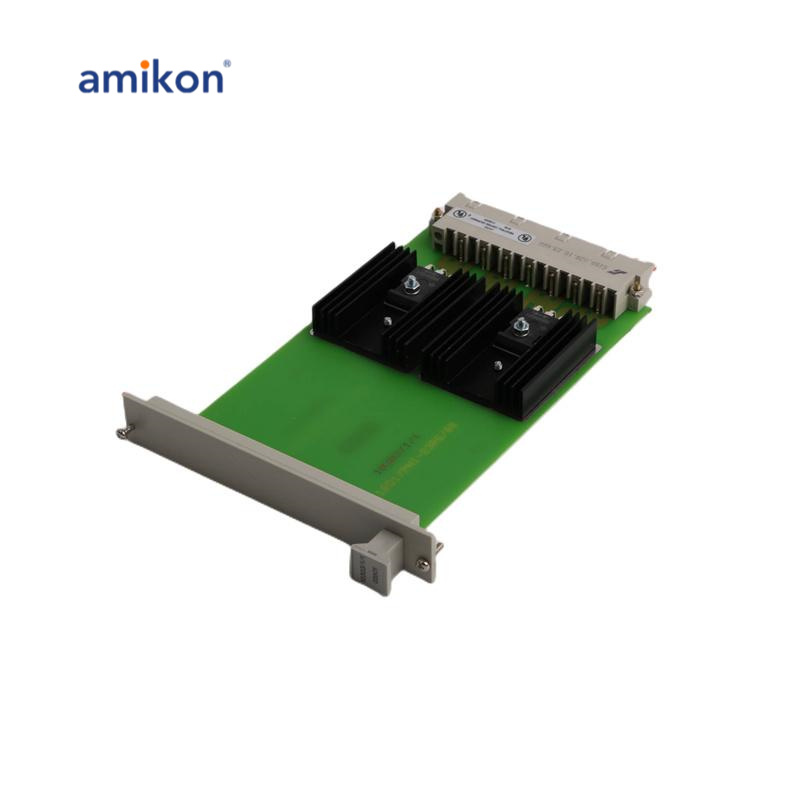

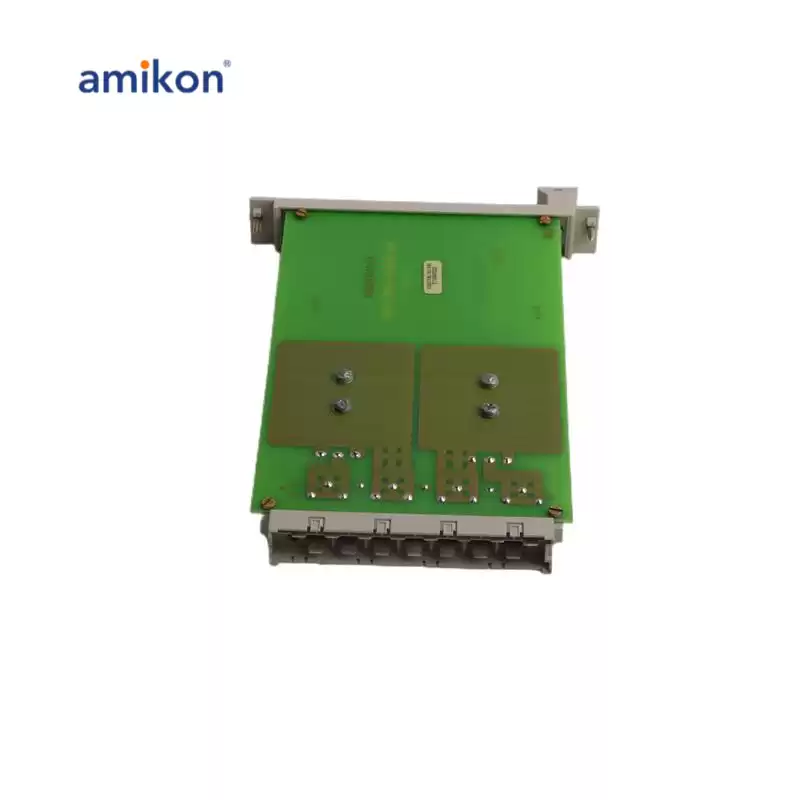

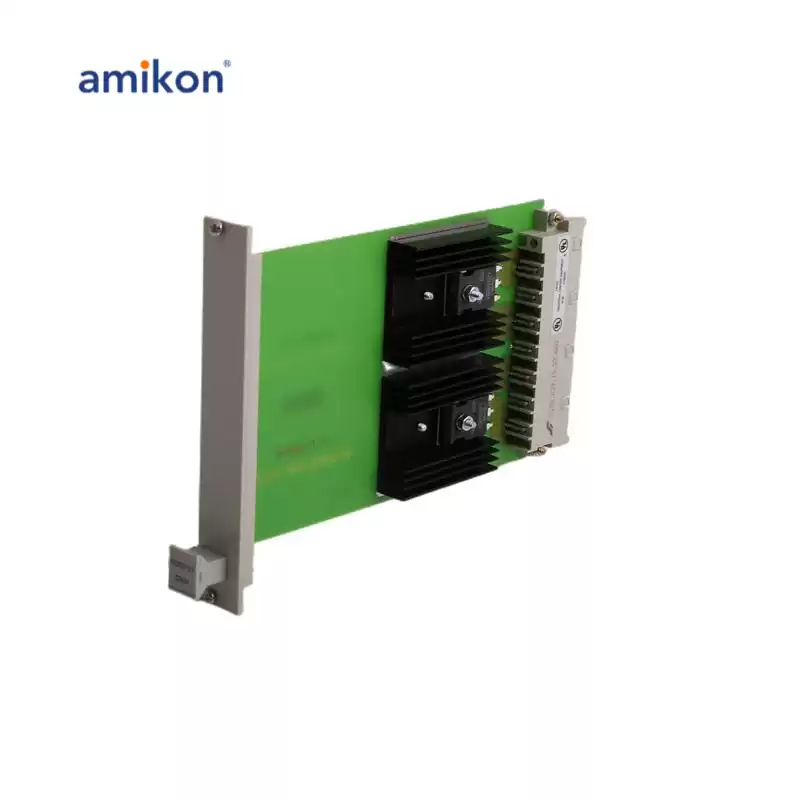

It is used to combine the output of the power supply units (PSUs) in the redundant Central Parts into one 5 Vdc supply for the non-redundant I/O part of the system. One power supply distribution module is required per PSU module.
|
|
|
10303/1/1 Data sheet
|
The power supply distribution module (PSD) 10303/1/1 is only used in configurations with redundant Central Parts and non-redundant I/O.
|
|
The power supply to the Central Part must also be routed through this module to create an equal voltage drop to the Central Part and I/O section.
|
|
As the limits on the 5 Vdc power supply are very tight (± 5%), it is required to place the PSD modules next to the PSU modules to reduce the voltage drop in the wiring.
|
|
