Technical Specifications for 10313/1/1
|
Manufacturer
|
Honeywell
|
|
Condition
|
100% New Original
|
|
Brand
|
Honeywell
|
Max. current
|
4 A
|
|
Part Number
|
10313/1/1
|
Power requirements
|
5 Vdc 25 mA
|
|
Product Name
|
Watchdog distribution module
|
Software versions
|
≥ 3.00
|
|
Manufacture Year
|
2021
|
WDG input current
|
4 mA
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|
About 10313/1/1
|

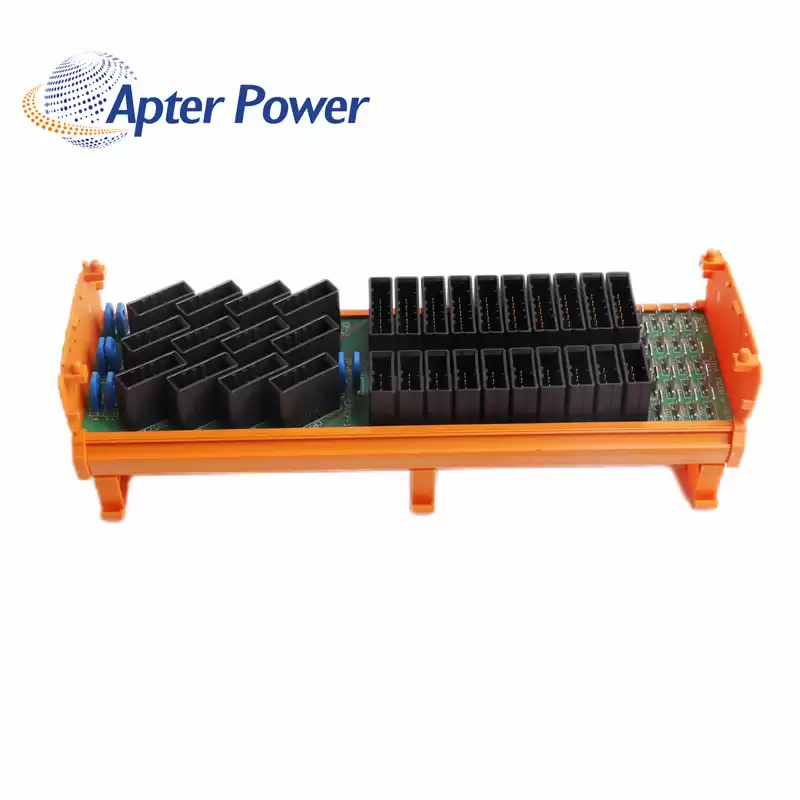

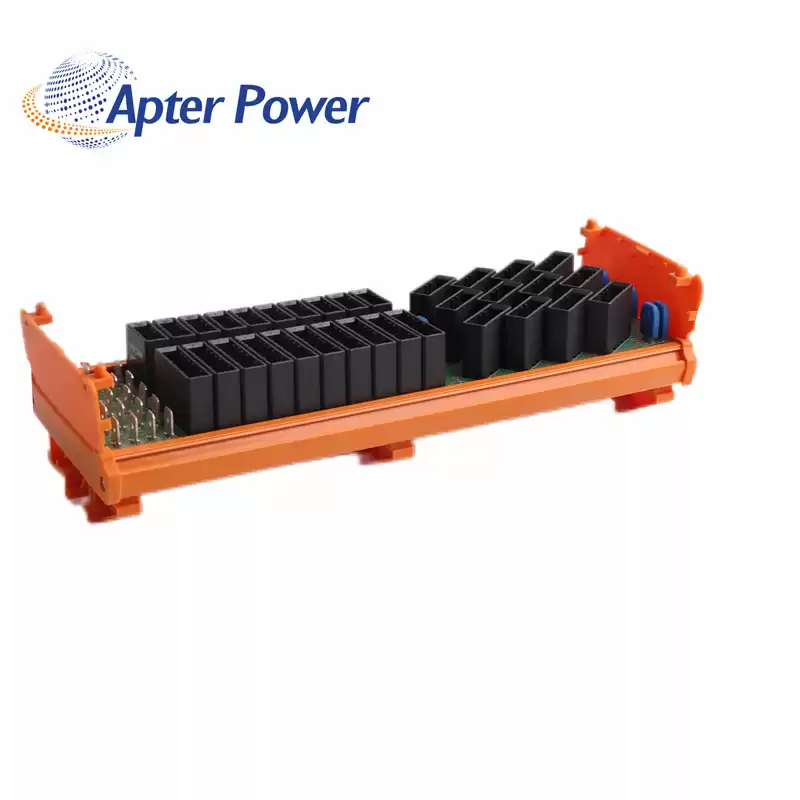

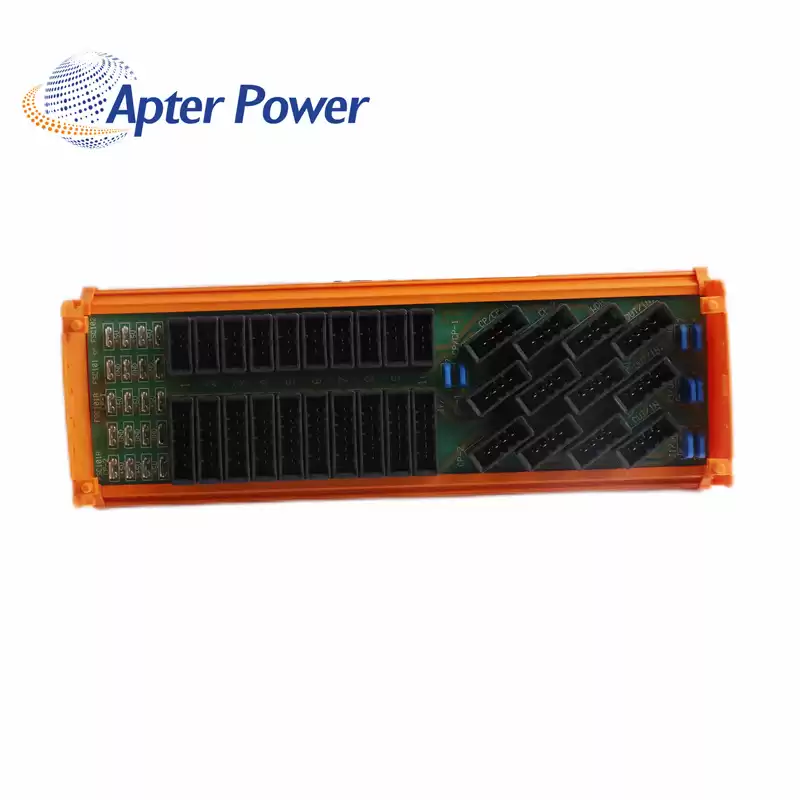

The 10313/1/1 module is used for the distribution of 5 Vdc and
watchdog (WD) signals in the FSC system. The 10313/1/1 module has the following connection facilities :
• ten connectors (RCN-1 to RCN-10) for connecting redundant I/O
backplanes (10315/1/1) (see Figure 2),
• ten connectors (SCN-1 to SCN-10) for connecting non-redundant
I/O backplanes (10314/1/1) (see Figure 3),
• 'FSC101 or FSC102' fastons for the incoming 5 Vdc power (for
non-redundant I/O backplanes),
• 'FSC101R CP-1' and 'FSC101R CP-2' fastons for the incoming
5 Vdc power (for redundant I/O backplanes),
• connectors for directly connecting the watchdog repeaters (WDRs),
and
• connectors for directly connecting the 10005/O/1 modules.
• connectors for linking an additional 10313/1/1 module in a separate
cabinet (next 'section').
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
