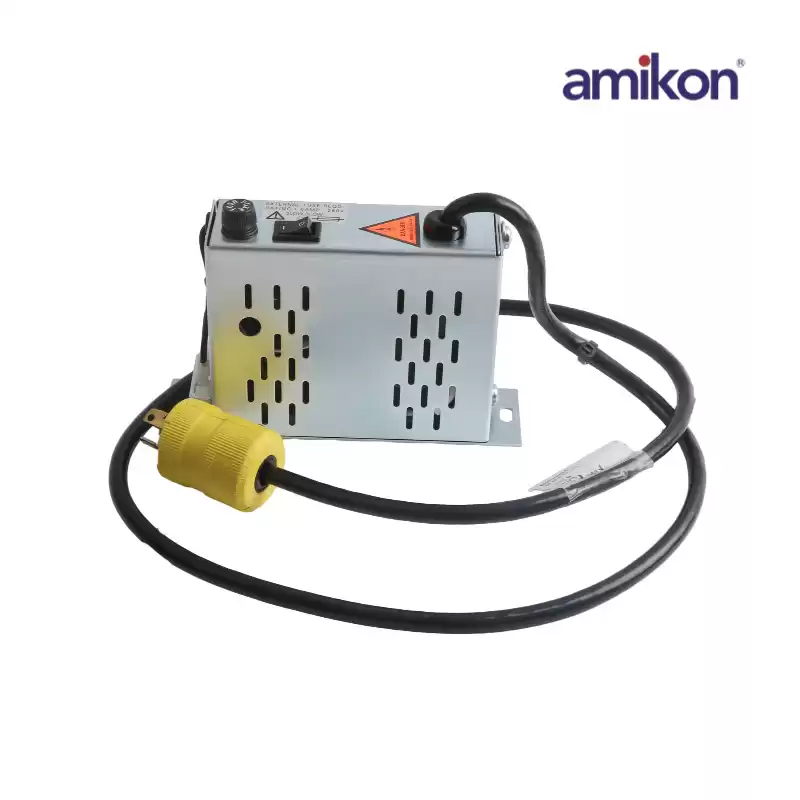

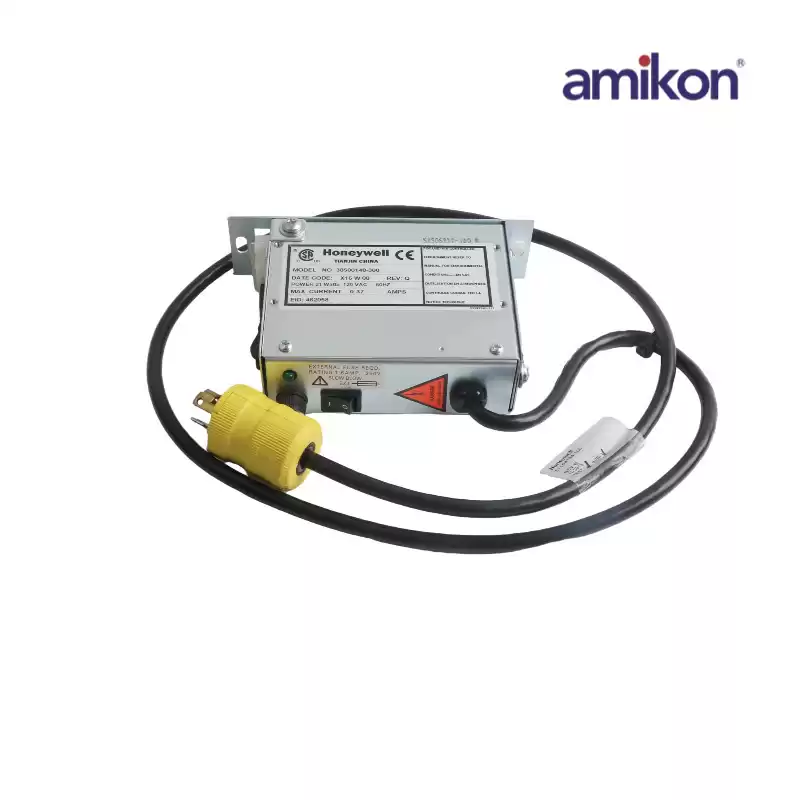

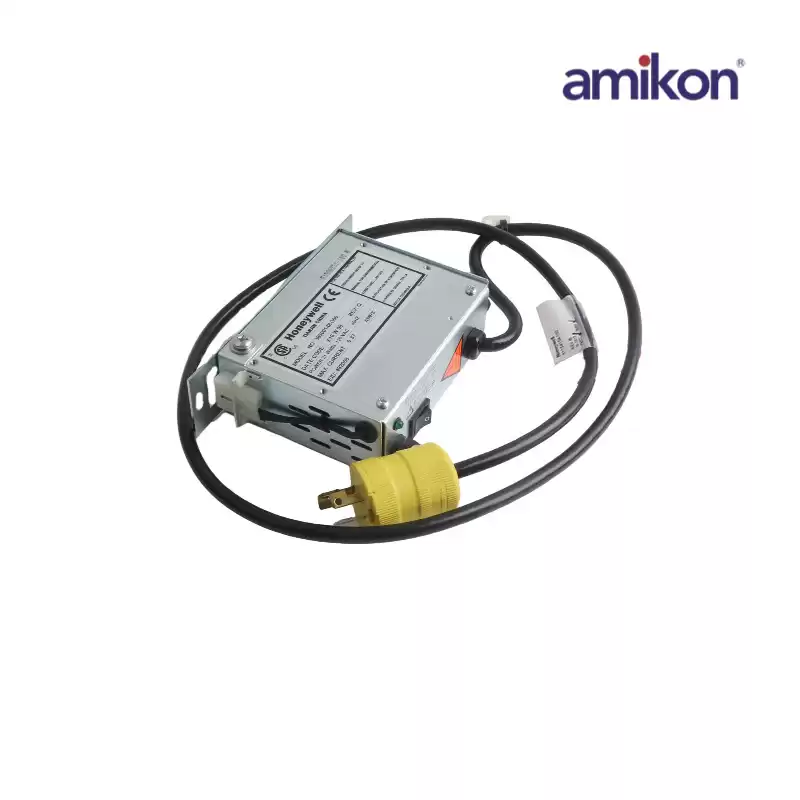

Honeywell 38500148-300 Power Supply Module

Manufacturer/Brand：Honeywell

Product Package：Original Package

Part Number：38500148-300

Shipping Term：TNT DHL FEDEX EMS UPS

Operating Temperature：-30 to +85°C

Weight:：0.9kg

Normal Mode Input：-6 to +115 V peak

Dimensions ：5.2cmx12cmx17cm

The 38500148-300 is a Power Supply Module.Midas® can be powered by either 24 VDC via traditional discrete wiring or by approximately 48 VDC delivered through the Ethernet cable from a PoE source. In either case the 4-20 mA analog output can be used. This can be configured for fully isolated operation.

With 24 VDC power the 4-20 mA output can be configured for sink, source or isolated output operations.With 24 VDC power the 4-20 mA output can be configured for sink, source or isolated output operations. Below are some schematic diagrams of typical electrical connection configurations.
