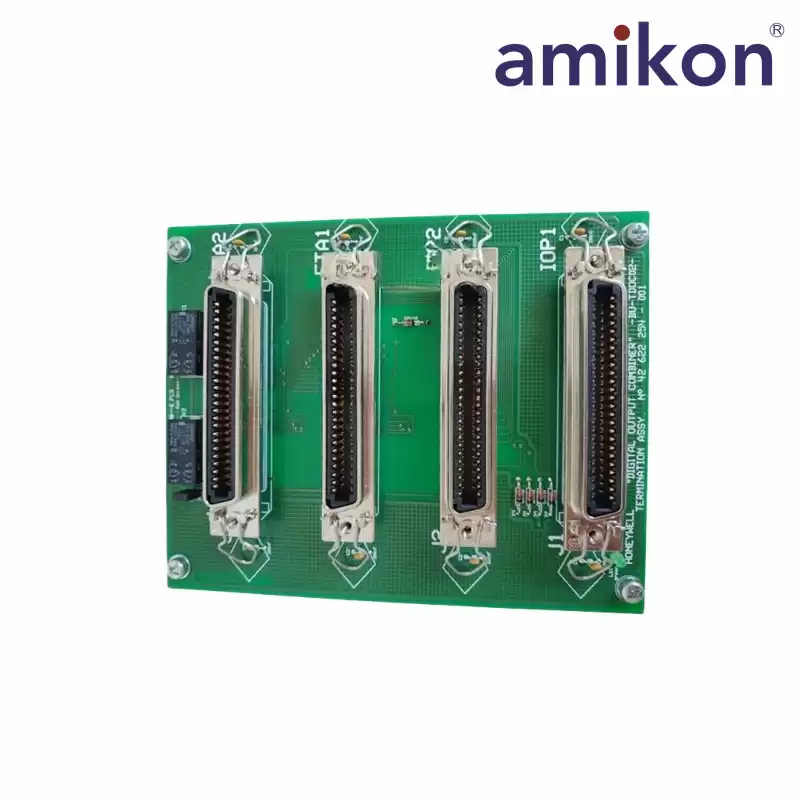

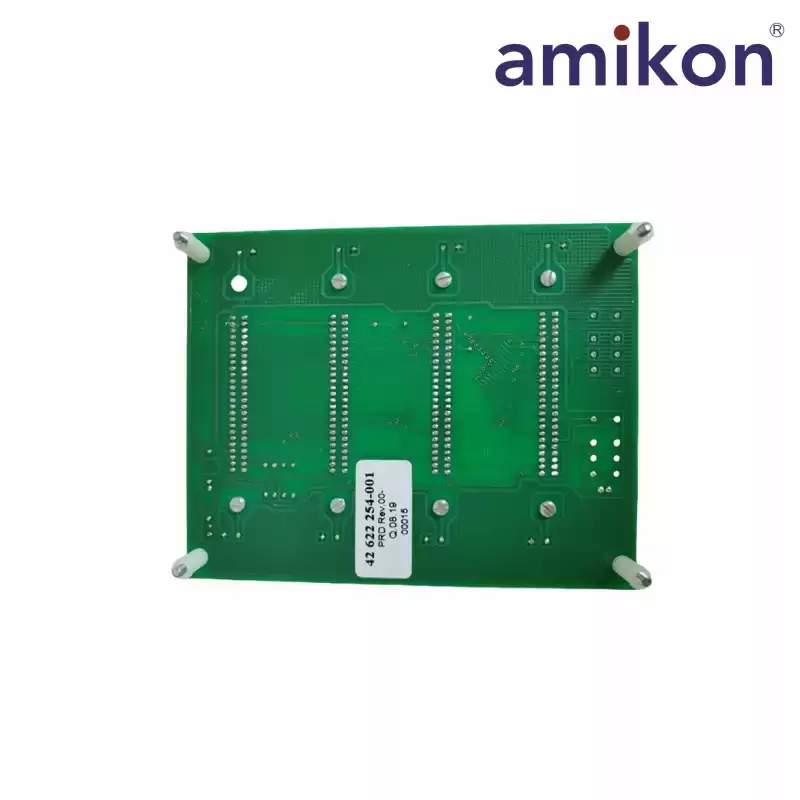

➱42622254-001 BU-TDOC02 DIGITAL OUTPUT COMBINER PANEL
Manufacturer : Honeywell
Product No. : 42622254-001
Digital Output 24V Bussed Out 32 Card
Output Channels: 32
Load Voltage: 30VDC Maximum
Galvanic Isolation: 1500 VAC RMS or ±1500 VDC
On-State Voltage: 24 V (typ), load current @ 0.5A
Off-State Voltage: 0V VDC (max) (3.3 VDC(max) indicated under no-load condition)
Off-State Leak Current: 0.5 µA (max)
Turn-On/Turn-Off Time: 10 ms (max)
The Digital Output Bussed 24VDC has provisions for both internal and external field power excitation. As a bussedoutput device, all of the outputs share a common return (ground). All outputs get their power from the same source,which can be either the system power supply or an externally connected 24V power supply. When selection is from anexternal source, outputs can be galvanically isolated from the Series C power system.
|
Manufacturers
|
Honeywell
|
Model Type
|
DIGITAL OUTPUT COMBINER PANEL
|
|
Warranty
|
12 Months
|
MOQ
|
1 Piece
|
|
PackagePackage
|
100% Original
|
Payment term
|
100% advance bank wire transfer
|
|
Shipping Ways
|
DHL, UPS, Fedex, and TNT
|
Delivery time
|
1-3DAY
|
|
Inquiry response time
|
Within 1 Hour
|
Service
|
After-sales Service
|
Discounted price will be support if you buy big quantity of 42622254-001 BU-TDOC02
Click to get price :
: info@amikon.cn
: +86 18020776786
: live:onlywnn_1
: mooreplc
Amikon Limited is not affiliated with or a distributor for Honeywell. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
