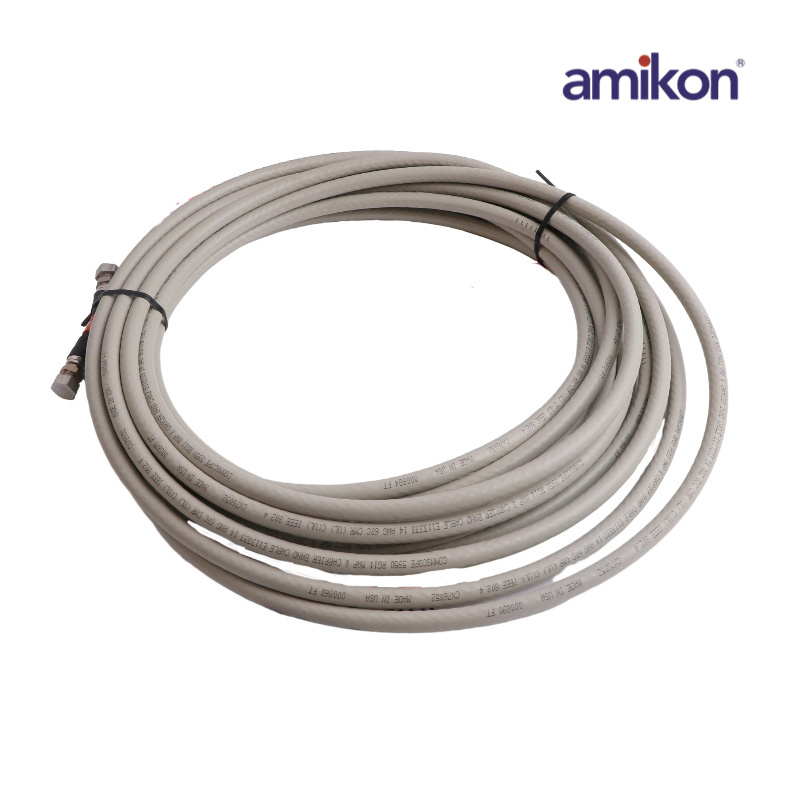

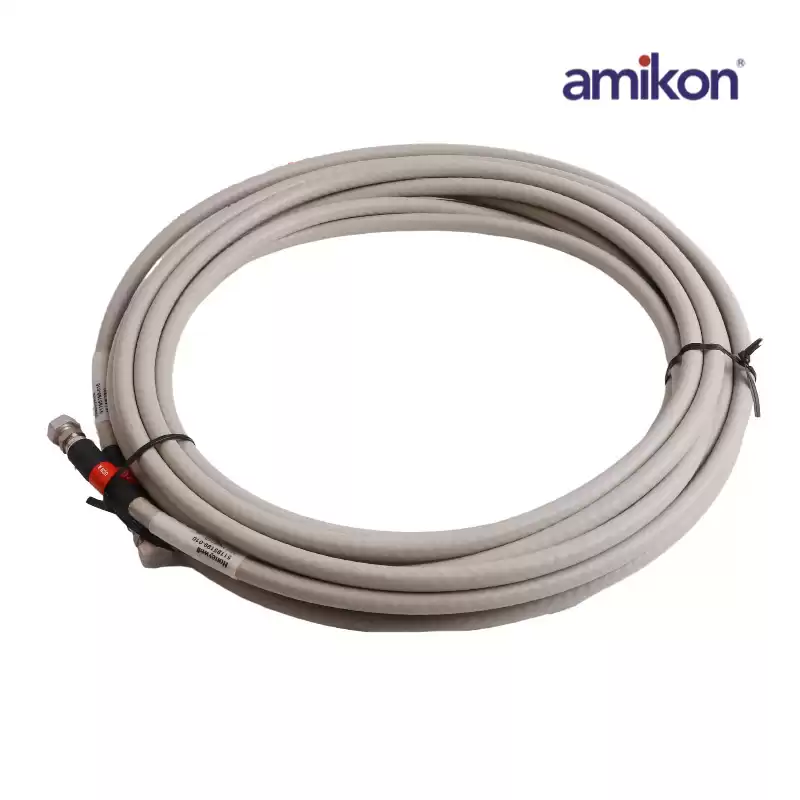

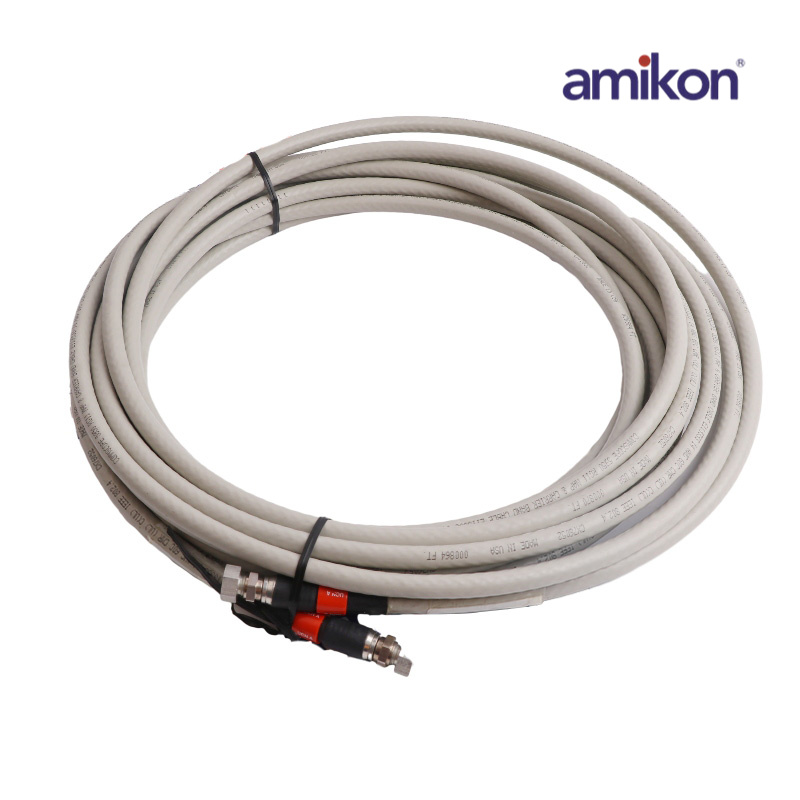

Honeywell 51195199-010 CABLE ASSEMBLY

Manufacturer/Brand：Honeywell

Product Package：Original Package

Part Number：51195199-010

Shipping Term：TNT DHL FEDEX EMS UPS

Field Terminals:3.5mm

Weight:：0.96kg

Relay Contact Rating:2A at 12V dc

Dimensions ：37cmx36cmx5cm

The 51195199-010 is a CABLE ASSEMBLY COAXIAL DROP 10M LONG. An extension cable is used to extend the I/O Link through an area where there are no IOTA connections or to another cabinet side. Extension cables come in a variety of lengths. They can plug into taps on a header cable, the end of a header cable, or the bottom of a drop cable (although this is not a normal use).

The Drop cable is a multi-drop cable that runs vertically in a CCA. Two drop cables can be plugged together to distribute the I/O Link in a pair of vertical CCAs. The top connector of the topmost drop cable plugs into a connector on the header cable. There are several configurations of drop cables to handle the three different Series C IOTA dimensions [6-inches (152 mm), 9-inches (229 mm) and 12- inches (305 mm)].

There are many situations where a connector on a drop cable is not used. This occurs primarily when there is a mixture of different size IOTAs in a CCA, or the hardware configuration does not fill the CCA. This cable connects C300s to header and bypasses redundant Control Firewalls above.
