Manufacturer/Brand：Honeywell
|
Product Package：Original Package
|
|
Part Number： 51202329-112
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Cable Connector：1 pair, 5 pins
|
Weight:：0.12kg
|
|
Relay Contact Rating：2A at 12V dc
|
Dimensions ：31.5cmx3.5cmx1.5cm
|
|

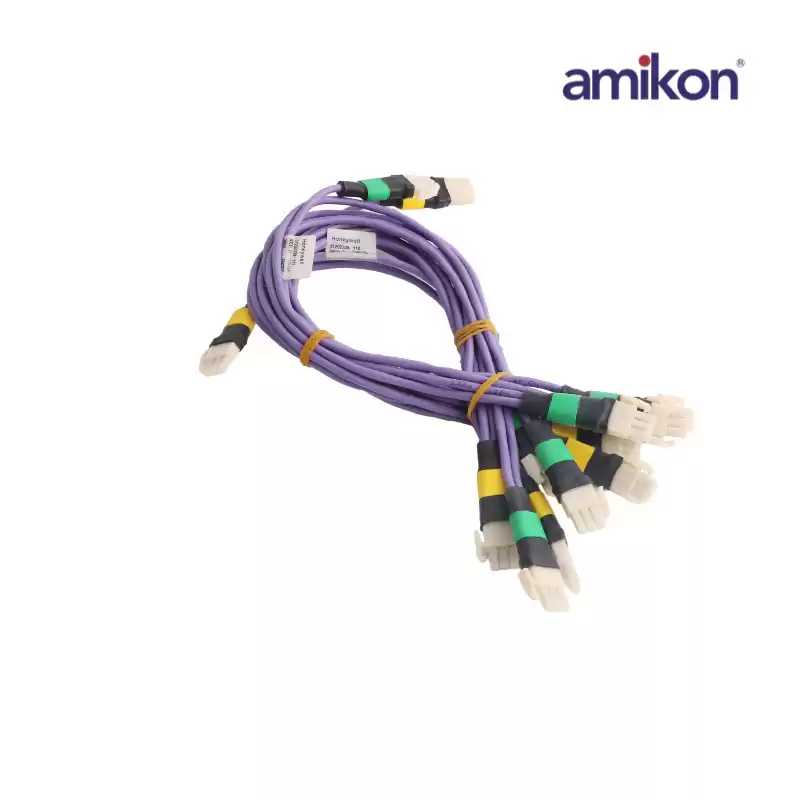

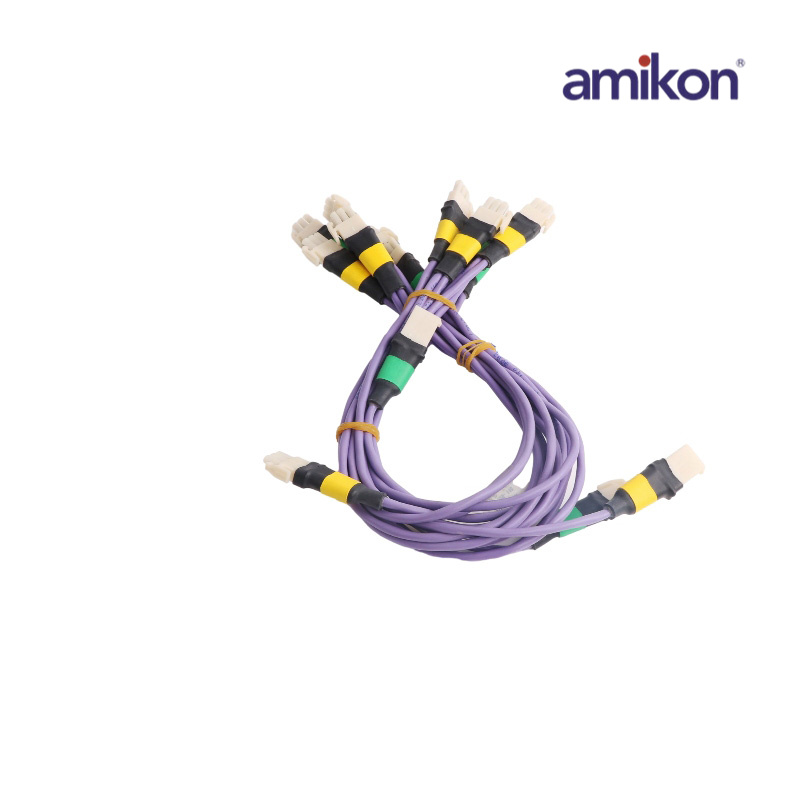

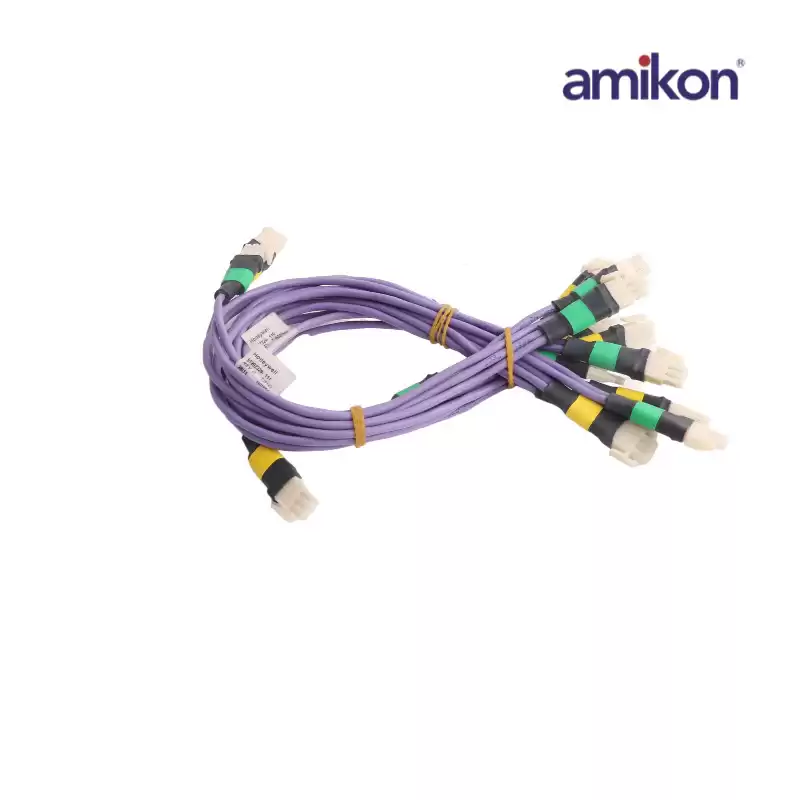

The 51202329-112 is a I/O Link Cable.Each I/O Link cable is available in an A version (marked yellow) and a B version (marked green). They are normally sold as a pair, since both are needed. The I/O Link 2 (IOL2) cable part numbers have similar tab numbers as the I/O Link 1 (IOL1) cables but with the second digit equal to 1 instead of zero.
summary of the types of I/O Link cables that are used in the Series C system.
The Header cable is a multi-drop cable that distributes the I/O Link horizontally to multiple CCAs in a cabinet side or sides. Header cables can be extended to other header cables. Normally, a header cable runs across the top of the cabinet.
This cable can be connected to additional cables of the same type to span cabinet sides with or without extension cables.
Use this cable to connect to non redundant HLAI and AO IOTAs, as well as LLAI IOTAs. Since every other connector is on a 12-inch (305 mm) pitch it can also be used with a mix of 6-inch (152 mm) and 12-inch (305 mm) IOTAs.
|
