Honeywell 51202329-732 Violet Extension Cable

Manufacturer/Brand：Honeywell

Product Package：Original Package

Part Number： 51202329-732

Shipping Term：TNT DHL FEDEX EMS UPS

Relays：3 x SPCO

Weight:：0.06kg

Relay Contact Rating：2A at 24V dc

Dimensions ：95cmx1.6cmx1.8cm

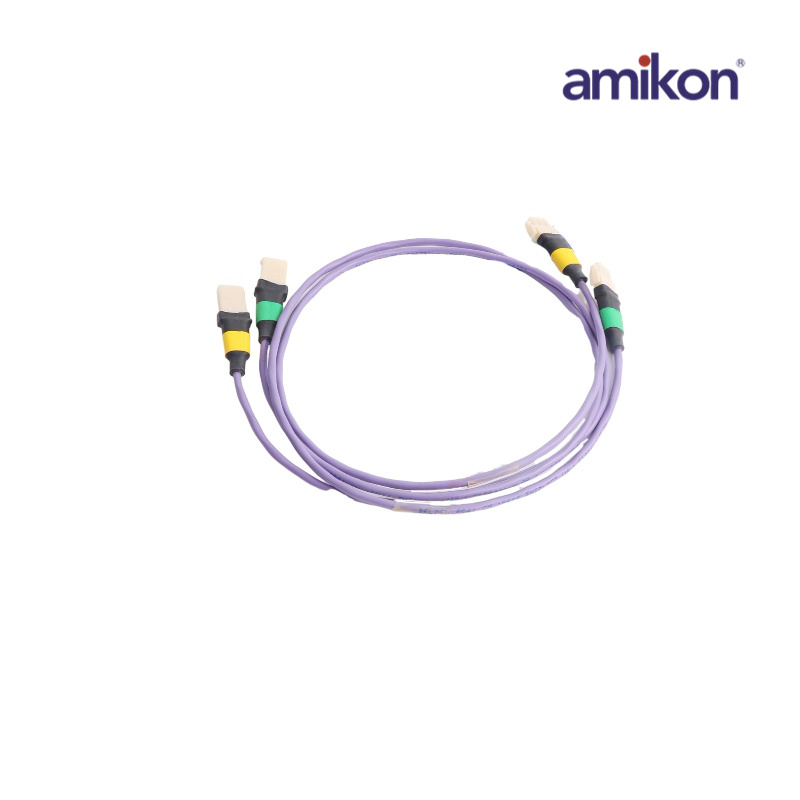

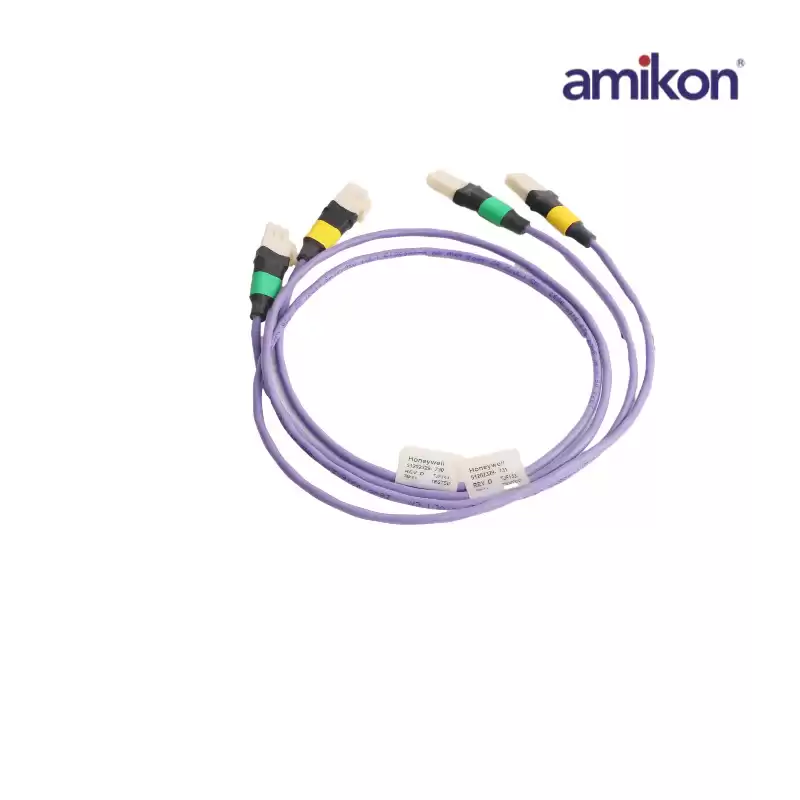

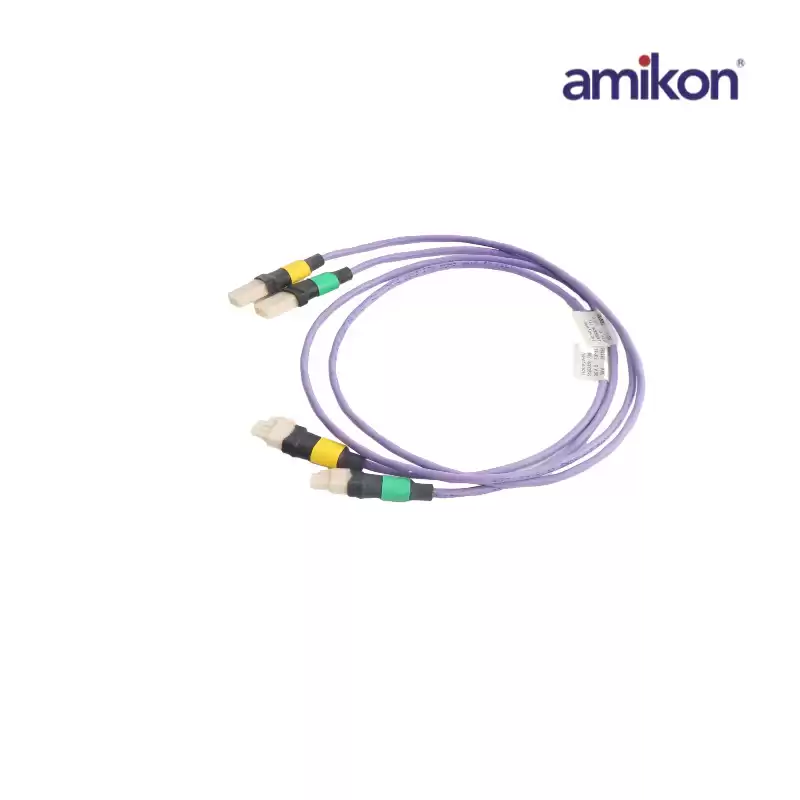

The 51202329-732 is a Violet Extension Cable.Extension cables come in a variety of lengths. They can plug into taps on a header cable, the end of a header cable, or the bottom of a drop cable (although this is not a normal use).They are normally sold as a pair, since both are needed. The I/O Link 2 (IOL2) cable part numbers have similar tab numbers as the I/O Link 1 (IOL1) cables but with the second digit equal to 1 instead of zero.

Each I/O Link cable is available in an A version (marked yellow) and a B version (marked green). An extension cable is used to extend the I/O Link through an area where there are no IOTA connections or to another cabinet side.

I/O Link Cables You can connect the following types of I/O Link cables to the redundant I/O Link cable connector ports (IOL1A/B and IOL2A/B) on the C300 Controller IOTA: • Series C I/O Link (750 KBaud), to support Series C IOMs in their IOTAs • PM I/O Link (375 KBaud), to support PM IOPs in PM files Both types always require a pair of cables (Cable A and Cable B).
