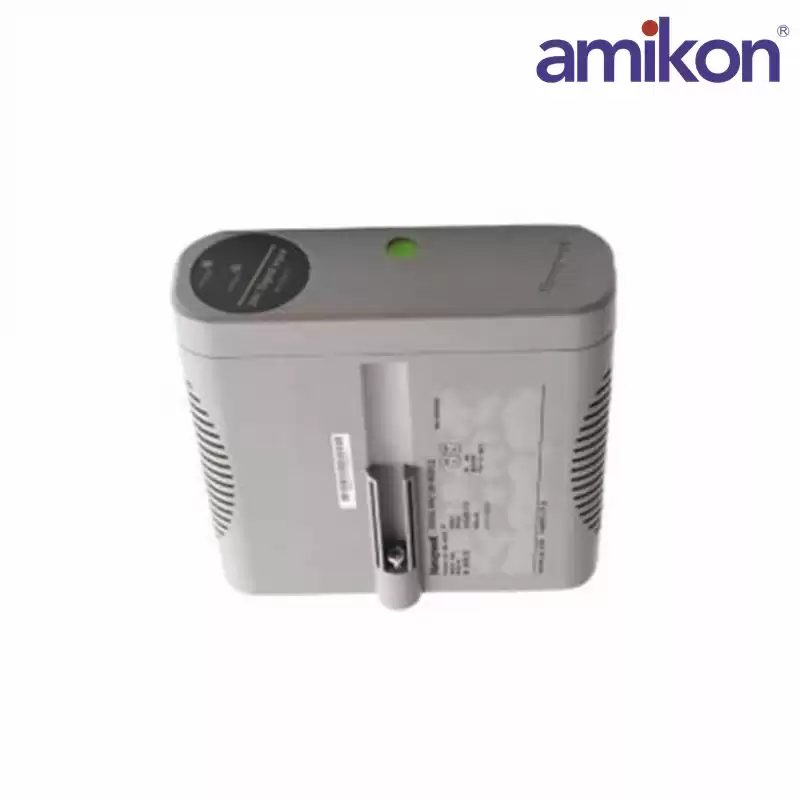

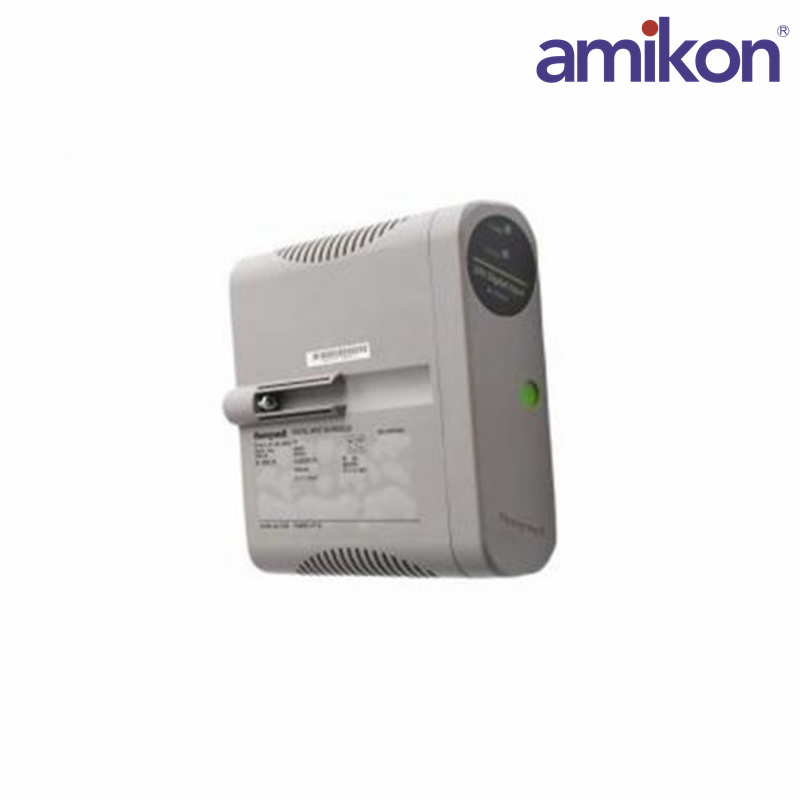

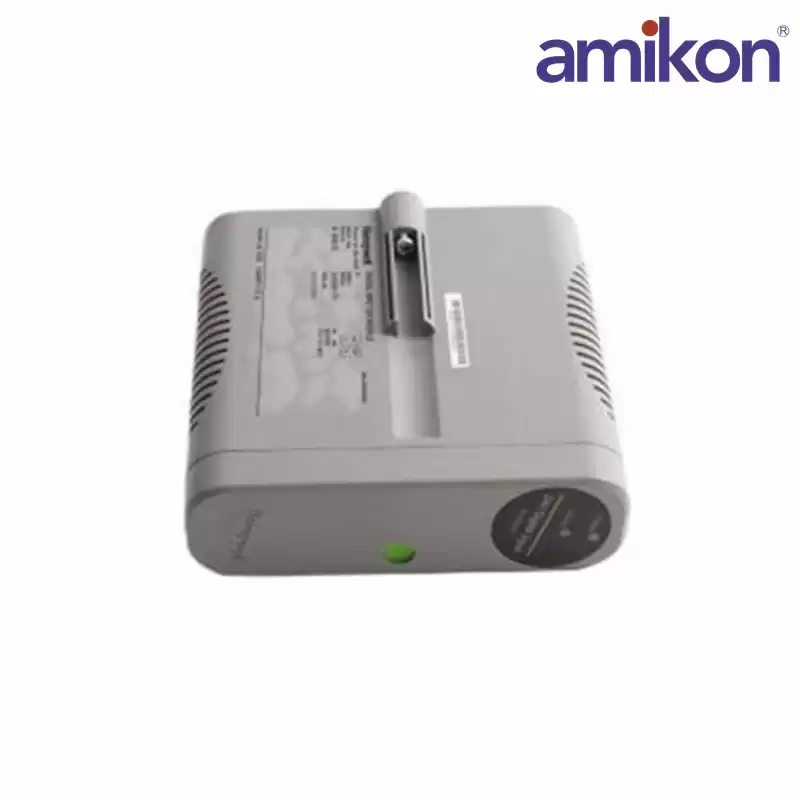

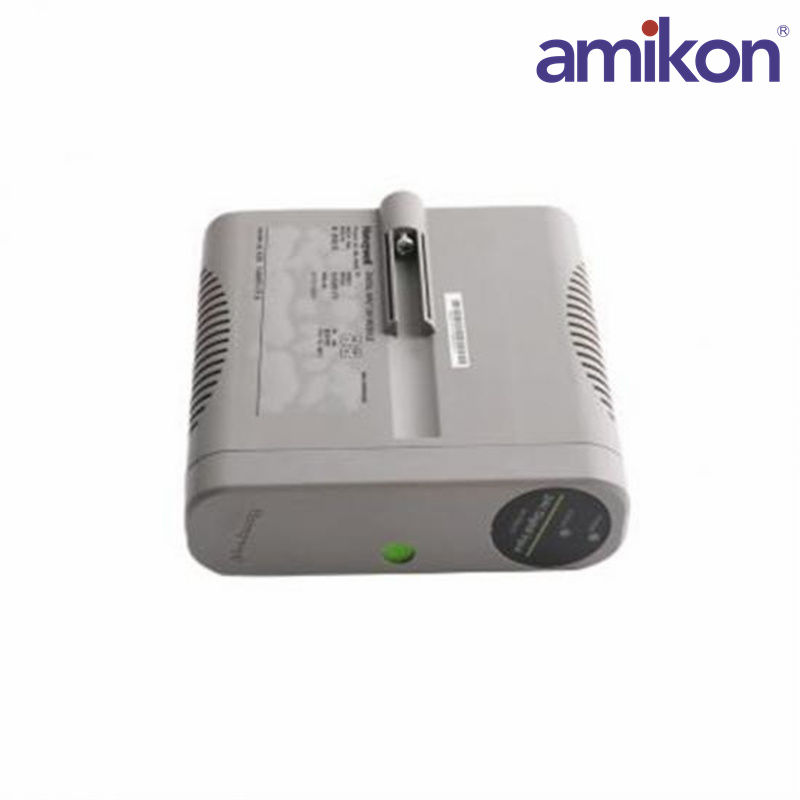

The Honeywell 8C-PDIL51 51454359-175 is a digital input module used in Honeywell's Process Control systems.
Isolation: Provides electrical isolation between field devices and the control system to protect against electrical noise and spikes.
Mounting: The module is mounted onto the Honeywell I/O rack system or controller. Ensure it is correctly seated and connected.
Wiring: Follow the wiring diagram provided in the installation manual to connect field devices to the module’s input terminals. Proper wiring ensures reliable signal transmission.
Configuration: Configure the module through the Honeywell control system's software to match the input channels and their corresponding addresses.
Application
The 8C-PDIL51 module is used in various industrial applications where digital input signals need to be monitored and processed. It is suitable for use in:
Control Systems: To receive and process binary signals from devices such as limit switches, push buttons, and other on/off devices.
Monitoring Systems: For tracking the status of different field devices in a process control environment.
|
