Technical Specifications for 8C-PDILA1 51454471-175
|
Manufacturer
|
Honeywell
|
|
Condition
|
100% New Original
|
|
Brand
|
Honeywell
|
Voltage Rating
|
24 VDC
|
|
Part Number
|
8C-PDILA1 51454471-175
|
Input Impedance
|
4.2 K
|
|
Product Name
|
Digital Input Module
|
Absolute Delay
|
5 ms
|
|
Manufacture Year
|
2021
|
Input Current
|
95 mA
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

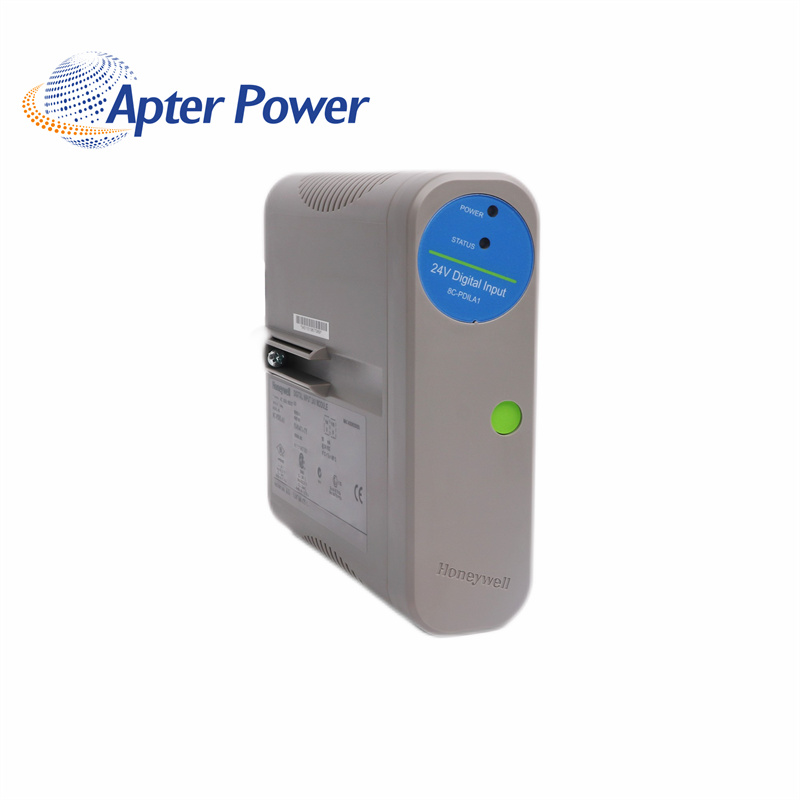

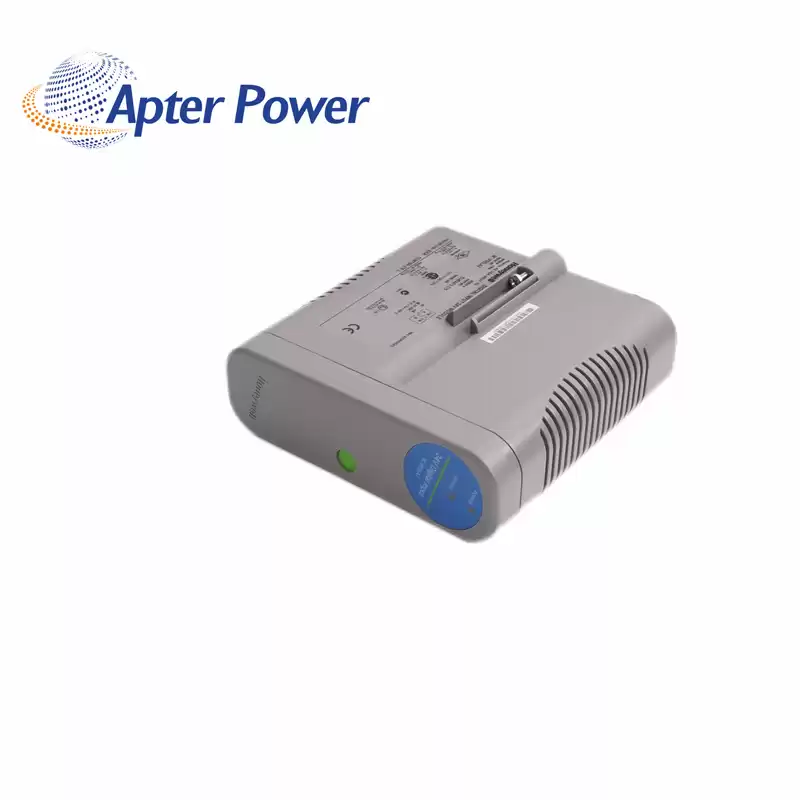

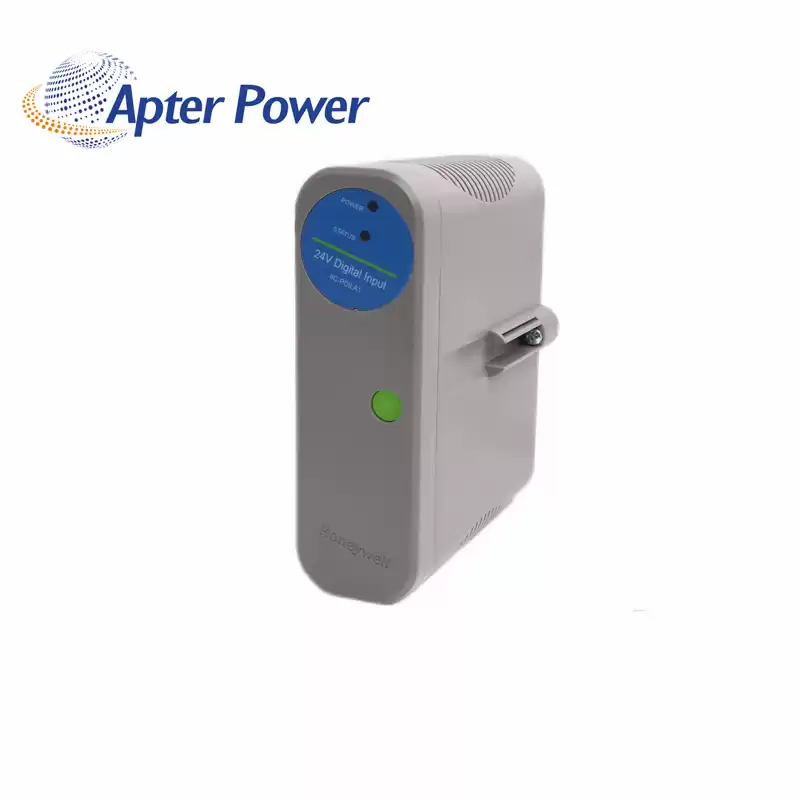

About 8C-PDILA1 51454471-175
|
The 8C-PDILA1 51454471-175 is a Digital Input Module.The Digital Input 24VDC accepts 24VDC signals as discrete inputs.The Digital Output Bussed 24VDC has provisions for both internal and external field power excitation. As a bussed
output device, all of the outputs share a common return (ground). All outputs get their power from the same source,
which can be either the system power supply or an externally connected 24V power supply.
When selection is from an
external source, outputs can be galvanically isolated from the Series 8 power system. A wiring option on the IOTA
determines if outputs are referenced to the Series 8 system power or an external field power source. Series 8 DO module will support FAILOPT parameter on a per channel basis. The output can be directed by
configuration to either HOLD THE LAST VALUE, or SHED to a SAFE VALUE. The safe value can be configured by
the user.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
