Manufacturer/Brand：Honeywell
|
Product Package：Serial Interface
|
|
Part Number：8C-PDOD51 51454361-175
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Dimensions ：6cmx15cmx14.4cm
|
Weight:：0.3KG
|
|

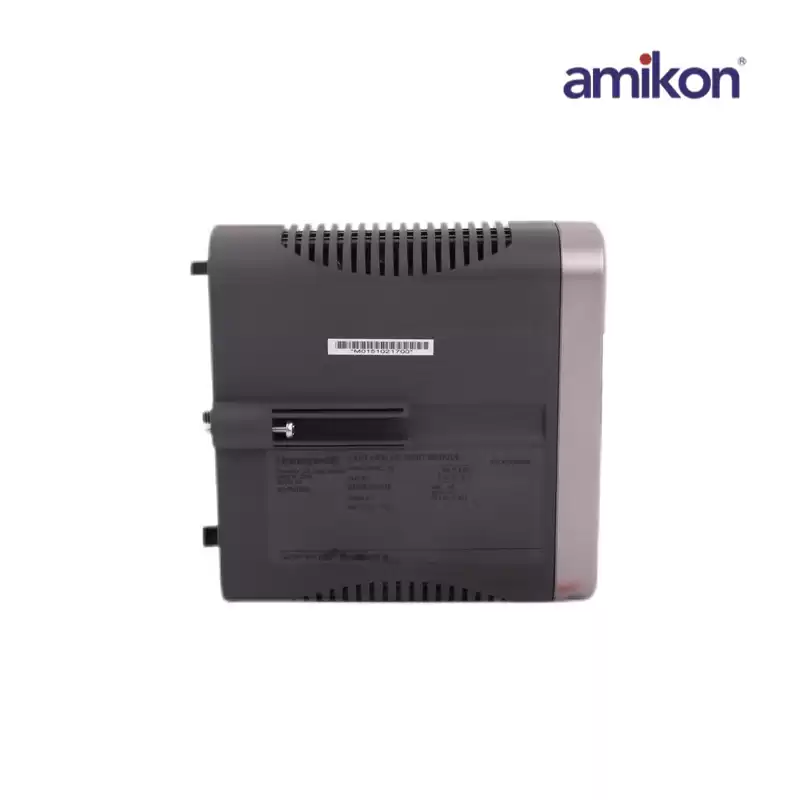

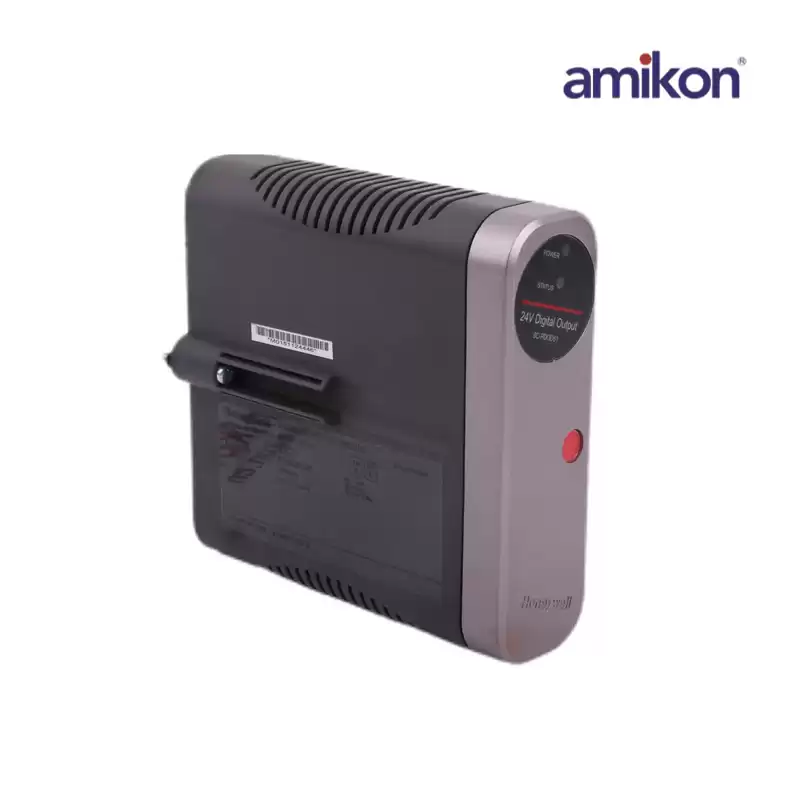

The 8C-PDOD51 51454361-175 is a Digital Output 24V Module. The Digital Output Bussed 24VDC has provisions for both internal and external field power excitation. As a bussed output device, all of the outputs share a common return (ground). All outputs get their power from the same source, which can be either the system power supply or an externally connected 24V power supply. When selection is from an external source, outputs can be galvanically isolated from the Series 8 power system.
A wiring option on the IOTA determines if outputs are referenced to the Series 8 system power or an external field power source. Series 8 DO module will support FAILOPT parameter on a per channel basis. The output can be directed by configuration to either HOLD THE LAST VALUE, or SHED to a SAFE VALUE. The safe value can be configured by the user.
|
