Technical Specifications for 8C-PDODA1 51454472-175
|
Manufacturer
|
Honeywell
|
|
Condition
|
100% New Original
|
|
Brand
|
Honeywell
|
Output Channels
|
32
|
|
Part Number
|
8C-PDODA1 51454472-175
|
Operating
Temperature
|
0 to 60 ℃
|
|
Product Name
|
Digital Output Module
|
Input Voltage
|
24 V
|
|
Manufacture Year
|
2021
|
Input Current
|
100 mA
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

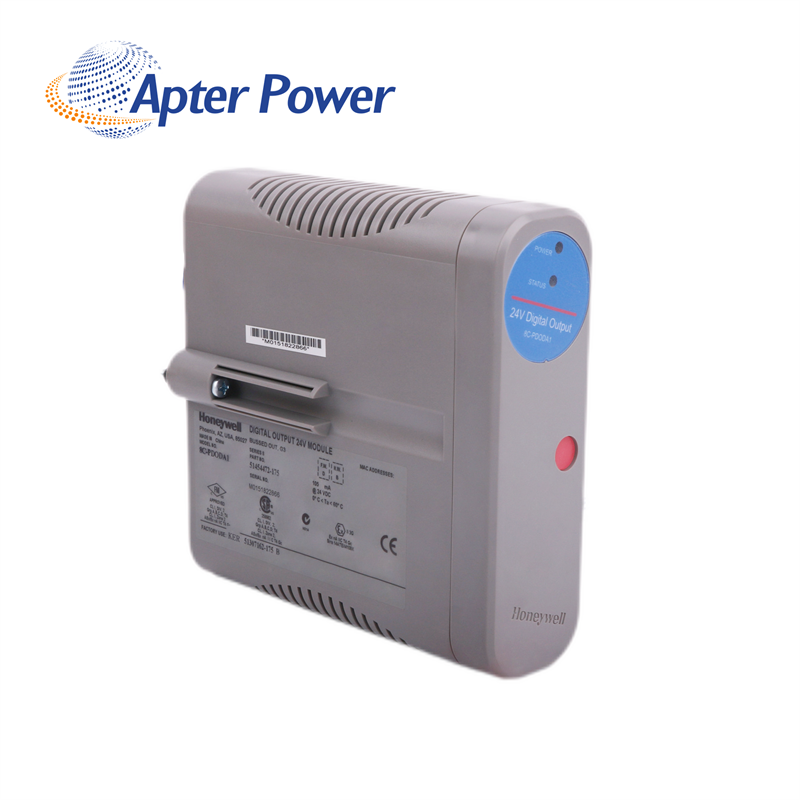

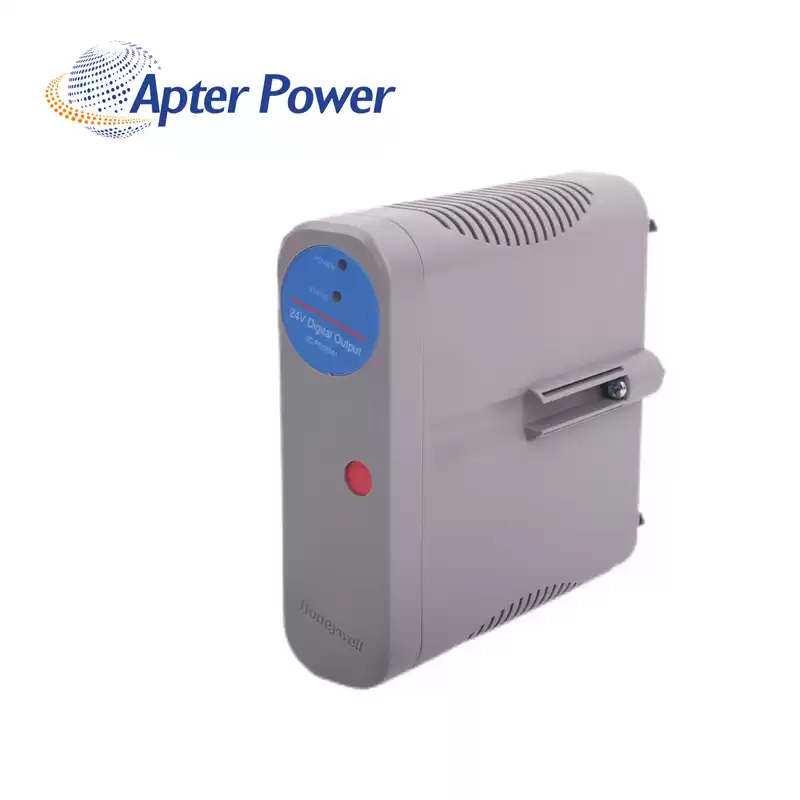

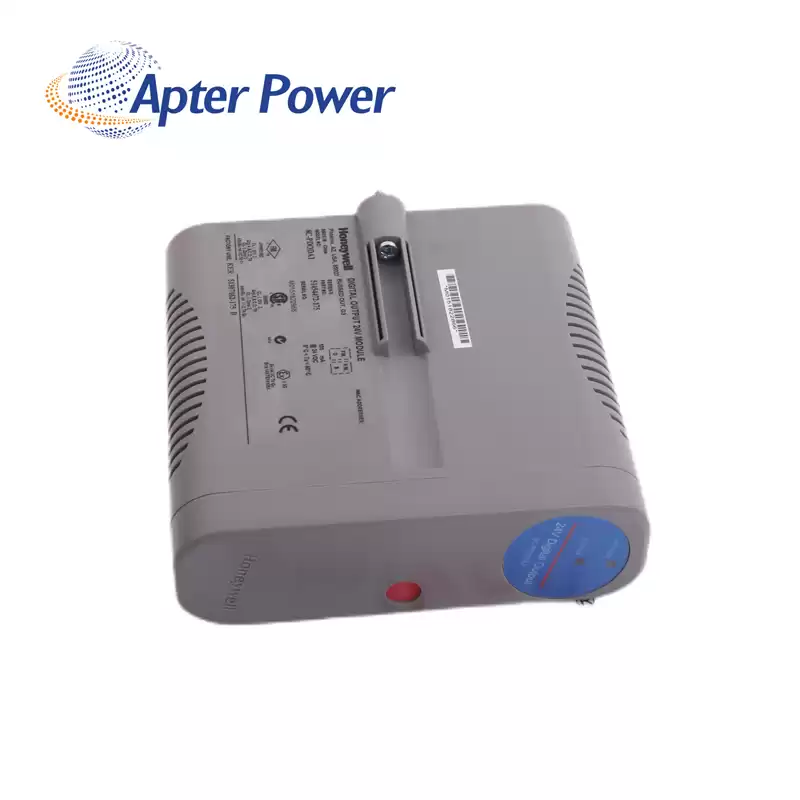

About 8C-PDODA1 51454472-175
|
The 8C-PDODA1 51454472-175 is a Digital Output 24V Module. The Digital Output bussed 24VDC (DO24V) module can switch reliable 24V digital output signals to control other
process equipment as well as solenoid valves and interposing relays. The Digital Output Bussed 24VDC has provisions for both internal and external field power excitation. As a bussed
output device, all of the outputs share a common return (ground). All outputs get their power from the same source,
which can be either the system power supply or an externally connected 24V power supply.
When selection is from an
external source, outputs can be galvanically isolated from the Series 8 power system. A wiring option on the IOTA
determines if outputs are referenced to the Series 8 system power or an external field power source. Series 8 DO module will support FAILOPT parameter on a per channel basis. The output can be directed by
configuration to either HOLD THE LAST VALUE, or SHED to a SAFE VALUE. The safe value can be configured by
the user.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
