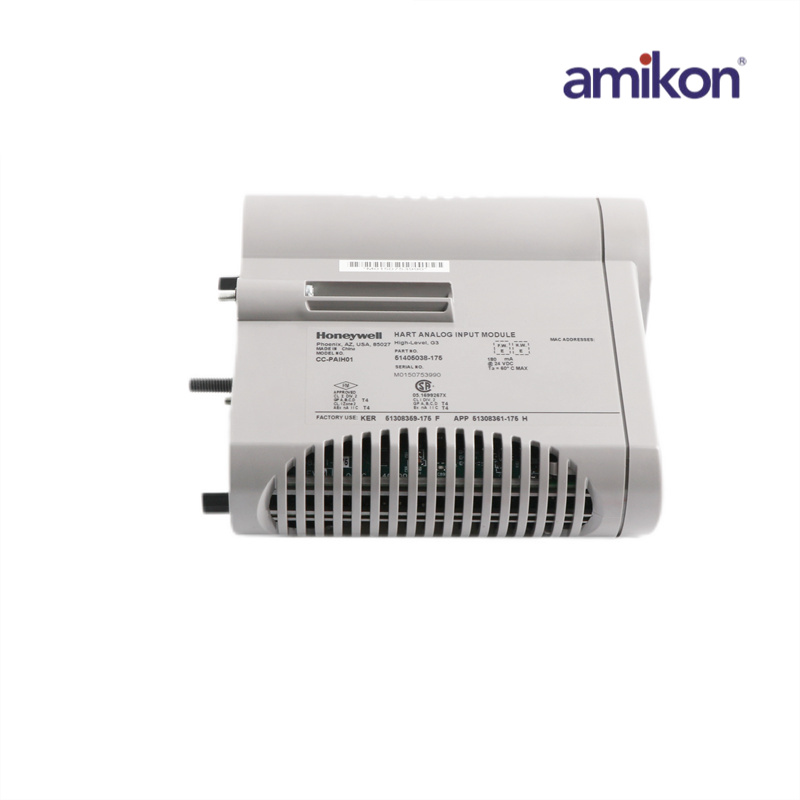

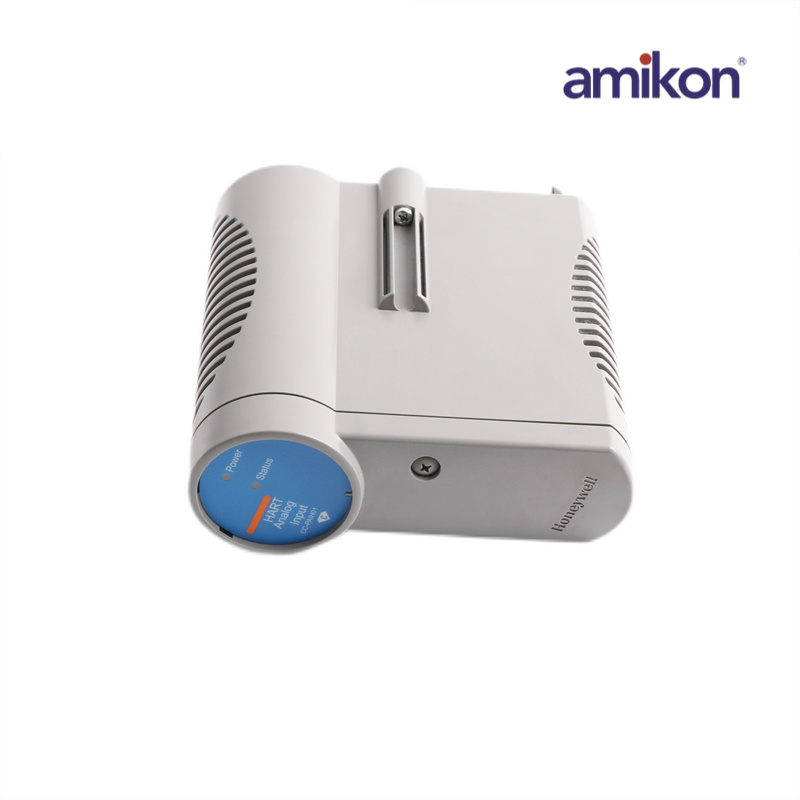

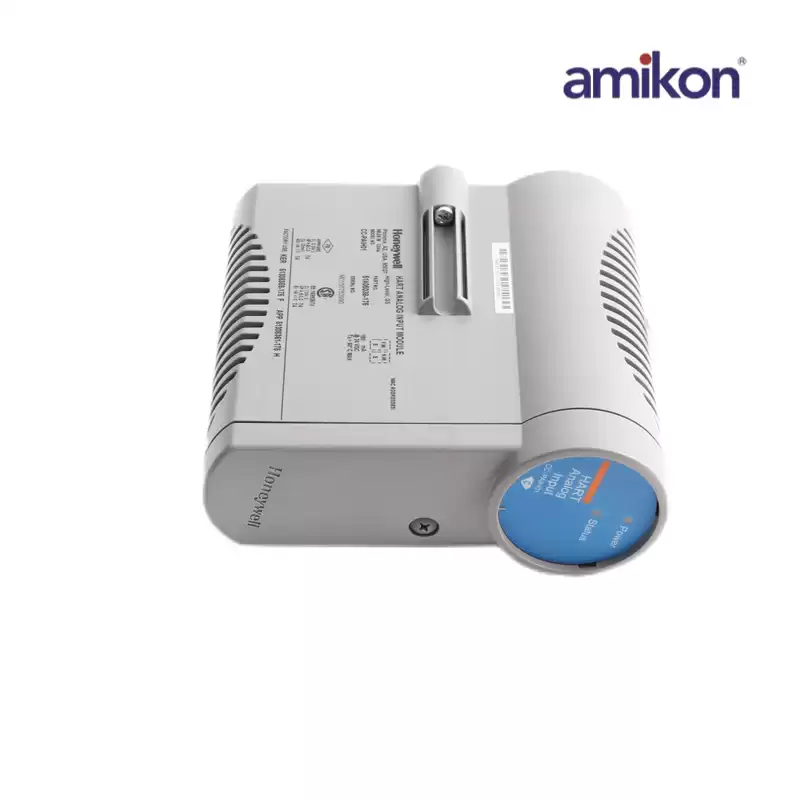

Honeywell CC-PAIH01 51405038-175 Analog Input Module

CC-PAIH01 51405038-175

Dimensions ：5.5cmx16cmx14cm

Weight: 0.4KG

Product Package：Original Package

Shipping Term：TNT DHL FEDEX EMS UPS

Full Description:0.195 AMP; 24 VDC; HART; 16 CHANNEL

Honeywell CC-PAIH01 High Level Analog Input Module with HART

The CC-PAIH01 51405038-175 is a High Level Analog Input with HART (supports differential inputs on only channel 13 through channel 16) . The IOLINK contains a function that enables programming and reprogramming the executable image (rather than substitution of a removable hardware component). The preferred method of delivery of the image is over the IOLINK.

There are two models of High Level Analog Input such as, CU-PAIX01 and CU-PAIN01. The Module Hardware and the corresponding IOTAs are different and CU-PAIN01 is a new model. From the perspective of configuration and implementation, both High Level Analog Input models use the same IOM Block such as, AI-HL. It must be noted that the two models utilize the same configuration; online migration is not possible as mixed redundant pair is not possible. There are two models of Analog Output such as, CUPAOX01 and CU-PAON01. Hence, similarly configuration, implementation, and interoperability constraints apply and CU-PAON01 is the new model.
