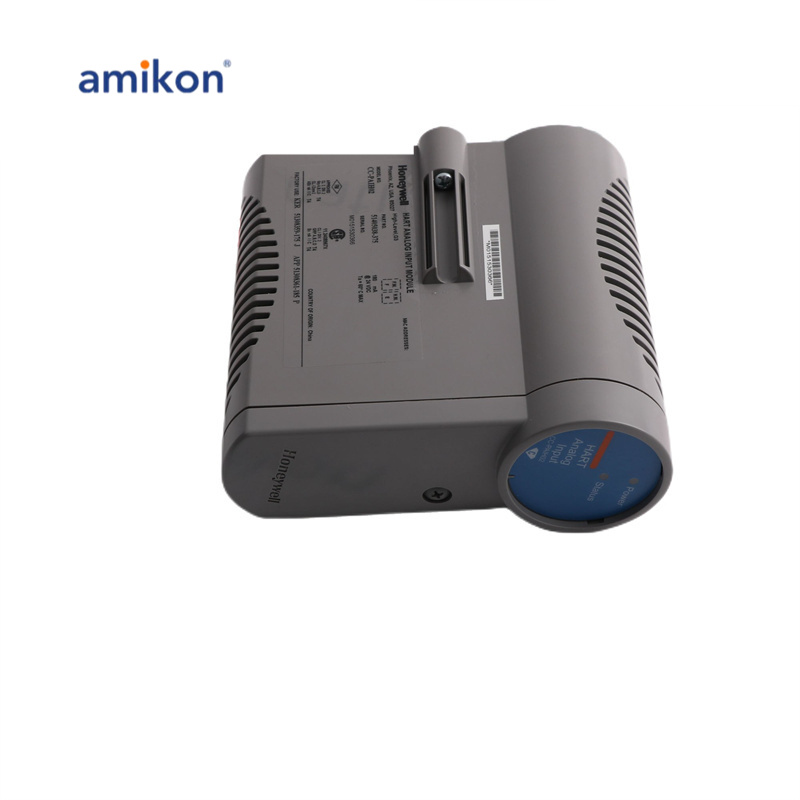

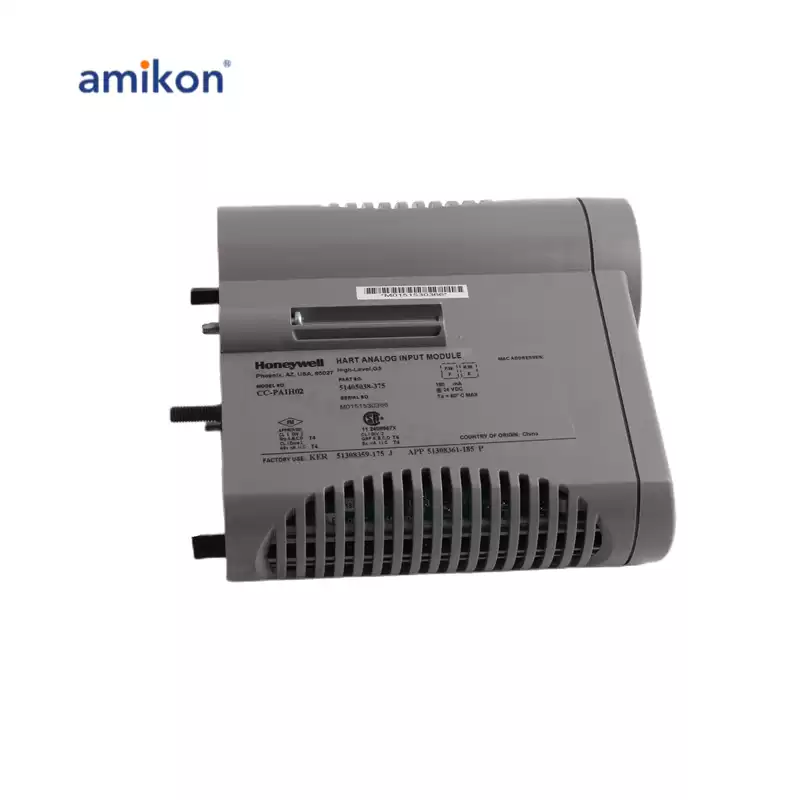

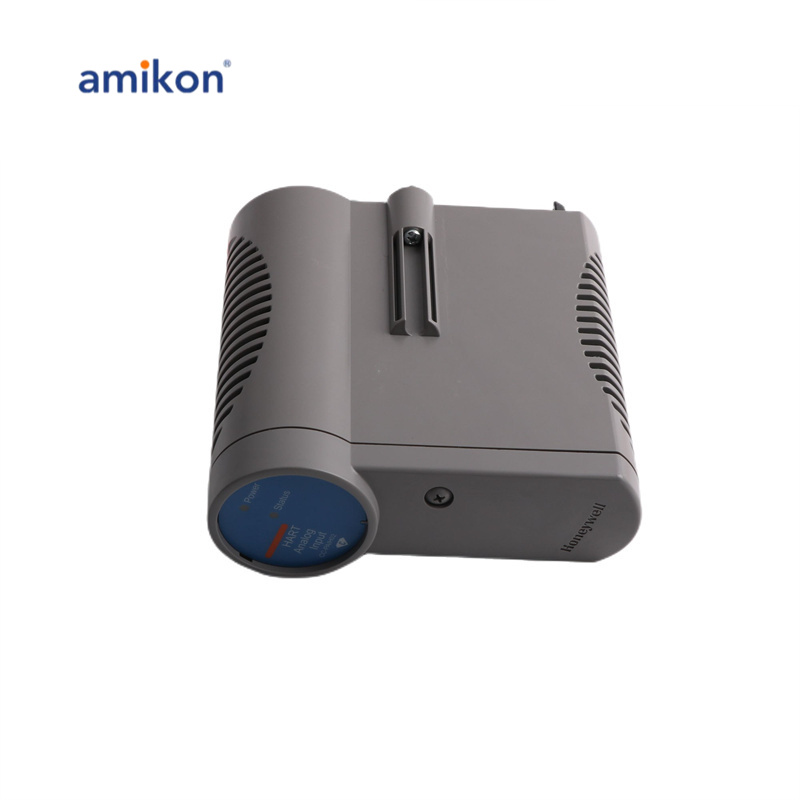

The Series C Analog Input 6 inch, 9 inch, and 12 inch modules supports all 16 channels for differential configuration. These channels can be configured to support different inputs such as 4-20mA, 1-5V, and 0-5V.
|
|
|
CC-PAIH02 51405038-375 Data sheet
|
The maximum allowable field wiring resistance between the transmitter and the IOTA connection terminal is dependent upon the voltage requirement of the transmitter.
|
|
The formula for calculating the max wiring resistance for the Series C Analog Input is given by the following equation.
|
|
All I/O field terminations of this IOTA is designed to accept up to 14 gauge stranded wire.
|
|
