Technical Specifications for CC-PAIM01 51405045-175
|
Manufacturer
|
Honeywell
|
|
Condition
|
100% New Original
|
|
Brand
|
Honeywell
|
Long term drift
|
500 ppm
|
|
Part Number
|
CC-PAIM01
|
Input Range
|
-20 to +100 millivolts
|
|
Product Name
|
Analog Mux Module
|
Input Voltage
|
± 24 Volts
|
|
Manufacture Year
|
2021
|
Lead Resistance
|
15 Ω
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

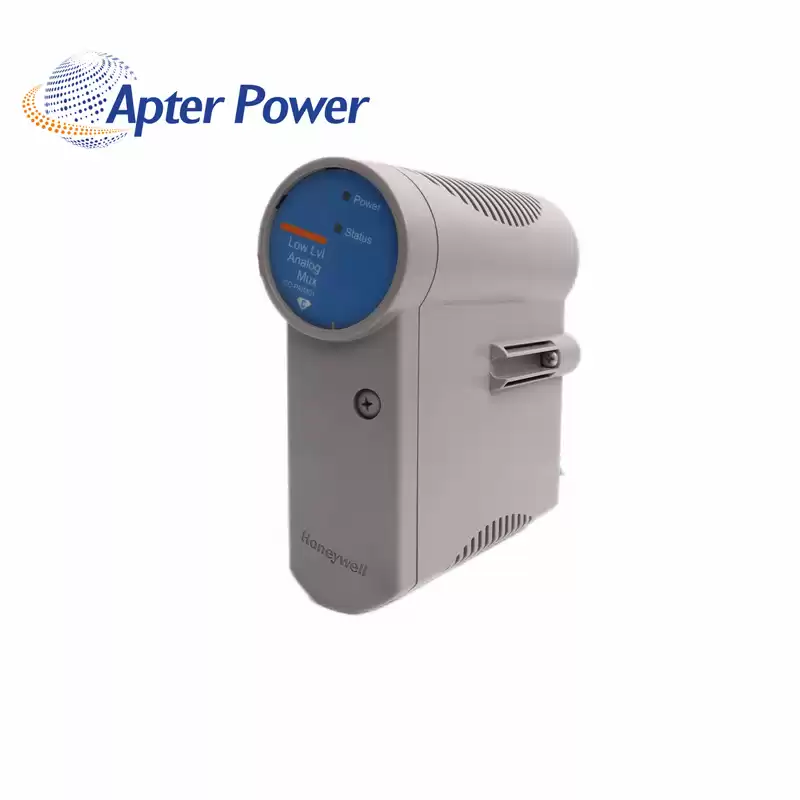

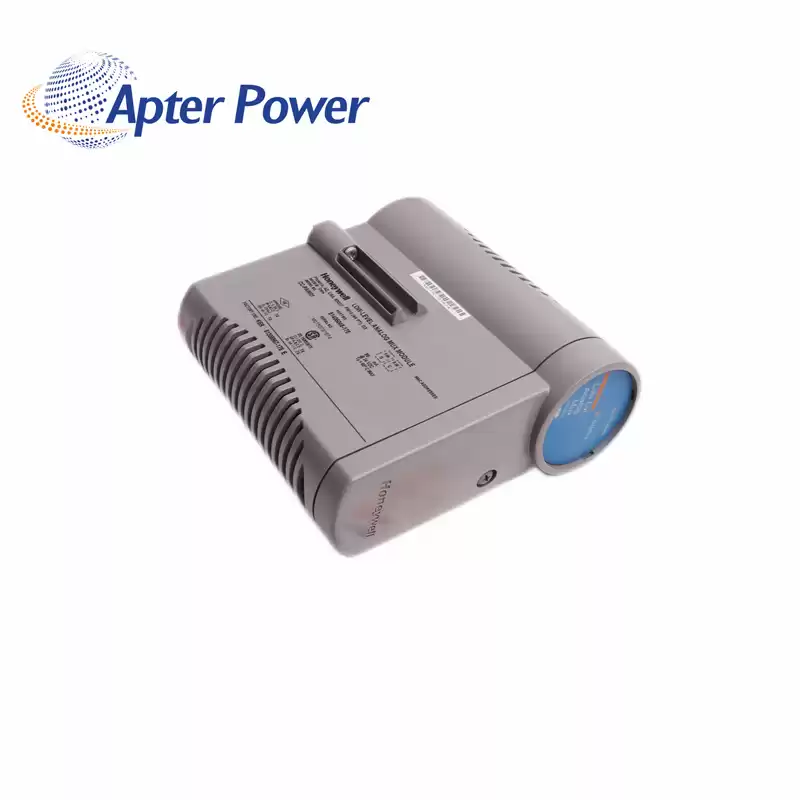

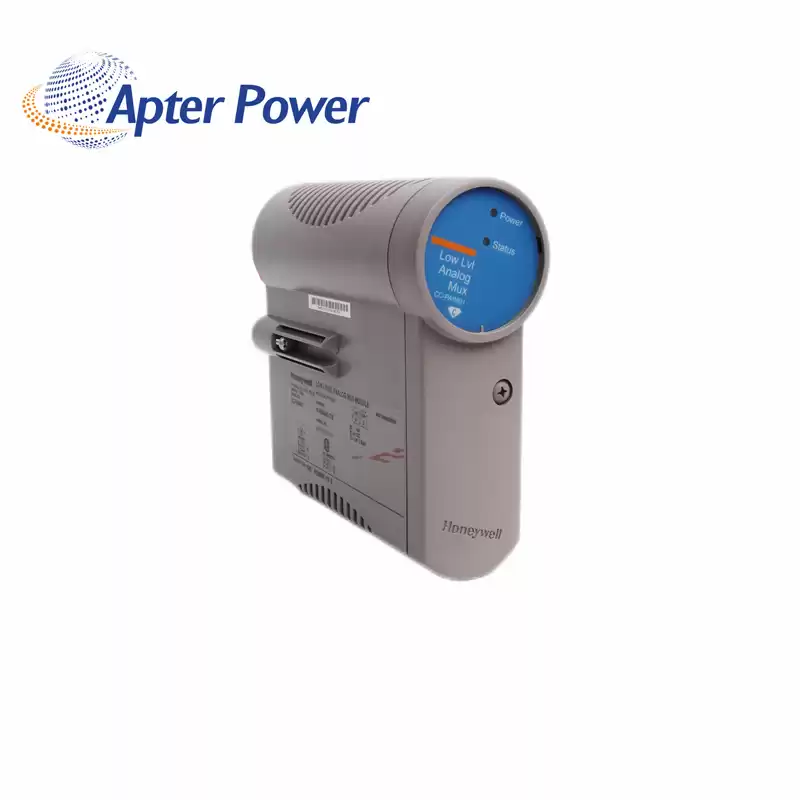

About CC-PAIM01 51405045-175
|
The CC-PAIM01 51405045-175 is a Low-Level Analog Mux Module.The LLMUX IOP module supports up to 64 channels of temperature inputs. Low level inputs use the Honeywell PMIO
LLMUX FTA. Each FTA supports 16 channels. Two types of LLMUX FTA are supported. One provides 16 RTD inputs.
The other provides 16 TC or MV inputs. Any combination of FTAs may be used to provide the mix of TC, mV or RTD
points required.The Temperature Input LLMUX supports the existing solid state PMIO LLMUX FTA. The PMIO LLMUX FTA supports
RTD and Thermocouple (TC) inputs. The Temperature variable is collected from all points at a 1 second rate. The 1
second update includes a configurable check for Open Thermocouple Detection (OTD) (see below) before propagation
of the temperature variable. All TC inputs are compensated using a Cold Junction Compensation (CJT) device.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
