Manufacturer/Brand：Honeywell
|
Product Package：Serial Interface
|
|
Part Number：CC-PDIL01 51405040-176
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Dimensions ：19.1x18.8x6.5cm
|
Weight:：0.4kg
|
|

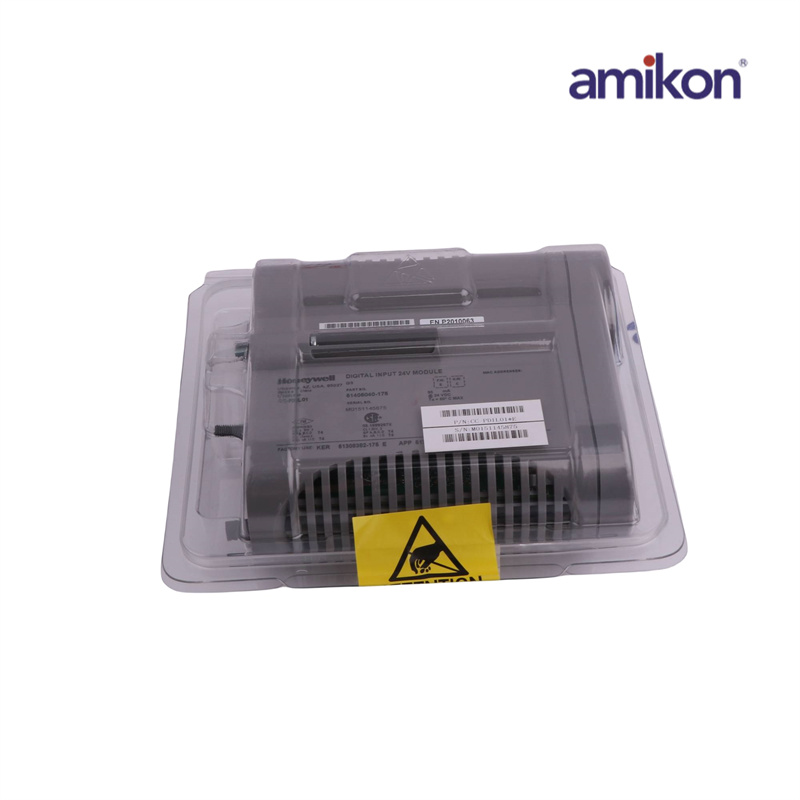

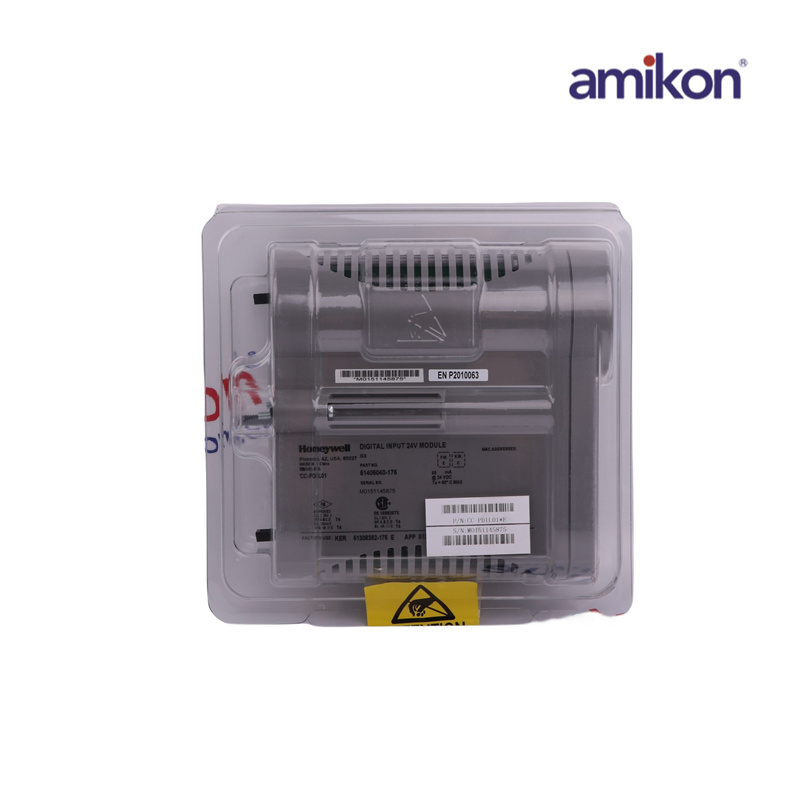

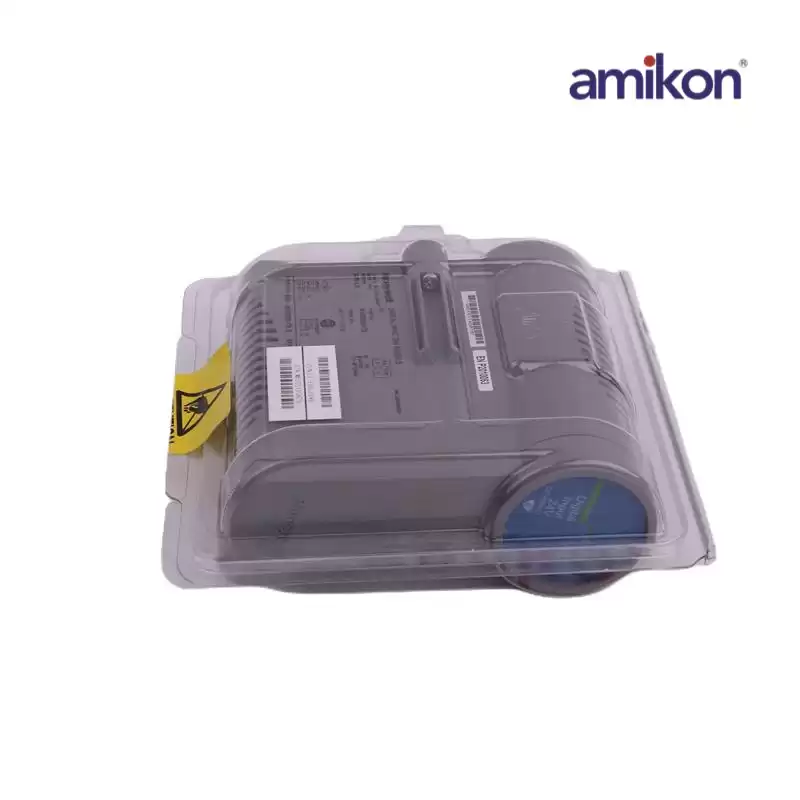

CC-PDIL01 is a Digital Input Module, Control Firewall (CF9) serves as the Fault Tolerant Ethernet (FTE) communications center for a given Series C control network.
It consists of a Control Firewall module that plugs into its associated CF9 input/output termination assembly (IOTA) as shown in the following figure.The CF9 provides eight ports for FTE connections to C300s and Series C FIMs within a Series C cabinet as well as FTE Bridge modules (FTEB) in a Series A Chassis I/O chassis. It has a ninth port for an uplink connection to the supervisory FTE network and level 2 control area.
|
