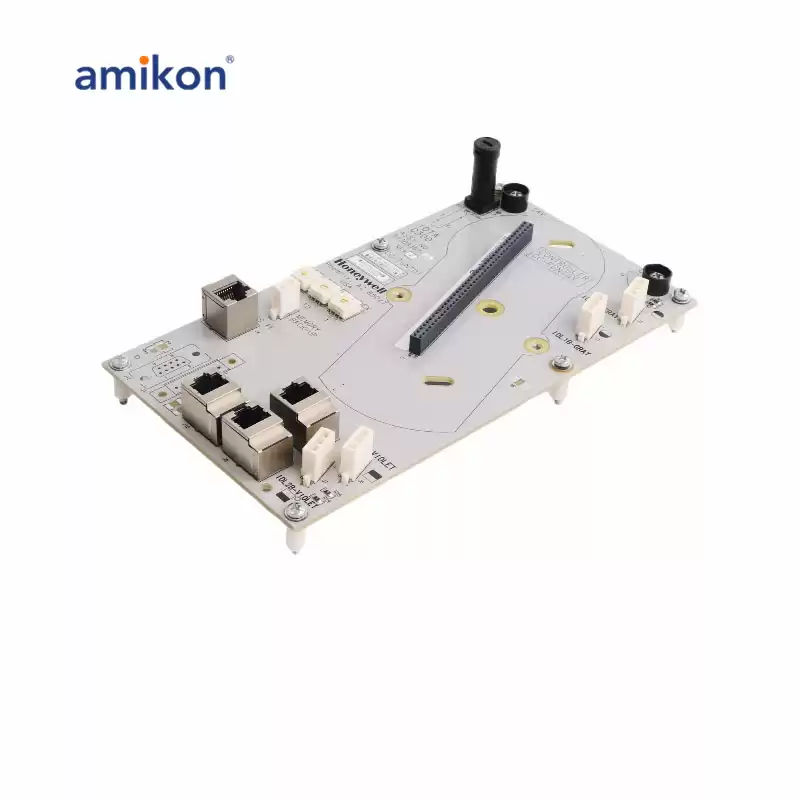

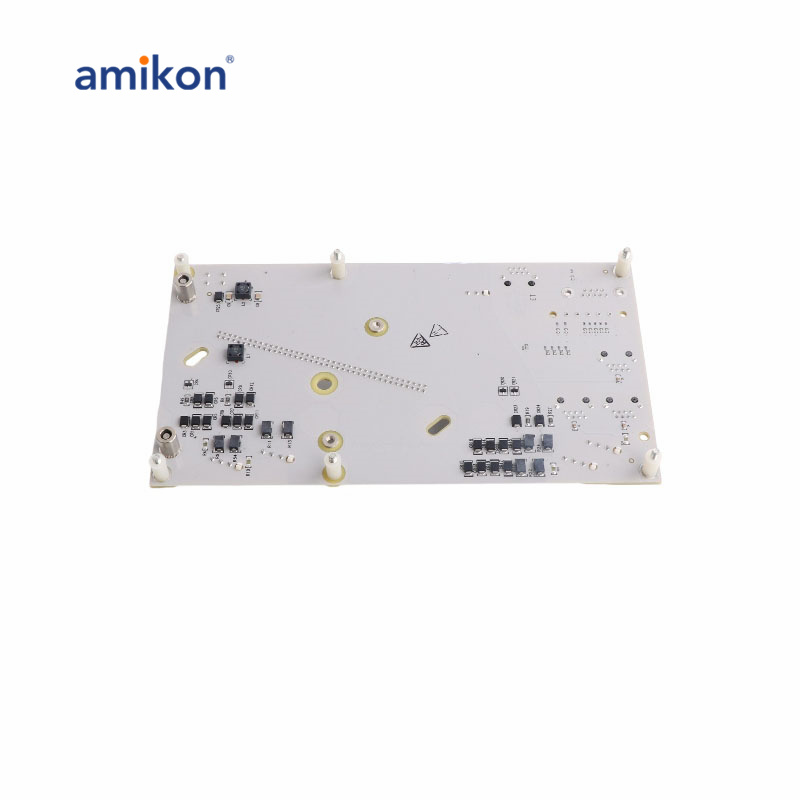

HONEYWELL CC-TCNT01 51308307-175 C300 Controller Input Output Termination Assembly

Contact me to get the best price:

Decription:

The Honeywell CC-TCNT01 51308307-175 is a C300 Controller Input Output Termination Assembly (IOTA) designed to support the Experion LX system by serving as the central connection point for the C300 Controller. This IOTA facilitates cable terminations essential for system operations, including FTE, IO Link, redundancy, battery, and time source connections, while ensuring 24Vdc power distribution to the controller module. Engineered for precision, it features an output ripple of less than 100 mV peak-to-peak across a 250 Ω load at power line frequency and an output temperature drift of 0.005% of full scale per °C, ensuring consistent and stable performance in demanding environments.

FAQ;
1.What is the Honeywell CC-TCNT01 51308307-175?
The CC-TCNT01 51308307-175 is an Input Output Termination Assembly (IOTA) designed for Honeywell’s C300 Controller in the Experion LX system. It provides a secure connection point for cable terminations and power distribution to the controller.

2.What are the main functions of this IOTA?
This IOTA provides connection points for cables linked to the C300 Controller, including FTE (Fault Tolerant Ethernet), IO Link, redundancy connections, battery, and time source terminations. It also manages 24Vdc power distribution to the controller module.

3.What are the output specifications for ripple and temperature drift?
The CC-TCNT01 has an output ripple of less than 100 mV peak-to-peak at power line frequency (across a 250 Ω load) and an output temperature drift of 0.005% of full scale per °C, which helps ensure stable and accurate performance.
