The Analog Output module provides an output current range of 0ma, and 2.9 mA through 21.1 mA based on the requested Analog Output by the Series C controller.
|
|
|

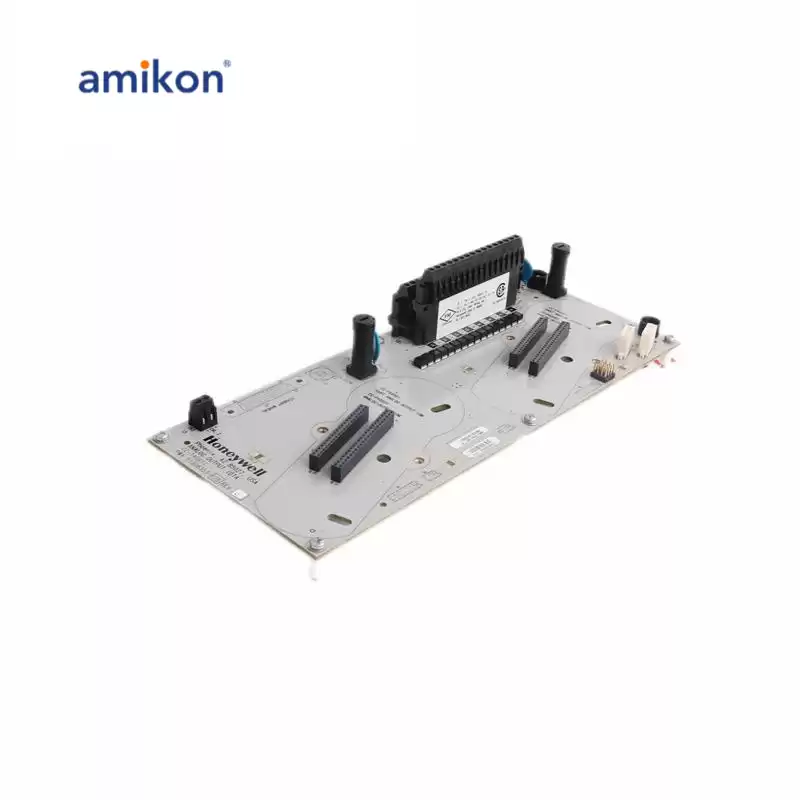

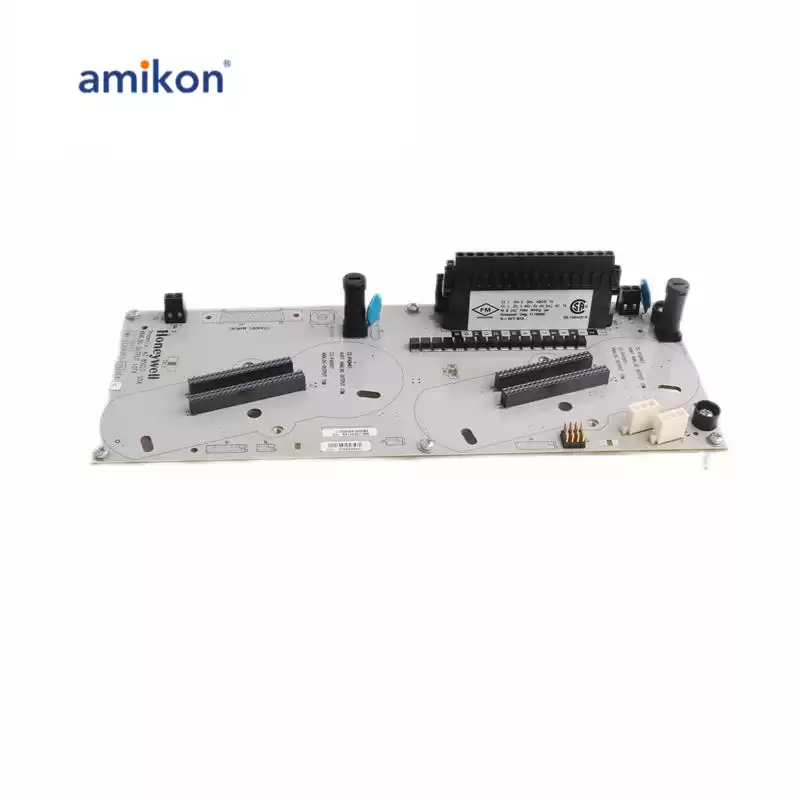

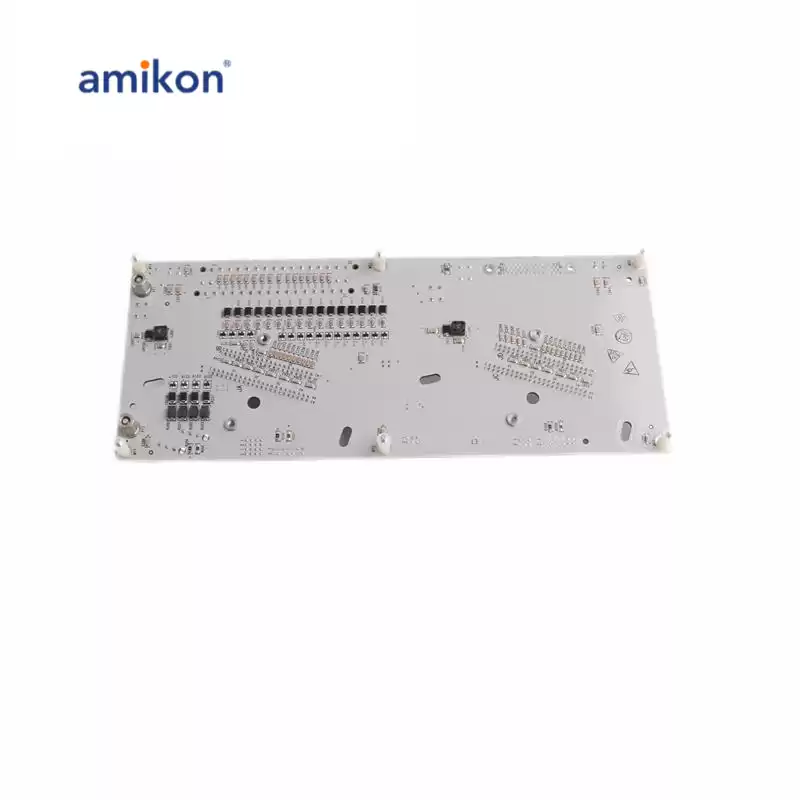

DC-TAOX11 Data sheet
|
The output current including the HART modulated signal, does not exceed 22.5mA.A +30 Vdc source can be continuously applied across the OUT+ to OUT- terminals
|
|
of the IOTA without damage to either module(s) or IOTA (i.e. with the positive lead of the source connected to OUT+ and the negative lead connected to OUT-).
|
|
To prevent damage to the IOTA surge protection diodes, the current must be limited to 500 mAdc if the source is applied in the reverse polarity
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
