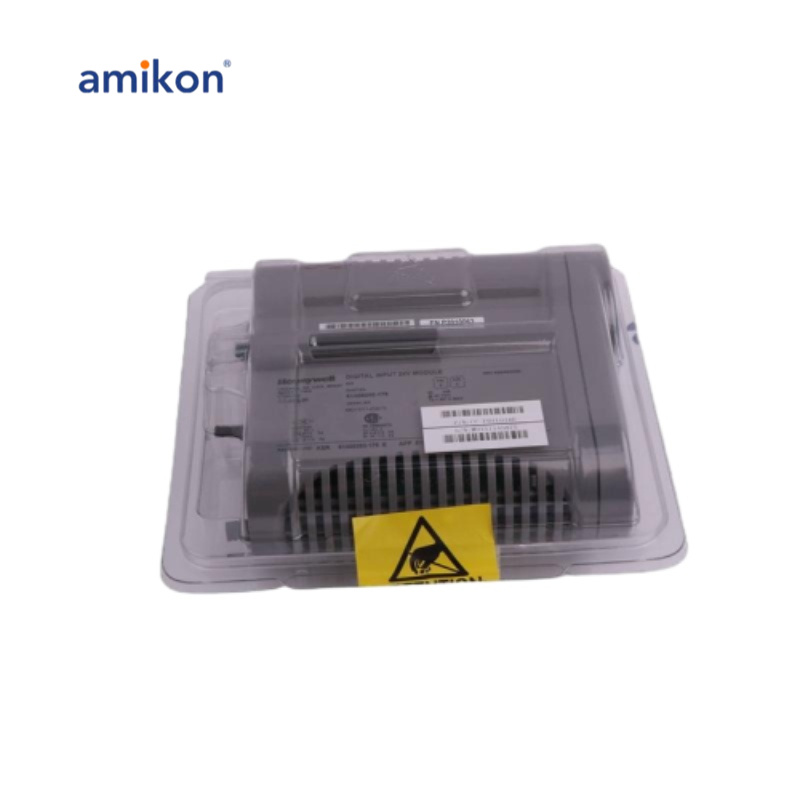

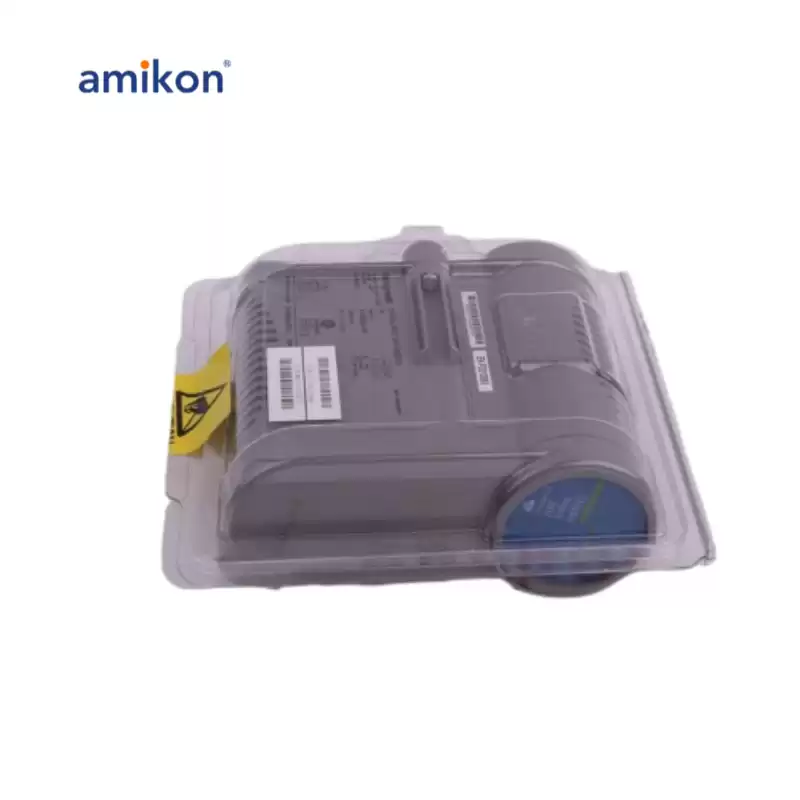

The CC-PDIL01 51405040-176 is a Digital Input Module, Control Firewall (CF9) serves as the Fault Tolerant Ethernet (FTE) communications center for a given Series C control network.
|
|
|
CC-PDIL01 51405040-176 Data sheet
|
It consists of a Control Firewall module that plugs into its associated CF9 input/output termination assembly (IOTA) as shown in the following figure.
|
|
These modules will not work as expected with earlier releases of Experion PKS.
|
|
The CF9 provides eight ports for FTE connections to C300s and Series C FIMs within a Series C cabinet as well as FTE Bridge modules (FTEB) in a Series A Chassis I/O chassis.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
