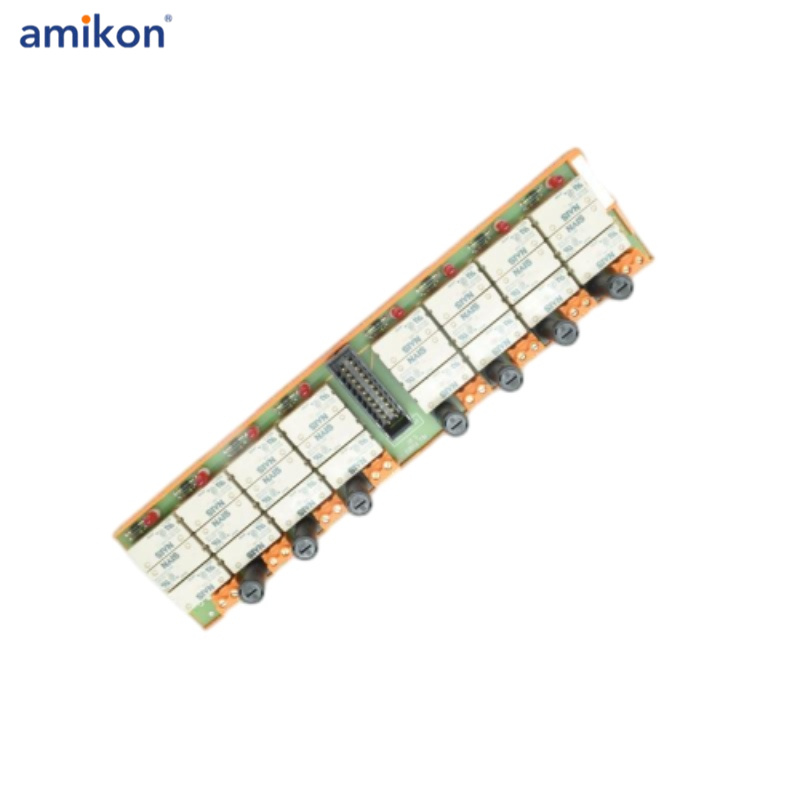

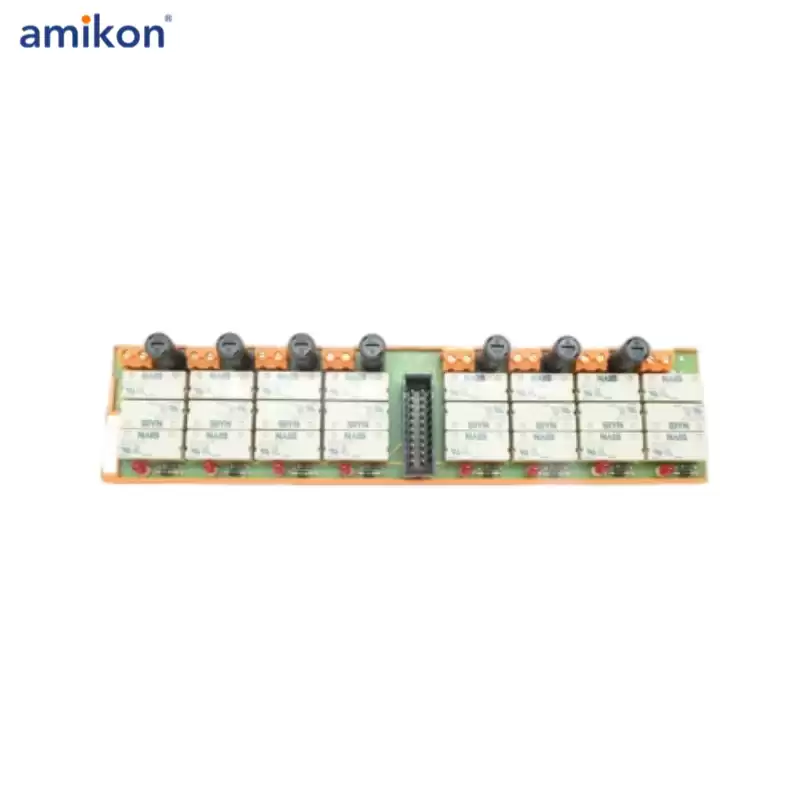

The FC-TSRO-0824 module has a 35V output circuit to power its three general purpose (14 Vdc) inputs (see Figure 166 on page 281).
|
|
|
FC-TSRO-0824 V1.1 Data sheet
|
The inputs require a contact in the field and will stay operational even if the 24 Vdc of one of the Control Processors is switched off.
|
|
The input of proximity switch signals to the SDIL-1608 module needs to be converted to a level that is suitable for the SDIL-1608 module.
|
|
The power for the connected field devices is supplied by an on-board DC/DC converter common to all sixteen channels.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
