➱FC-IOCHAS-0002R IO chassis for redundant IO module

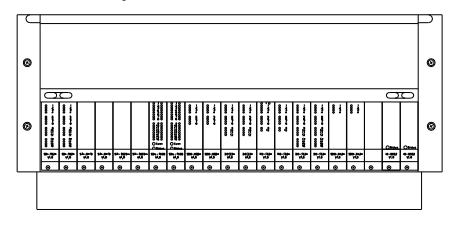

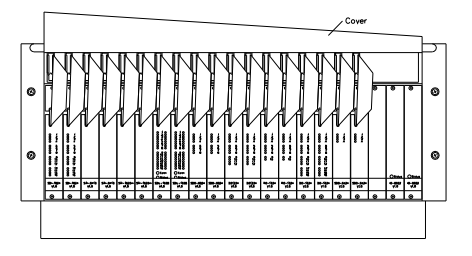

A 19" chassis has 21 slots for modules (each 4TE wide). These slots arenumbered 1 to 21, starting at the left-hand side of the chassis. In theIOCHAS-0002R, slots 1 to 18 are available for IO modules. They are configuredin pairs.Behind the blind front at slot 19, IOBUS-HB2A is located.Slot 20 and slot 21 contain the IO-0002 modules.The IOB-0002R provides the 18 IO-connectors in the middle of the chassis.The IOBUS-HB2R provides the 18 flatcable-connectors in the top of the chassis.
Type number: FC-IOCHAS-0002R
Approvals: CE; UL, CSA, TUV, FM pending
5V-1: 100 mA (IO-0002 slot 20)
5V-2: 100 mA (IO-0002 slot 21)

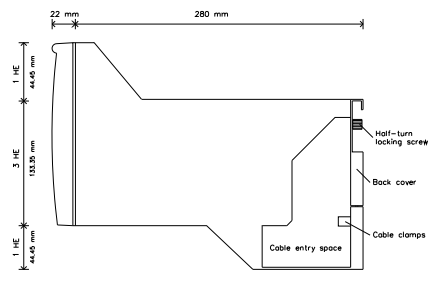

Height:
1 + 3 + 1 HE for first IO chassis4 HE for every next IO chassissee Figure 80 on page 14344.5 + 133.4 + 44.5 mm1.75 + 5.25 + 1.75 in
Width: 482.6 mm, 19in
Depth: 280 mm, 11 in
Weight: 8,7 kg, 19.2 lb
|
Manufacturers
|
Honeywell
|
Model Type
|
IO chassis for redundant IO module
|
|
Warranty
|
12 Months
|
MOQ
|
1 Piece
|
|
PackagePackage
|
100% Original
|
Payment term
|
100% advance bank wire transfer
|
|
Shipping Ways
|
DHL, UPS, Fedex, and TNT
|
Delivery time
|
1-3DAY
|
|
Inquiry response time
|
Within 1 Hour
|
Service
|
After-sales Service
|
Discounted price will be support if you buy big quantity of FC-IOCHAS-0002R
