Technical Specifications for FC-TSAI-1620M
|
Manufacturer
|
Honeywell
|
|
Condition
|
100% New Original
|
|
Brand
|
Honeywell
|
Input current
|
0—25 mA
|
|
Part Number
|
FC-TSAI-1620M
|
Input resistance
|
250 Ω (± 1%)
|
|
Product Name
|
Analog Input Module
|
Output voltage
|
0—4 Vdc
|
|
Manufacture Year
|
2021
|
Accuracy
|
0.1%
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|
About FC-TSAI-1620M
|

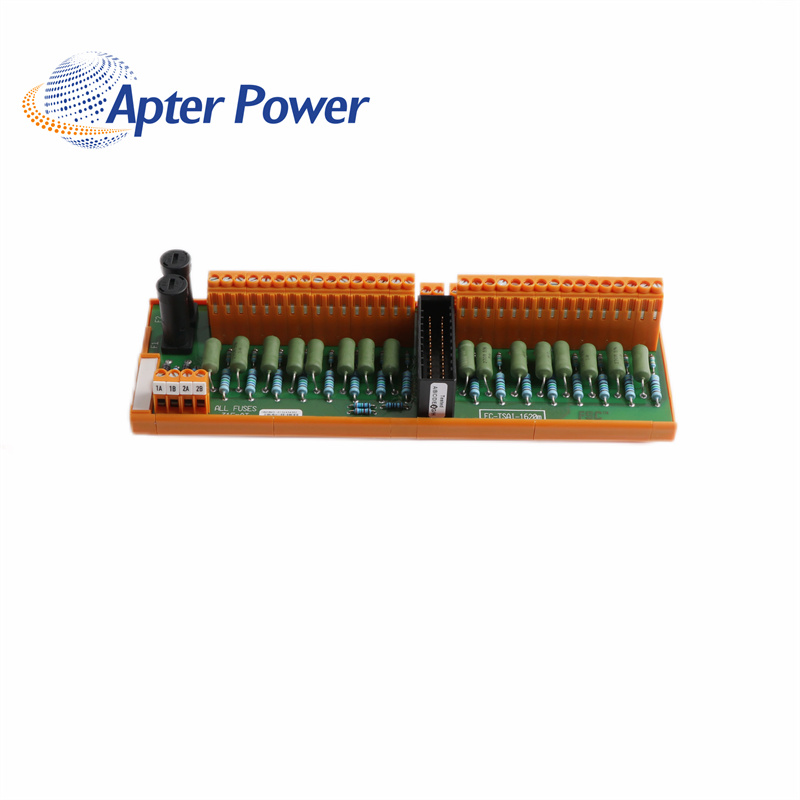

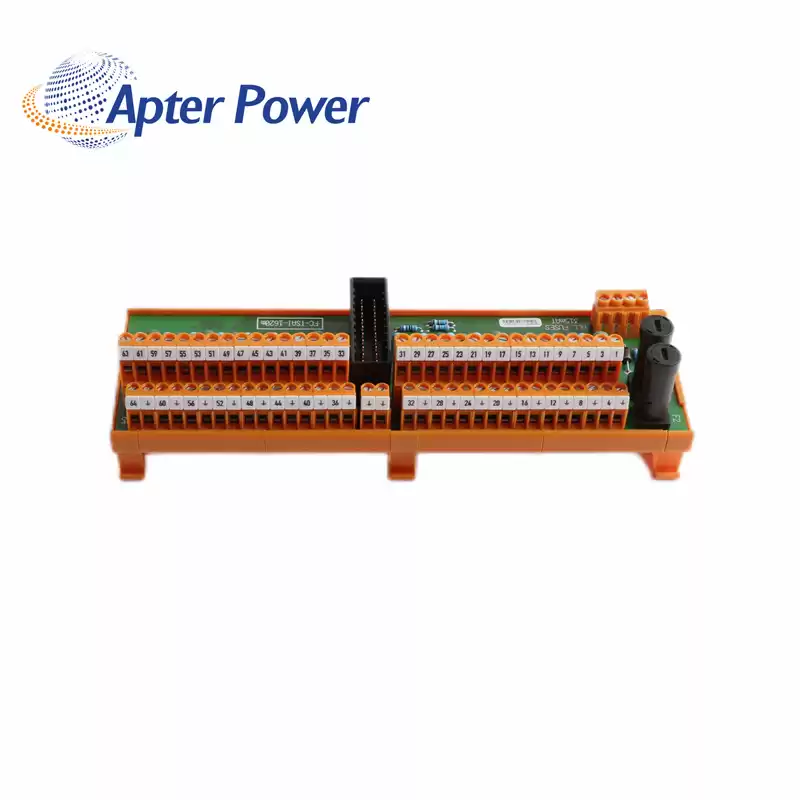

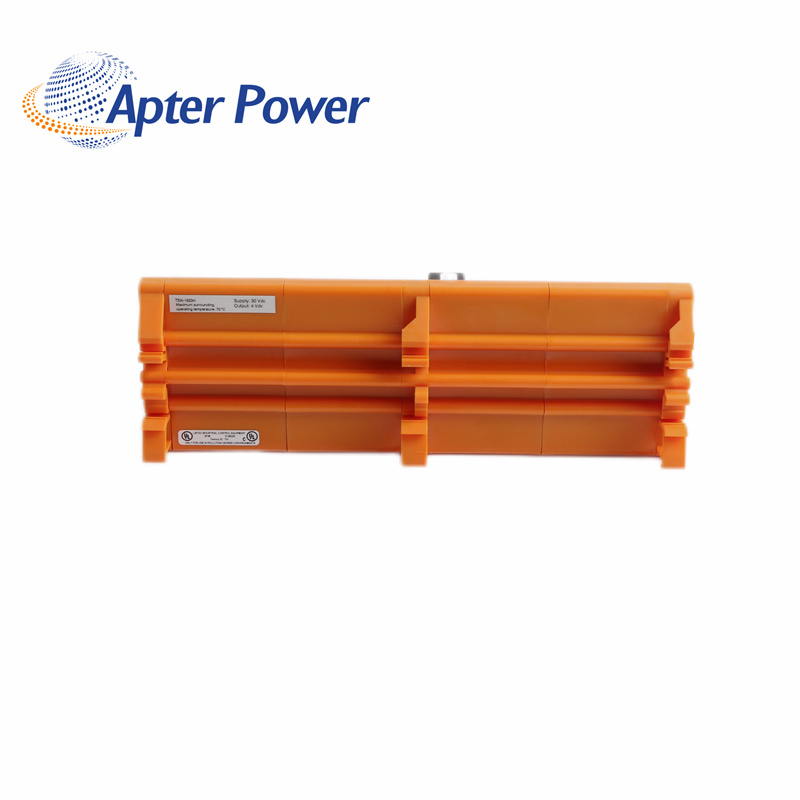

The FC-TSAI-1620M module is a Safety Analog Input Module. Field termination assembly module TSAI-1620m is the interface between field
components (such as sensors) and the safe high-density analog input module
SAI-1620m in Safety Manager. It can be used for interfacing signals from Class I,
Division 2 Hazardous Locations.The TSAI-1620m module has sixteen analog input channels, which may be used
for both safety-related and non-safety-related applications.
These sixteen
channels (separated into two groups of eight channels with common 0 V) are
connected via a system interconnection cable (SICC-0001/Lx), which is plugged
into the SIC connector on the FTA module.The FTA module has a universal snap-in provision for standard DIN EN rails, and
screw terminals for connection of power supply, ground and field wiring.
|
